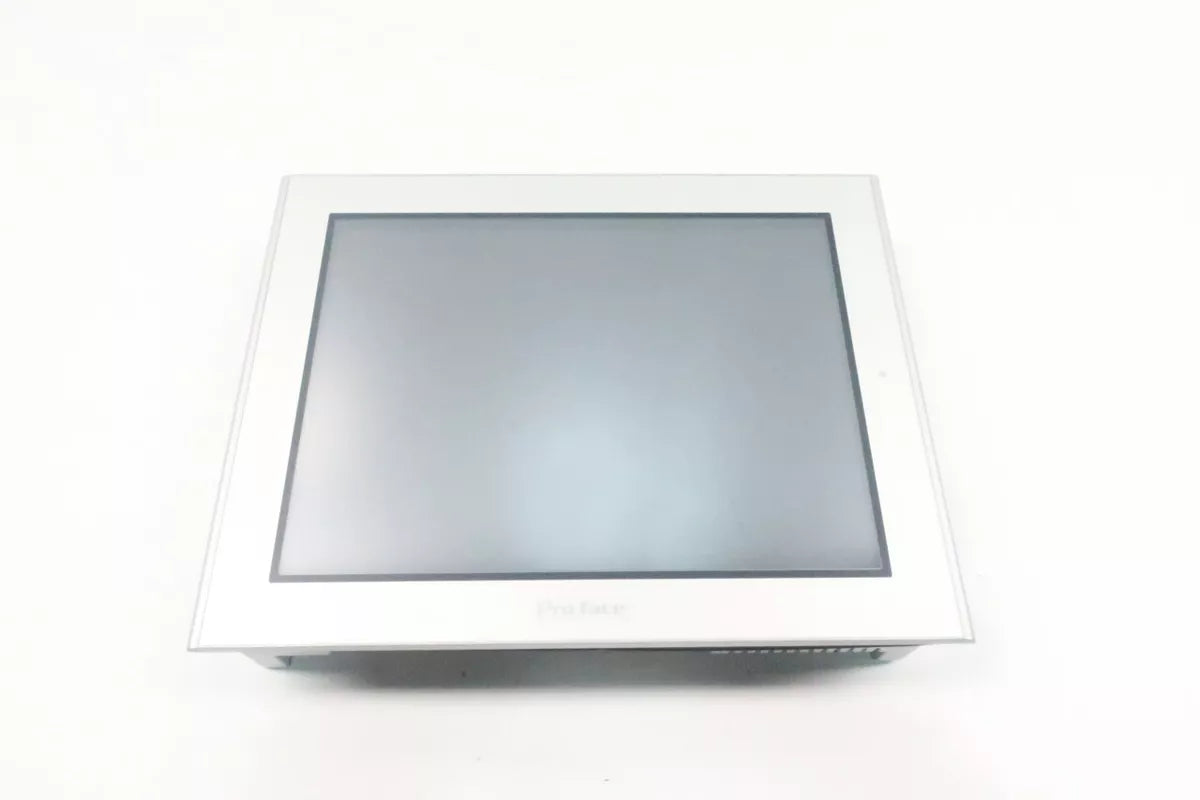

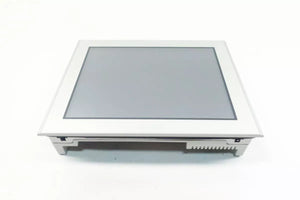

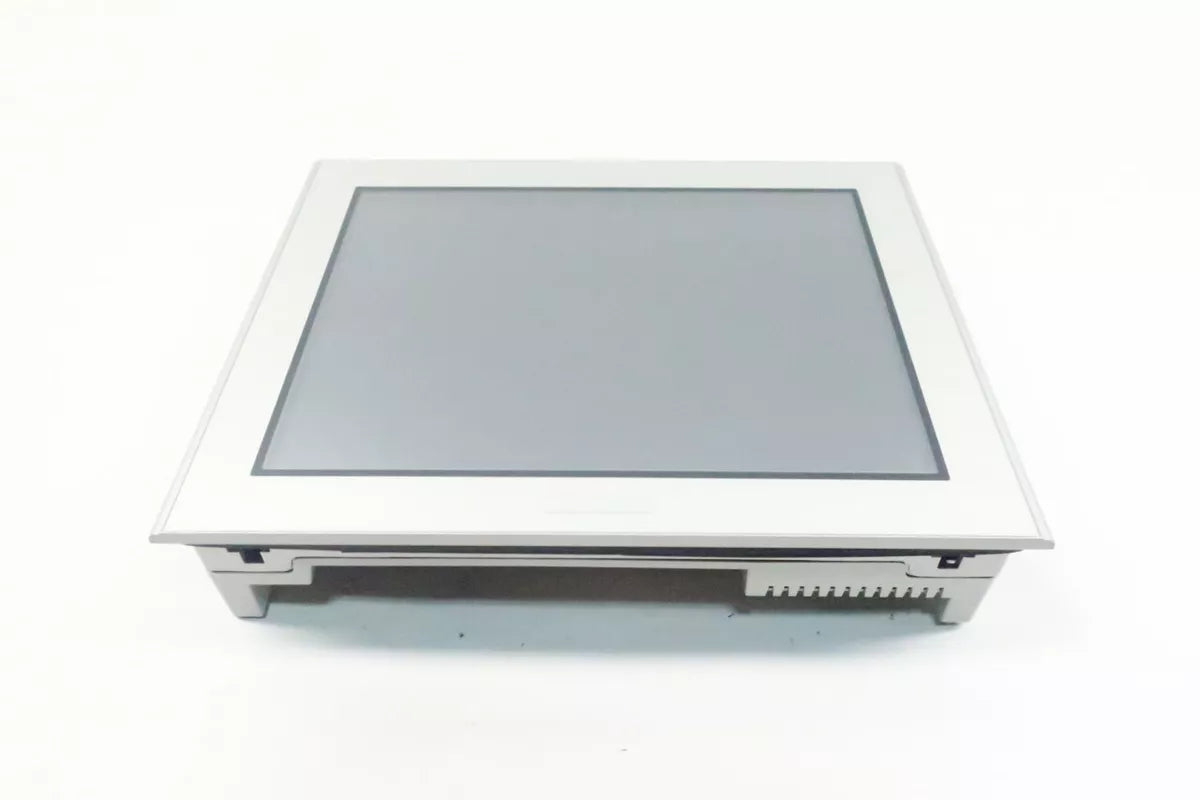

AGP3500-T1-D24-FN1M | Pro-face 10.4 inch HMI Touchscreen

Description

The Pro-face AGP3500-T1-D24-FN1M is a 10.4-inch HMI touchscreen designed for use in industrial automation. It provides a user interface for controlling and monitoring equipment and processes. The unit supports various communication protocols and offers a reliable solution for human-machine interaction.

Technical Specifications

Information About AGP3500-T1-D24-FN1M

The Pro-face AGP3500-T1-D24-FN1M is a 10.4-inch HMI (Human-Machine Interface) touchscreen designed for industrial automation applications. As part of the GP3000 series from Pro-face Xycom, this HMI offers a robust and versatile solution for operators to interact with, control, and monitor various industrial processes. It combines advanced functionality with a user-friendly interface, making it suitable for diverse environments where reliable and efficient control is required.

The AGP3500-T1-D24-FN1M features a TFT type color LCD, providing clear and vivid visual representation of data, control panels, and process diagrams. The screen resolution of 640 x 480 pixels ensures that information is displayed with sufficient clarity, enabling operators to quickly interpret and act on real-time data. This level of resolution is ideal for applications where detailed visualization of process parameters, alarms, and system statuses is necessary.

Designed as a FLEX NETWORK board type, the AGP3500-T1-D24-FN1M integrates seamlessly into industrial networks, allowing for efficient communication with other devices and systems. This capability ensures that the HMI can function as a central control and monitoring point within complex automation setups. Its network compatibility enhances data exchange and coordination across various system components, optimizing overall process efficiency.

The 10.4-inch screen size strikes a balance between providing ample display area for critical information and maintaining a compact form factor suitable for various installation environments. This size makes it practical for mounting on control panels, operator stations, or machinery, where space may be limited but effective monitoring and control are essential. The size and visibility make it suitable for operators to interact comfortably and effectively.

Powering the AGP3500-T1-D24-FN1M is a DC type power supply, which is common in industrial settings due to its stability and safety features. The DC power supply ensures that the HMI operates consistently, even in conditions where power quality may fluctuate. This type of power supply is also efficient, contributing to the overall energy efficiency of the control system. It facilitates integration into systems that are already utilizing DC power sources, simplifying the power management strategy.

The Pro-face AGP3500-T1-D24-FN1M, also identified by its alternate part number 3280035-41 and primary model number AGP-3500T-FN1M, is part of a well-regarded series known for its durability and performance. Pro-face Xycom's reputation for producing reliable HMI solutions is evident in this model's construction and functionality. Its robust design is built to withstand the typical challenges of industrial environments, such as exposure to dust, vibrations, and varying temperatures, ensuring long-term operational reliability.

The HMI’s intuitive touch interface enhances user interaction, allowing for easy navigation through menus, adjustment of settings, and initiation of commands. The touch interface reduces the need for external input devices, streamlining the operator's interaction with the system. This ease of use is critical for maintaining high productivity and minimizing training requirements, making the AGP3500-T1-D24-FN1M a valuable asset in both new installations and upgrades of existing systems.

In summary, the Pro-face AGP3500-T1-D24-FN1M is a versatile and reliable HMI solution suitable for a wide range of industrial applications. Its 10.4-inch TFT color LCD screen, FLEX NETWORK compatibility, and robust design make it an excellent choice for operators needing clear visualization and control of industrial processes. With its DC power supply, compact form factor, and high-resolution display, this HMI provides the essential features required to enhance the efficiency and effectiveness of automation systems.

Manufacturer information

Pro-face is a leading manufacturer of human-machine interface (HMI) solutions. They specialize in touchscreens, industrial PCs, and software designed for factory automation. Known for their durability and user-friendly interfaces, Pro-face products enhance operational efficiency in a wide range of industrial environments.
