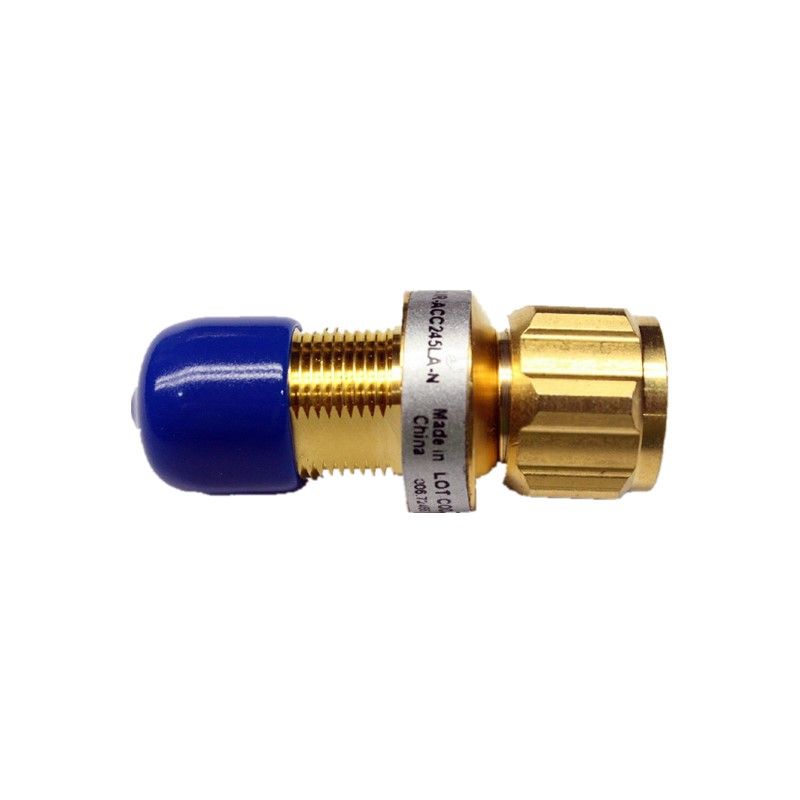

AIR-ACC245LA-N | Cisco Aironet Lightning Arrestor
- Regular price
- $92.00
- Sale price
- $92.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: AIR-ACC245LA-N
Description
The Cisco AIR-ACC245LA-N Lightning Arrestor protects sensitive networking equipment from damaging overvoltage conditions caused by lightning strikes, static discharges, or electrical surges. It is designed to minimize voltage interference and maximize the longevity of inline wireless systems.
Technical Specifications
|
Condition |
New/Never Used Surplus |
|---|---|
| Brand | Cisco |
| Category |
Wireless Accessories
|
| Part Number | AIR-ACC245LA-N |
| Subcatecory |
Lightning Arrestors
|
| Main Path Connectors | N (Female) – Unprotected N (Male) – Protected |
| Impedance | 50 ohms |
| Frequency Range | 0–6000 MHz |
| Return Loss | ≥ 15 dB |
| Insertion Loss | ≤ 0.3 dB |
| RF CW Power | ≤ 50 W |
| Surge Current Handling | 10 single / 5 multiple kA (8/20 µs) |
| Residual Pulse Energy | 250 mJ (4 kV 1.2/50 µs; 2 kA 8/20 µs) |
| Operating Temperature Range | -40°F to 185°F (-40°C to 85°C) |
| Weight | 0.1 kg (3.6 oz) |
Information About AIR-ACC245LA-N
The AIR-ACC245LA-N is a high-performance lightning arrestor developed by Cisco, designed to safeguard RF systems operating in frequency ranges up to 6000 MHz. Equipped with N-type connectors (female on the unprotected side and male on the protected side), it integrates seamlessly with Cisco Aironet wireless systems. This arrestor supports up to 50 watts of continuous wave RF power and offers a surge current handling capacity of up to 10 kA (single pulse). Its operating temperature range spans from -40°C to 85°C, making it suitable for harsh environments.
Key Features:
-
Connector Type: N-Type (female unprotected, male protected)
-
High Frequency Range: Operates from 0 to 6000 MHz for wideband protection
-
Low Insertion Loss: ≤ 0.3 dB ensures minimal signal degradation
-
High Surge Capacity: Withstands 10 kA single or 5 kA multiple pulses (8/20 µs waveform)
-
Robust Operating Temperature: From -40°F to 185°F (-40°C to 85°C)
-
Residual Energy Control: Limits pulse energy to 250 mJ (tested at 4 kV / 2 kA)
-
Compact Design: Lightweight at only 0.1 kg (3.6 oz)
The AIR-ACC245LA-N ensures high-reliability surge protection for mission-critical wireless applications, offering enhanced equipment durability and system uptime.
