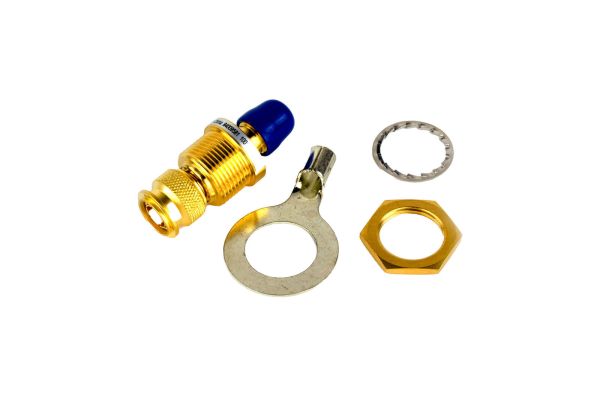

AIR-ACC245LA-R | Cisco Aironet Lightning Arrestor
- Regular price
- $94.00
- Sale price
- $94.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: AIR-ACC245LA-R
Description
The Cisco AIR-ACC245LA-R is a lightning arrestor designed for Cisco Aironet wireless LAN antennas operating at 2.4 GHz and 5 GHz frequencies.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Cisco |
| Category |
Panel Accessories
|
| Part Number | AIR-ACC245LA-R |
| Subcatecory |
Surge Arrestor/Suppressor
|
|
Main Path Connectors
|
Unprotected side: TNC-R jack (female) Protected side: TNC-R plug (male) |
|
Impedance
|
50W |
|
Frequency Range
|
0-5850 MHz |
|
Return Loss
|
Š 20 dB |
|
Insertion Loss
|
£ 0.2 dB |
|
RF CW Power
|
<= 60 W |
|
Surge Current Handling Capability
|
10 single / 5 multiple kA (test pulse 8/20 ms |
|
Residual Pulse Energy
|
250 microjoules typically (test pulse 4 kV 1.2/50 ms; 2kA 8/20 microseconds) |
|
Operating Temperature Range
|
-40°F to 185°F (-40°C to 85°C) |
|
Weight
|
0.15 lbs |
Information About AIR-ACC245LA-R
The Cisco AIR-ACC245LA-R is a lightning arrestor designed to protect Cisco Aironet wireless LAN equipment operating in the 2.4 GHz and 5 GHz frequency bands. It enhances the reliability of outdoor wireless deployments by diverting surge energy from lightning strikes away from sensitive networking devices.
Key Features:
-
Type: Lightning arrestor for 2.4 GHz and 5 GHz wireless applications
-
Supported Devices: Compatible with Cisco Aironet access points and bridges using RP-TNC connectors
-
Frequency Range: 0–5850 MHz
-
Connector Type: RP-TNC (Reverse Polarity TNC)
-
Impedance: 50 ohms
-
Surge Protection: Handles up to 10 kA (single surge) or 5 kA (multiple surges)
-
Insertion Loss: ≤ 0.2 dB
-
Return Loss: ≥ 20 dB
-
RF CW Power Handling: Up to 60 W
-
Installation Options: Supports inline and bulkhead (feed-through) mounting
-
Grounding: Ground lug included; recommended use of #6 solid copper wire
-
Form Factor: Compact external unit suitable for indoor and outdoor installations
-
Operating Environment: -40°C to 85°C operating temperature
The AIR-ACC245LA-R is essential for organizations deploying outdoor wireless networks, offering robust surge protection that helps ensure network uptime and the longevity of critical wireless infrastructure.
