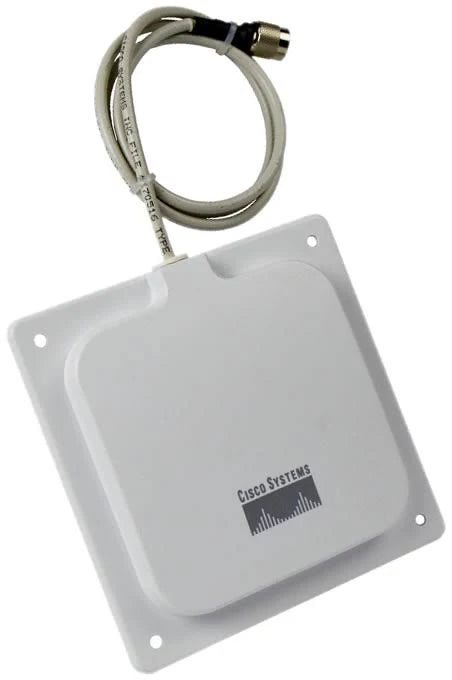

AIR-ANT2485P-R | Cisco Aironet 8.5-dBi Patch Antenna
- Regular price
- $137.00
- Sale price
- $137.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: AIR-ANT2485P-R
Description
Cisco AIR-ANT2485P-R is a high-performance 8.5-dBi patch antenna designed for 2.4 GHz wireless networking.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Cisco |
| Category |
PLCs/Machine Control
|
| Part Number | AIR-ANT2485P-R |
| Subcatecory |
PLC Module/Rack
|
| Antenna Type | Single patch |
| Operating Frequency Range | 2400 – 2484 MHz |
| Nominal Input Impedance | 50 Ohms |
| 2:1 VSWR Bandwidth | 2400–2484 MHz |
| Peak Gain | 8.5 dBi |
| Polarization | Linear, vertical |
| E-plane 3-dB Beamwidth | 56° |
| H-plane 3-dB Beamwidth | 66° |
| Front-to-back Ratio | 20 dB |
| Cross-pol Discrimination | –15 dB |
| Cable Length And Type | 36 in. (91.4 cm) Times AA-9303 or equivalent (plenum rated) |
| Connector Type | RP-TNC |
| Width | 5.3 in |
| Depth | 0.7 in |
| Height | 5.3 in |
| Weight | 1.15 lbs |
Information About AIR-ANT2485P-R
The AIR-ANT2485P-R is a high-performance patch antenna designed for Cisco Aironet access points. It delivers focused directional coverage and enhanced signal strength, making it ideal for targeted wireless deployments in enterprise, warehouse, and outdoor environments.
Key Features:
-
Type: Directional Patch Antenna
-
Frequency Range: 2.4 GHz (2400–2500 MHz)
-
Gain: 8.5 dBi for extended range and improved performance
-
Polarization: Linear
-
Beamwidth: 35° (both azimuth and elevation)
-
Connector: RP-TNC with attached 36-inch (91 cm) low-loss cable
-
Compatibility: Cisco Aironet access points with external antenna support
-
Installation: Includes mounting hardware for flexible deployment
-
Durability: Weather-resistant for indoor and outdoor use
-
Operating Temperature: -40°C to 65°C (-40°F to 149°F)
-
Compliance: Meets Cisco and industry standards for reliability and performance
The AIR-ANT2485P-R enhances wireless coverage and network efficiency by providing high-gain, directional signal propagation, essential for applications requiring focused coverage and minimal interference.
