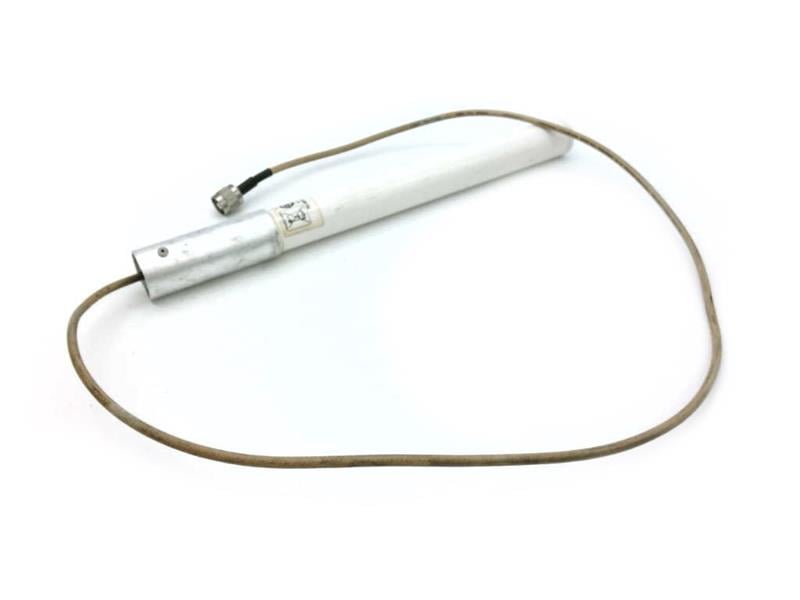

AIR-ANT2506 | Cisco Aironet Omnidirectional Antenna
- Regular price
- $67.00
- Sale price
- $67.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: AIR-ANT2506
Description
The Cisco AIR-ANT2506 is a 2.4 GHz omnidirectional antenna designed for Cisco Aironet access points and bridges, providing 5.2 dBi gain for extended wireless coverage in indoor and outdoor environments.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Cisco |
| Category |
RF
|
| Part Number | AIR-ANT2506 |
| Subcatecory |
Antenna
|
|
Antenna Type
|
Dipole |
|
Operating Frequency Range
|
2.4- to 2.84-GHz |
|
Environment
|
Indoor/outdoor |
|
Nominal Input Impedance
|
50 Ohms |
|
VSWR
|
Less than 2:1, 1.5:1 nominal |
|
Gain
|
5.2 dBi |
|
Polarization
|
Linear, vertical |
|
E-Plane (3dB bandwidth)
|
36 degrees |
|
H-Plane (3dB bandwidth)
|
Omnidirectional |
|
Cable Length And Type
|
3 ft. (0.91 m) RG-58 |
|
Dimensions (H x W)
|
11.5 in x 1.125 in. |
|
Mounting
|
Mast, 2 in (5.08 cm) maximum |
|
Operating Temperature Range
|
-30° to 70° C (-22° to 158° F) |
|
Weight
|
0.25 lbs |
Information About AIR-ANT2506
The Cisco AIR-ANT2506 is a 2.4 GHz omnidirectional antenna designed to enhance wireless coverage for Cisco Aironet access points and bridges. It delivers 5.2 dBi of gain and supports point-to-multipoint deployments in both indoor and outdoor environments.
Key Features:
- Type: Omnidirectional Dipole Antenna
- Frequency Range: 2.4 – 2.5 GHz (802.11b/g/n)
- Gain: 5.2 dBi
- Polarization: Vertical
- Radiation Pattern: Omnidirectional (360° horizontal)
- Connector Type: RP-TNC plug
- Cable Length: 36 in. (91.4 cm) integrated cable
- Maximum Input Power: 10 watts
- VSWR: Less than 2:1
- Installation Options: Wall mount; Mast mount (hardware included)
- Environmental Suitability: Indoor and outdoor rated
The AIR-ANT2506 is ideal for extending wireless LAN coverage in campus, warehouse, or outdoor settings, providing reliable omnidirectional signal distribution with Cisco access points and bridges.
