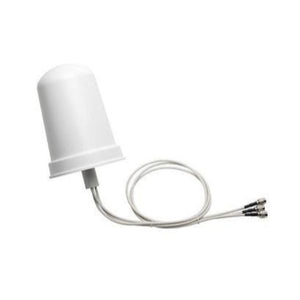

AIR-ANT2544V4M-R | Cisco Aironet Dual-Band MIMO Wall-Mounted Omnidirectional Antenna
- Regular price
- $129.00
- Sale price
- $129.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: AIR-ANT2544V4M-R
Description
The Cisco AIR-ANT2544V4M-R is a dual-band, 4-element omnidirectional antenna designed to enhance wireless coverage and performance in indoor and outdoor environments. It supports both the 2.4 GHz and 5 GHz frequency bands, ensuring optimal signal strength and reliability for Cisco Aironet access points.
Technical Specifications
|
Condition |
New/Never Used Surplus |
|---|---|
| Brand | Cisco |
|
Category |
Radio Frequency Identification (RFID)
|
|
Part Number |
AIR-ANT2544V4M-R |
| Subcatecory |
Radio Frequency Antennas
|
| Antenna Type | 4-Element MIMO Omnidirectional |
| Operating Frequency Range | 2400–2484 MHz / 5150–5850 MHz |
| Nominal Input Impedance | 50 Ohms |
| Peak Gain (2.4 GHz) | 4 dBi |
| Peak Gain (5 GHz) | 4 dBi |
| Polarization |
Linear, Vertical |
| Cable Length | 3 ft (0.91 m) |
| Connector Type | RP-TNC |
| Mounting Option | Wall-Mountable |
| Length | 8.6 in (21.8 cm) |
| Diameter | 6.3 in (16 cm) |
Information About AIR-ANT2544V4M-R
The AIR-ANT2544V4M-R is engineered for use with MIMO (Multiple-Input, Multiple-Output) technology, improving network capacity and data throughput. With a 50 Ohm nominal impedance and VSWR of 2:1 or less, this antenna ensures efficient power transmission and minimal signal loss. Its RP-TNC connector and 3-foot cables provide flexible installation options for wall mounting.
Key Features:
-
Dual-Band Operation: Supports both the 2.4 GHz (2400–2484 MHz) and 5 GHz (5150–5850 MHz) frequency ranges for maximum flexibility.
-
4-Element Omnidirectional Design: Ensures uniform coverage in all directions, ideal for multi-user environments.
-
Peak Gain: Delivers 4 dBi gain in both the 2.4 GHz and 5 GHz bands for improved signal strength.
-
Linear Vertical Polarization: Ensures stable signal propagation for consistent connectivity.
-
VSWR ≤ 2:1: Reduces signal reflection and enhances transmission efficiency.
-
3-Foot Cables with RP-TNC Connector: Provides easy connectivity with compatible Cisco access points.
-
Robust Construction: Designed for reliable performance in demanding indoor and outdoor environments.
The Cisco AIR-ANT2544V4M-R is ideal for applications requiring enhanced Wi-Fi coverage, including retail spaces, warehouses, campuses, and offices.
