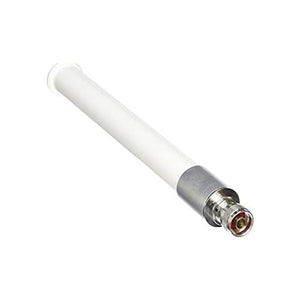

AIR-ANT2547V-N | Cisco Aironet Dual Band Omni Directional Antenna

Description

The Cisco AIR-ANT2547V-N is a dual-band omni-directional antenna designed for use with Cisco Aironet access points. It operates on both the 2.4 GHz and 5 GHz bands, providing 4 dBi gain at 2.4 GHz and 7 dBi gain at 5 GHz.

Technical Specifications

Information About AIR-ANT2547V-N

The Cisco AIR-ANT2547V-N is a dual-band, omni-directional antenna engineered for outdoor deployment with Cisco Aironet Outdoor Access Points, particularly the Cisco Aironet 1550 Series. It supports both the 2.4 GHz and 5 GHz frequency bands, delivering reliable wireless coverage in various environments.

Key Features:

• Antenna Type: Omni-directional colinear array

• Operating Frequency Range: 2400–2483 MHz and 5150–5875 MHz

• VSWR Bandwidth: 2:1 across both frequency ranges

• Nominal Input Impedance: 50 Ohms

• Gain:

  • 4 dBi at 2.4 GHz

  • 7 dBi at 5 GHz

• Polarization: Linear

• E-plane 3-dB Beamwidth:

  • 30° at 2.4 GHz

  • 14° at 5 GHz

• H-plane 3-dB Bandwidth: Omni-directional

• Connector Type: N-Male

• Operating Temperature Range: -40°F to 185°F (-40°C to 85°C)

• Ingress Protection: IP66 and IP67 rated, ensuring protection against dust and water ingress

• Wind Ratings:

  • Operational: Up to 100 mph (161 kph)

  • Survival: Up to 165 mph (265 kph)

By adhering to these guidelines and specifications, the Cisco AIR-ANT2547V-N antenna can significantly enhance the wireless capabilities of outdoor networks, providing robust and reliable connectivity across diverse environments.
