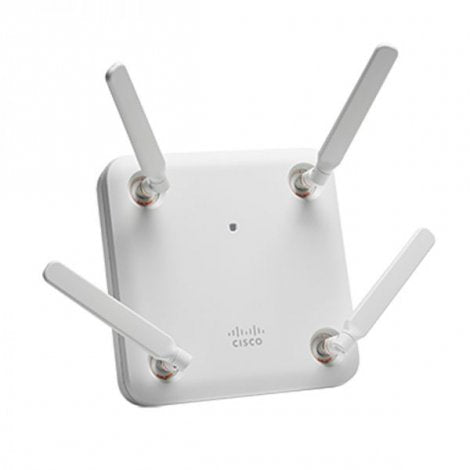

AIR-AP1852E-H-K9 | Cisco Aironet 1852E Series Access Point
- Regular price
- $1,451.00
- Sale price
- $1,451.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: AIR-AP1852E-H-K9
Description
The Cisco Aironet 1852E-H-K9 is a dual-band, enterprise-class 802.11ac Wave 2 access point designed to deliver high performance in high-density environments.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Cisco |
| Category |
Networking Hardware
|
| Part Number | AIR-AP1852E-H-K9 |
| Subcatecory |
Wireless Access Points / Enterprise Wi-Fi Solutions
|
| Description | 802.11ac Wave 2 Access Point, 4x4:4, External-Ant, H Regulatory Domain |
| Features |
- 4x4 MIMO with four spatial streams, single-user MIMO - 4x4 MIMO with three spatial streams, multiuser MIMO - MRC - 802.11ac beamforming (transmit beamforming) - 20-, 40-, and 80-MHz channels - PHY data rates up to 1.7 Gbps (80 MHz in 5 GHz) - Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) - 802.11 DFS - CSD support |
| Regulatory Domain |
H (H regulatory domain): - 2.412 to 2.472 GHz; 3 channels - 5.150 to 5.350 GHz; 8 channels - 5.745 to 5.825 GHz; 5 channels |
| Antenna |
External Antenna
|
| Interfaces |
- 1 x 10/100/1000BASE-T autosensing (RJ-45), Power over Ethernet (PoE) - 1 x 10/100/1000BASE-T autosensing (RJ-45), AUX (used for Link Aggregation) - Management console port (RJ-45) - USB 2.0 (enabled via future software) |
| System Memory |
1 GB DRAM
256 MB flash |
| Input Power Requirements |
AP1850: 44 to 57 VDC
Power supply and power injector: 100 to 240 VAC; 50 to 60 Hz |
| Power Draw |
20.9W
|
| Nonoperating (storage) Temperature |
-22° to 158°F (-30° to 70°C)
|
| Nonoperating (storage) Altitude Test |
25˚C, 15,000 ft.
|
| Operating Temperature |
32° to 104°F (0° to 40°C)
|
| Operating Humidity |
10% to 90% (noncondensing)
|
| Operating Altitude Test |
40˚C, 9843 ft.
|
| Dimensions (W x L x H) |
8.3 x 8.3 x 2 in. (210.8 x 210.8 x 50.8 mm)
|
| Weight |
3.12 lbs
|
Information About AIR-AP1852E-H-K9
The Cisco AIR-AP1852E-H-K9 is a high-performance dual-band 802.11ac Wave 2 wireless access point, designed to meet the growing demands of mid-sized enterprise networks. Part of the Cisco Aironet 1850 Series, this model features external antenna connectors for deployment flexibility and is ideal for high-density environments such as offices, classrooms, and hospitals. It delivers reliable, high-speed wireless connectivity with support for multiple spatial streams, MU-MIMO, and advanced RF management, while integrating seamlessly with Cisco wireless LAN controllers.
Key Features:
-
Wireless Standard: Dual-band 802.11ac Wave 2 with MU-MIMO
-
MIMO Configuration: 4x4 MIMO with 4 spatial streams (5 GHz), 3x4 MIMO (2.4 GHz)
-
Data Rate: Up to 1.7 Gbps (5 GHz); aggregate throughput up to 2 Gbps
-
Antenna Support: External antennas (required), certified up to 6 dBi gain
-
PoE Support: 802.3at Power over Ethernet (PoE+) compatible
-
Ports: 1x Gigabit Ethernet uplink (PoE), 1x Gigabit AUX, 1x console, 1x USB 2.0
-
Deployment Modes: Centralized, FlexConnect, Mesh, Monitor, Sniffer, OfficeExtend
-
Security Features: WPA2, 802.1X, AES encryption, rogue detection
-
Management: Cisco WLC (wireless LAN controller), Prime Infrastructure
-
Power Consumption: 20.9W typical
-
Form Factor: Low-profile indoor access point with external antennas
-
Operating Range: -20°C to 50°C; 10% to 90% humidity (non-condensing)
This access point is ideal for businesses seeking robust wireless performance, flexible antenna configuration, and seamless integration with Cisco controller-based infrastructures.
Description
The Cisco Aironet 1852E-H-K9 is a dual-band, enterprise-class 802.11ac Wave 2 access point designed to deliver high performance in high-density environments.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Cisco |
| Category |
Networking Hardware
|
| Part Number | AIR-AP1852E-H-K9 |
| Subcatecory |
Wireless Access Points / Enterprise Wi-Fi Solutions
|
| Description | 802.11ac Wave 2 Access Point, 4x4:4, External-Ant, H Regulatory Domain |
| Features |
- 4x4 MIMO with four spatial streams, single-user MIMO - 4x4 MIMO with three spatial streams, multiuser MIMO - MRC - 802.11ac beamforming (transmit beamforming) - 20-, 40-, and 80-MHz channels - PHY data rates up to 1.7 Gbps (80 MHz in 5 GHz) - Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) - 802.11 DFS - CSD support |
| Regulatory Domain |
H (H regulatory domain): - 2.412 to 2.472 GHz; 3 channels - 5.150 to 5.350 GHz; 8 channels - 5.745 to 5.825 GHz; 5 channels |
| Antenna |
External Antenna
|
| Interfaces |
- 1 x 10/100/1000BASE-T autosensing (RJ-45), Power over Ethernet (PoE) - 1 x 10/100/1000BASE-T autosensing (RJ-45), AUX (used for Link Aggregation) - Management console port (RJ-45) - USB 2.0 (enabled via future software) |
| System Memory |
1 GB DRAM
256 MB flash |
| Input Power Requirements |
AP1850: 44 to 57 VDC
Power supply and power injector: 100 to 240 VAC; 50 to 60 Hz |
| Power Draw |
20.9W
|
| Nonoperating (storage) Temperature |
-22° to 158°F (-30° to 70°C)
|
| Nonoperating (storage) Altitude Test |
25˚C, 15,000 ft.
|
| Operating Temperature |
32° to 104°F (0° to 40°C)
|
| Operating Humidity |
10% to 90% (noncondensing)
|
| Operating Altitude Test |
40˚C, 9843 ft.
|
| Dimensions (W x L x H) |
8.3 x 8.3 x 2 in. (210.8 x 210.8 x 50.8 mm)
|
| Weight |
3.12 lbs
|
Information About AIR-AP1852E-H-K9
The Cisco AIR-AP1852E-H-K9 is a high-performance dual-band 802.11ac Wave 2 wireless access point, designed to meet the growing demands of mid-sized enterprise networks. Part of the Cisco Aironet 1850 Series, this model features external antenna connectors for deployment flexibility and is ideal for high-density environments such as offices, classrooms, and hospitals. It delivers reliable, high-speed wireless connectivity with support for multiple spatial streams, MU-MIMO, and advanced RF management, while integrating seamlessly with Cisco wireless LAN controllers.
Key Features:
-
Wireless Standard: Dual-band 802.11ac Wave 2 with MU-MIMO
-
MIMO Configuration: 4x4 MIMO with 4 spatial streams (5 GHz), 3x4 MIMO (2.4 GHz)
-
Data Rate: Up to 1.7 Gbps (5 GHz); aggregate throughput up to 2 Gbps
-
Antenna Support: External antennas (required), certified up to 6 dBi gain
-
PoE Support: 802.3at Power over Ethernet (PoE+) compatible
-
Ports: 1x Gigabit Ethernet uplink (PoE), 1x Gigabit AUX, 1x console, 1x USB 2.0
-
Deployment Modes: Centralized, FlexConnect, Mesh, Monitor, Sniffer, OfficeExtend
-
Security Features: WPA2, 802.1X, AES encryption, rogue detection
-
Management: Cisco WLC (wireless LAN controller), Prime Infrastructure
-
Power Consumption: 20.9W typical
-
Form Factor: Low-profile indoor access point with external antennas
-
Operating Range: -20°C to 50°C; 10% to 90% humidity (non-condensing)
This access point is ideal for businesses seeking robust wireless performance, flexible antenna configuration, and seamless integration with Cisco controller-based infrastructures.
