AIR-CAP2702E-A-K9 | Cisco Wireless Access Point

Description

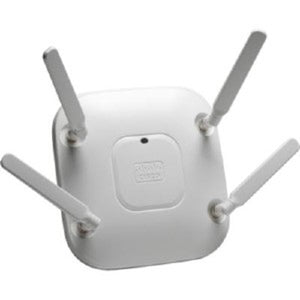

The Cisco AIR-CAP2702E-A-K9 is a dual-band 802.11a/g/n/ac wireless access point from the Cisco Aironet 2700 Series, designed for high-performance indoor wireless networks.

Technical Specifications

Information About AIR-CAP2702E-A-K9

The Cisco AIR-CAP2702E-A-K9 is part of the Aironet 2700 Series, designed to deliver high-performance, enterprise-class wireless networking. It supports the 802.11ac Wave 1 standard, providing significantly improved throughput and scalability for wireless networks.

Key Features:

• Wi-Fi Standard: 802.11a/b/g/n/ac (Wave 1)

• Radios: Dual-band (2.4 GHz and 5 GHz)

• Antenna Type: External antennas (model “E”) – allows custom coverage with separately purchased antennas

• MIMO: 3x4 Multiple Input, Multiple Output (MIMO) with 3 spatial streams

• Data Rates:

  • Up to 450 Mbps on 2.4 GHz

  • Up to 1.3 Gbps on 5 GHz

• Ports:

  • One 10/100/1000BASE-T (RJ-45) Ethernet port with PoE

  • One console port

• High-density client environments: Optimized for schools, offices, and enterprise environments with high user density

• Security: Supports Cisco CleanAir technology, rogue detection, and integrated WIDS/WIPS

• Controller-based deployment: Requires a Cisco Wireless LAN Controller (WLC)

• Power: Supports 802.3af Power over Ethernet (PoE), but 802.3at (PoE+) recommended for full 802.11ac performance
