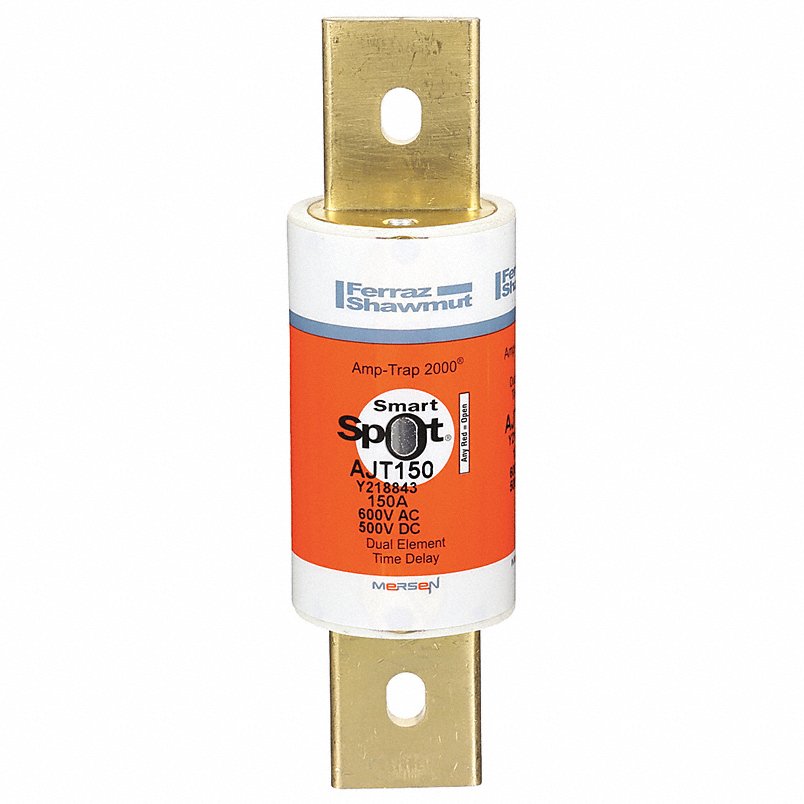

AJT150 | Mersen / Ferraz Shawmut 150 Amp 600 VAC Amp-Trap 2000 Class J Fuse
- Regular price
- $67.00
- Sale price
- $67.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: AJT150
Description
The Mersen AJT150 is a 150A Class J time-delay fuse with SmartSpot® visual indication, designed to protect industrial circuits from overcurrent events. Its compact blade-style body, high interrupting capacity, and dual-element construction make it ideal for motor and transformer protection.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Mersen / Ferraz Shawmut |
| Category |
Panel Accessories
|
| Part Number | AJT150 |
| Subcatecory |
Fuse
|
| Series | Amp-Trap 2000® AJT Series |
| Current Rating | 150 Amps |
| Voltage Rating (AC) | 600 V AC |
| Voltage Rating (DC) | 500 V DC |
| Interrupt Rating (AC) | 200 kA @ 600 V AC |
| Interrupt Rating (DC) | 100 kA @ 500 V DC |
| Body Style | Blade |
| Fuse Size | 5-3/4 in L x 1-5/8 in Dia |
| Mounting | Clip |
| Indication System | SmartSpot® |
| Body Material | Melamine/Fiberglass |
| Terminal Type | Tin-Plated Copper, Ferrule |
| Element Type | Dual |
| Standards | UL 248-8, CSA C22.2 No. 248.8, IEC 60269-2-1 |
| Compliance | UL Listed, CSA Certified, RoHS Compliant |
| Environmental Use | NEC Class I Div. 2 (non-indicating version) |
| Compatible Fuse Blocks | JFB, SJ, US3J, US5J |
| Equivalent Series | Bussmann LPJ, Littelfuse JTD, Mersen AJT |
| Country of Origin | Mexico |
| Weight | 0.2 lb (90.7 g) |
Information About AJT150
The AJT150 is part of the Mersen Amp-Trap 2000® AJT Series, offering time-delay circuit protection up to 600 V AC and 500 V DC. With a SmartSpot® indicator for quick identification of blown fuses, the AJT150 ensures maximum uptime and faster maintenance. Its dual-element design handles inrush currents while limiting let-through energy, making it suitable for motor loads, transformers, and other inductive circuits. Built with a melamine fiberglass-reinforced body and tin-plated copper terminals, it meets UL, CSA, and IEC standards and is compatible with non-rejection Class J fuse blocks such as JFB, SJ, US3J, and US5
Key Features:
- Time-Delay Performance: Designed to manage temporary inrush without nuisance tripping.
- SmartSpot® Indication: Visual fuse status indicator improves maintenance efficiency.
- Dual-Element Construction: Supports both short-circuit and overload protection.
- High Interrupt Ratings: Rated 200kA at 600V AC and 100kA at 500V DC for robust fault handling.
- Compact Blade Design: 5-3/4" length requires less panel space compared to Class RK fuses.
- Melamine Body Material: Offers high thermal and dimensional stability under harsh conditions.
- Hazardous Location Compatibility: Suitable for use in NEC Class I Div. 2 environments.
- Arc Flash Reduction: Recommended for systems requiring minimized arc energy exposure.
- Permanent Traceability: Metal-embossed date and catalog marking for lifecycle management.
- Easy Selectivity Coordination: Supports 2:1 ratio for preventing upstream fuse tripping.
The AJT150 offers rugged time-delay performance, fast fault clearing, and easy blown fuse identification for industrial circuit protection.
