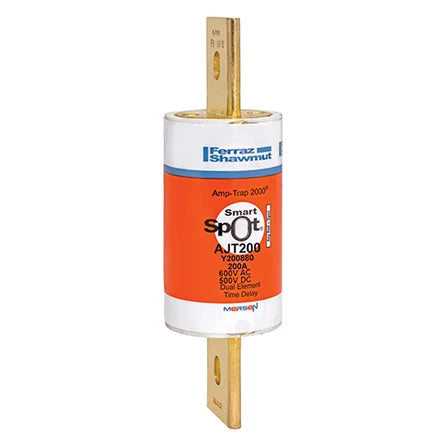

AJT200 | Mersen / Ferraz Shawmut 600V 200A Class J Time Delay Fuse 3/Pack
- Regular price
- $67.00
- Sale price
- $67.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: AJT200
Description
The Mersen AJT200 is a 30A Class J time-delay fuse featuring SmartSpot® visual indication and dual-element protection. Designed for use in demanding motor and transformer circuits, it offers high interrupt ratings and extreme current-limiting capability in a compact cylindrical body.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Mersen / Ferraz Shawmut |
| Category |
Panel Accessories
|
| Part Number | AJT200 |
| Subcatecory |
Fuse
|
| Series | Amp-Trap 2000® AJT Series |
| Current Rating | 30 Amps |
| Voltage Rating (AC) | 600 V AC |
| Voltage Rating (DC) | 500 V DC |
| Interrupt Rating (AC) | 200 kA @ 600 V AC |
| Interrupt Rating (DC) | 100 kA @ 500 V DC |
| Body Style | Cylindrical |
| Dimensions | 2-1/4 in (L) x 13/16 in (Dia) |
| Mounting | Clip |
| Terminal Type | Ferrule, Tin-Plated Copper |
| Body Material | Melamine (GMG insulation) |
| Indication System | SmartSpot® |
| Element Type | Dual |
| Frequency | 50/60 Hz |
| Standards | UL 248-8, CSA C22.2 No. 248.8, IEC 60269-2-1 |
| Compliance | UL Listed, CSA Certified, RoHS Compliant |
| Compatible Fuse Blocks | JFB, SJ, US3J, US5J |
| Equivalent to |
Bussmann LPJ, Littelfuse JTD |
| Weight | 0.2 lb (90.7 g) |
Information About AJT200
The AJT200 is a member of the Mersen Amp-Trap 2000® AJT Series, designed to deliver reliable circuit protection with time-delay functionality. This fuse supports both AC and DC systems—rated at 600V AC and 500V DC—and is UL Listed and CSA Certified. Its cylindrical melamine body houses a dual-element design for handling motor starting surges and transformer inrush currents. Compatible with various fuse block series like JFB, SJ, US3J, and US5J, the AJT200 is engineered for quick identification with a SmartSpot® indicator and embossed catalog markings.
Key Features:
- Time-Delay Dual-Element Design: Handles temporary inrush current from motors and transformers without nuisance tripping.
- SmartSpot® Visual Indication: Provides clear fuse status at a glance to reduce troubleshooting time.
- High Interrupting Rating: 200kA at 600V AC and 100kA at 500V DC for enhanced circuit protection.
- Extremely Current Limiting: Minimizes let-through current, protecting downstream components.
- Class J Non-Rejection Fuse: Prevents incorrect fuse substitution through unique dimensions.
- Compact Cylindrical Body: Small footprint allows flexible installation and economical panel layouts.
- Global Standards Compliance: UL listed (UL248-8), CSA certified (C22.2 No. 248.8), and RoHS compliant.
- Reliable Connection Type: Ferrule-style tin-plated copper terminals ensure solid clip-mounted contact.
- Marine and Automotive Approval: Recognized by American Bureau of Shipping and meets key automotive specs.
- Wide Compatibility: Functionally equivalent to Bussmann LPJ and Littelfuse JTD series fuses.
The AJT200 delivers the reliability, current limitation, and clear fault indication required for mission-critical industrial and commercial electrical systems.
