AL100FA | Schneider Electric Circuit Breaker Accessory
- Regular price
- $45.00
- Sale price
- $45.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: AL100FA
Description

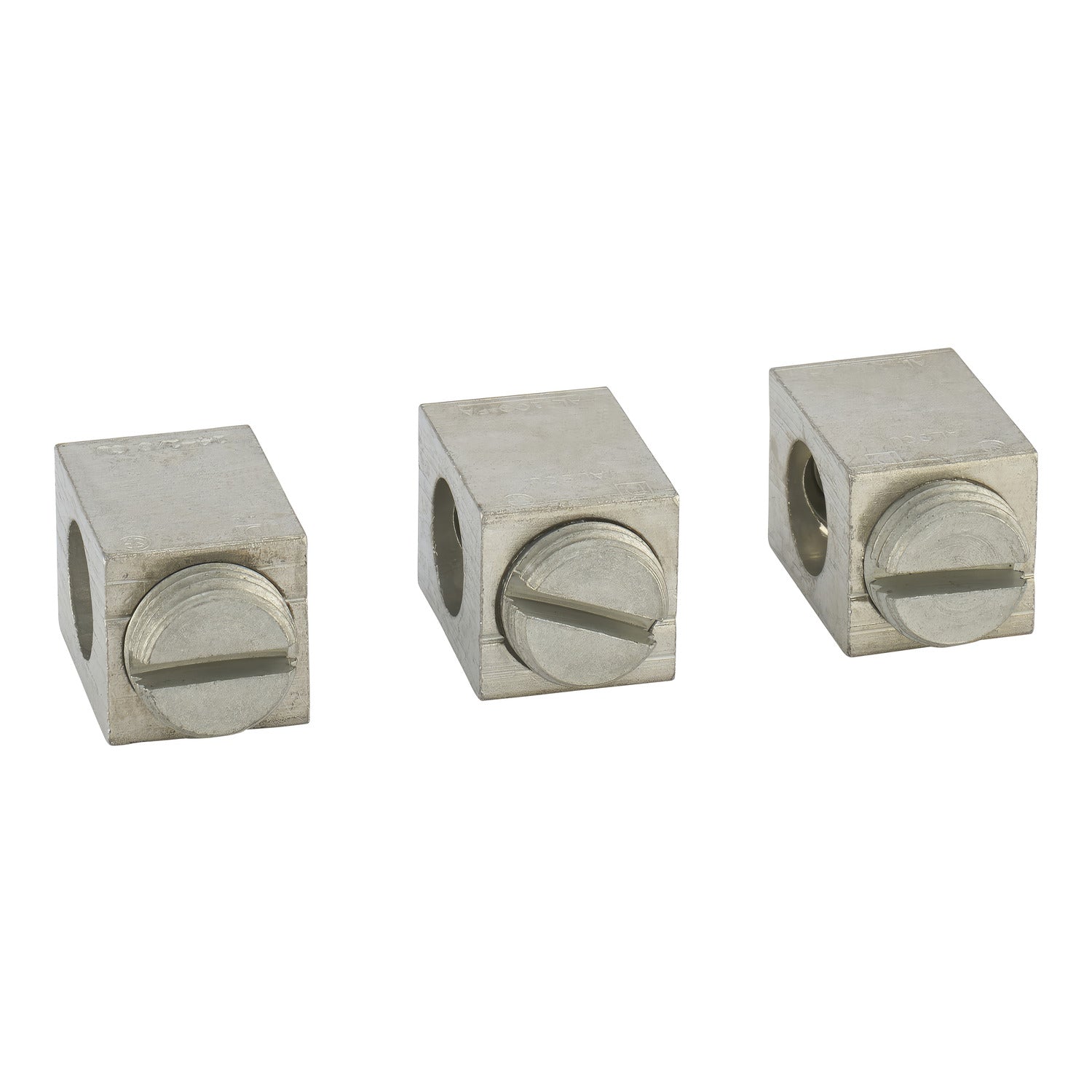

The Schneider Electric AL100FA is a field-installable aluminum lug terminal kit designed for secure conductor termination on compatible molded case circuit breakers. This kit includes three single-barrel lugs capable of accepting 14–106 kcmil copper conductors or 12 AWG–1/0 AWG aluminum conductors. The AL100FA is intended for use with 15–100A breakers in the FAL, FAP, FHL, FHP, FIL, and FIP frame families.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Electrical Products |
| Part Number | AL100FA |
| Subcategory | Lug/Connector |
| Family | FAL Series |
| Type | AL |
| Barrels | 1 |
| MCM Size | Up to 106 kcmil |
| Conductor Range (Copper) | 14–106 kcmil |
| Conductor Range (Aluminum) | 12 AWG–1/0 AWG |
| Metal Type | Aluminum |
| Lugs per Kit | 3 |
| Installation Method | Field-installable |
| Compatible Frames | FAL, FAP, FHL, FHP, FIL, FIP |
| Application | Circuit breaker termination accessory |
Information About AL100FA
The AL100FA is part of Schneider Electric’s FAL Series accessory line and is designed specifically to provide reliable termination for select molded case circuit breakers. Its construction features a single-barrel aluminum lug, engineered for solid conductor retention while remaining lightweight and corrosion-resistant. The kit integrates easily with several breaker frame types—FAL, FAP, FHL, FHP, FIL, and FIP—ensuring broad compatibility across 15–100A devices. Typical applications include panelboard installations, equipment upgrades, and breaker replacements where durable, code-compliant conductor terminations are required.
Key Features:
- FAL Series accessory: Designed for Schneider Electric molded case breakers.
- Single-barrel lug design: Supports straightforward conductor insertion and termination.
- Accepts copper conductors: Compatible with 14–106 kcmil Cu wiring.
- Accepts aluminum conductors: Supports 12 AWG–1/0 AWG Al wiring.
- Aluminum construction: Lightweight, corrosion-resistant, and cost-effective.
- Field-installable kit: Allows quick on-site installation without special tools.
- Three-lug kit: Provides a complete set for multipole breaker applications.
- Fits 15–100A frames: Compatible with FAL, FAP, FHL, FHP, FIL, and FIP breakers.
- Secure termination: Ensures reliable electrical connections for high-demand circuits.
- Breakers integration: Engineered to match Schneider mechanical and electrical specifications.
The AL100FA delivers the reliability and precision required for dependable conductor termination in molded case circuit breaker installations.
