AL1200P24K | Schneider Electric Circuit Breaker Accessory
- Regular price
- $240.00
- Sale price
- $240.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: AL1200P24K
Description

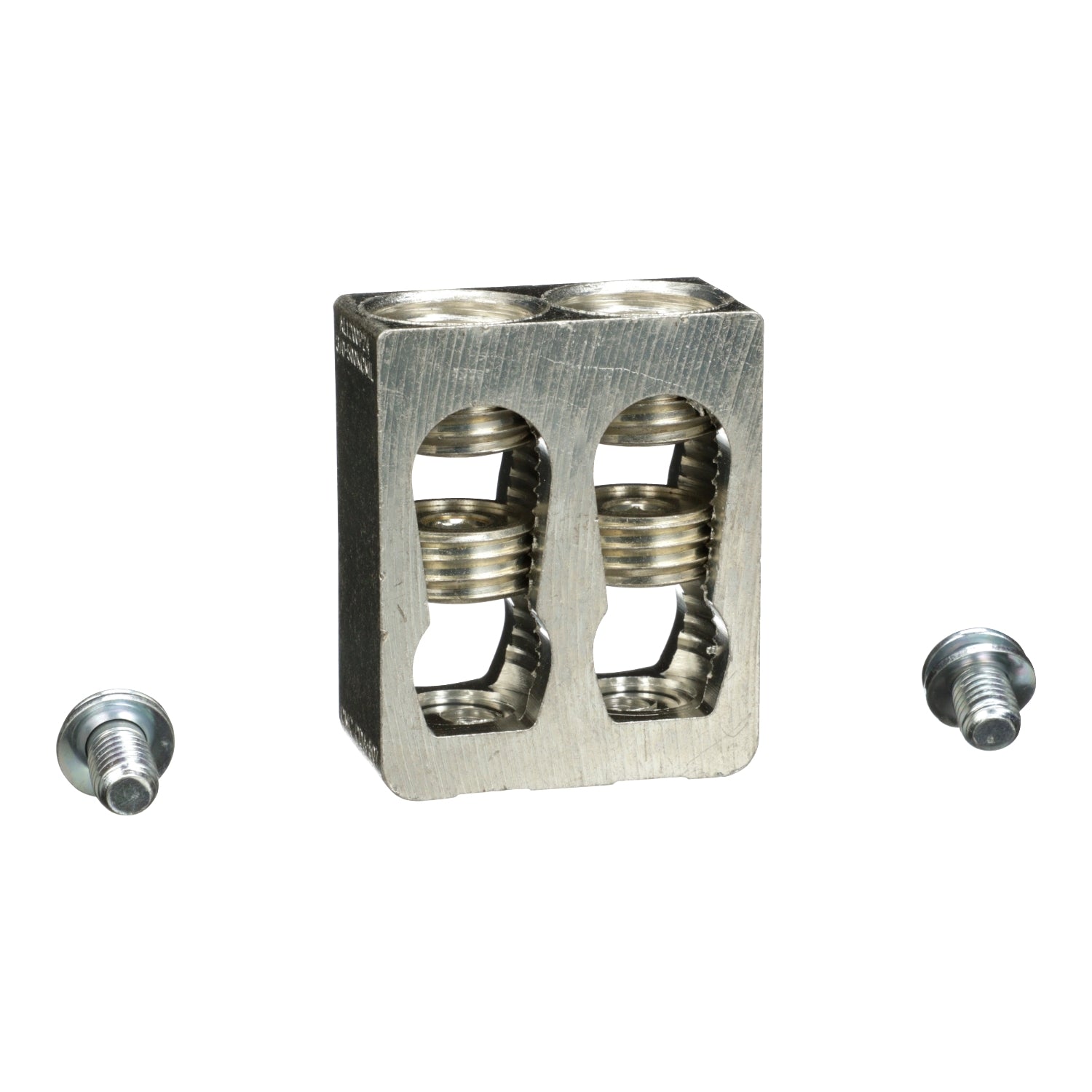

The AL1200P24K is a circuit breaker accessory designed for PowerPacT M/P circuit breakers. It is a lug kit of mechanical nature, capable of accommodating current ratings from 800A to 1200A. The lug kit is intended for use with aluminum conductors ranging from 3/0 AWG to 500kcmil. These aluminum lugs comply with UL and CSA standards, ensuring adherence to safety requirements. They offer the flexibility to modify the circuit breaker at any stage of the design and build cycle.
Technical Specifications
|
Part # |
AL1200P24K |
|
Category |
Circuit Breaker |
|
Subcategory |
Load Center Accessory |
|
Product or Component Type |
Mechanical lug |
|
Accessory / separate part category |
Connection accessory |
|
Quantity per Set |
Set of 1 |
|
Line Rated Current |
800…1200 A |
|
Material |
Aluminium |
|
Mounting Mode |
Unit mount |
|
I-Line |
Yes |
|
Location of connection |
Downstream |
|
AWG gauge |
AWG 3/0...500 kcmil aluminium |
|
Kcmil size |
500 kcmil |
|
Tightening torque |
442.54 lbf.in (50 N.m) 0.15…0.37 in² (95…240 mm²) (AWG 3/0...500 kcmil) |
Information About AL1200P24K
The AL1200P24K is a circuit breaker accessory designed for PowerPacT M/P circuit breakers. It is a lug kit of mechanical nature, capable of accommodating current ratings from 800A to 1200A. The lug kit is intended for use with aluminum conductors ranging from 3/0 AWG to 500kcmil. These aluminum lugs comply with UL and CSA standards, ensuring adherence to safety requirements. They offer the flexibility to modify the circuit breaker at any stage of the design and build cycle.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
