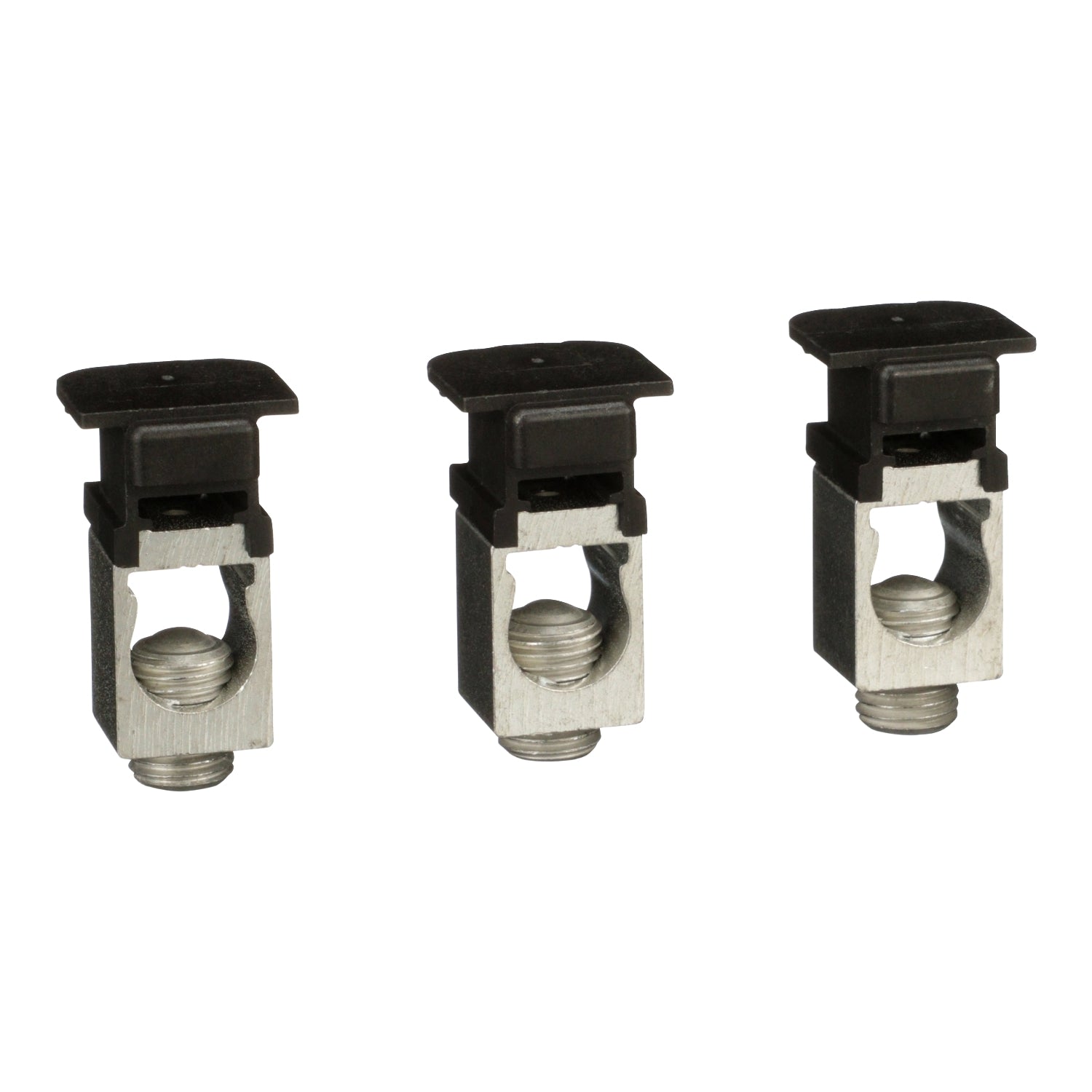

AL150HD | Schneider Electric Circuit Breaker Accessory
- Regular price
- $119.00
- Sale price
- $119.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: AL150HD
Description
AL150HD is a mechanical lug kit accessory designed for PowerPacT H circuit breakers, specifically suitable for applications involving 15A to 150A current ratings and wire sizes ranging from 14 AWG to 3/0 AWG, supporting both aluminum and copper conductors.
Standard mechanical lugs are provided on both ends for unit-mounted M-frame and P-frame circuit breakers. For I-Line™ circuit breakers in the M-frame and P-frame series, mechanical lugs are standard on the O/OFF end only. These lugs are versatile, accommodating copper or aluminum wires, with options available for rear connectors, compression lugs, and distribution lugs for specialized applications.
Technical Specifications
|
Part # |
AL150HD |
|
Category |
Circuit Breaker |
|
Subcategory |
Load Center Accessory |
|
Product or Component Type |
Mechanical lug |
|
Accessory / separate part category |
Connection accessory |
|
Quantity per Set |
Set of 4 poles |
|
Description |
3P |
|
Line Rated Current |
150…400 A |
|
Material |
Aluminium |
|
Mounting Mode |
Unit mount |
|
I-Line |
Yes |
|
Location of connection |
Downstream |
|
Kcmil size |
500 kcmil |
|
Tightening torque |
44.25 lbf.in (5 N.m) 0.00…0.01 in² (2.5…6 mm²) (AWG 14...AWG 10) |
|
Width |
0.874 in (22.20 mm) |
|
Depth |
0.765 in (19.43 mm) |
|
Height |
1.40 in (35.56 mm) |
Information About AL150HD
The AL150HD is a mechanical lug kit designed as an accessory for PowerPacT H circuit breakers, accommodating current ratings ranging from 15A to 150A and wire sizes from 14 to 3/0 AWG for both aluminum and copper conductors. It is primarily used with M-frame and P-frame circuit breakers, where mechanical lugs are standard on both ends for unit-mounted configurations. For I-Line™ circuit breakers within the M-frame and P-frame series, mechanical lugs are standard on the O/OFF end only.
These lugs are suitable for use with both copper and aluminum wires, providing flexibility in installation scenarios. Specialized connectors such as rear connectors, compression lugs, and distribution lugs are also available for specific applications. Notably, copper mechanical lugs are restricted to copper wire usage only.
The mechanical lug kit, featuring a current rating of up to 1200A and crafted from aluminum, supports wire sizes up to 500 kcmil. It conforms to rigorous CSA and UL standards, ensuring compliance with safety and performance requirements in electrical installations.
