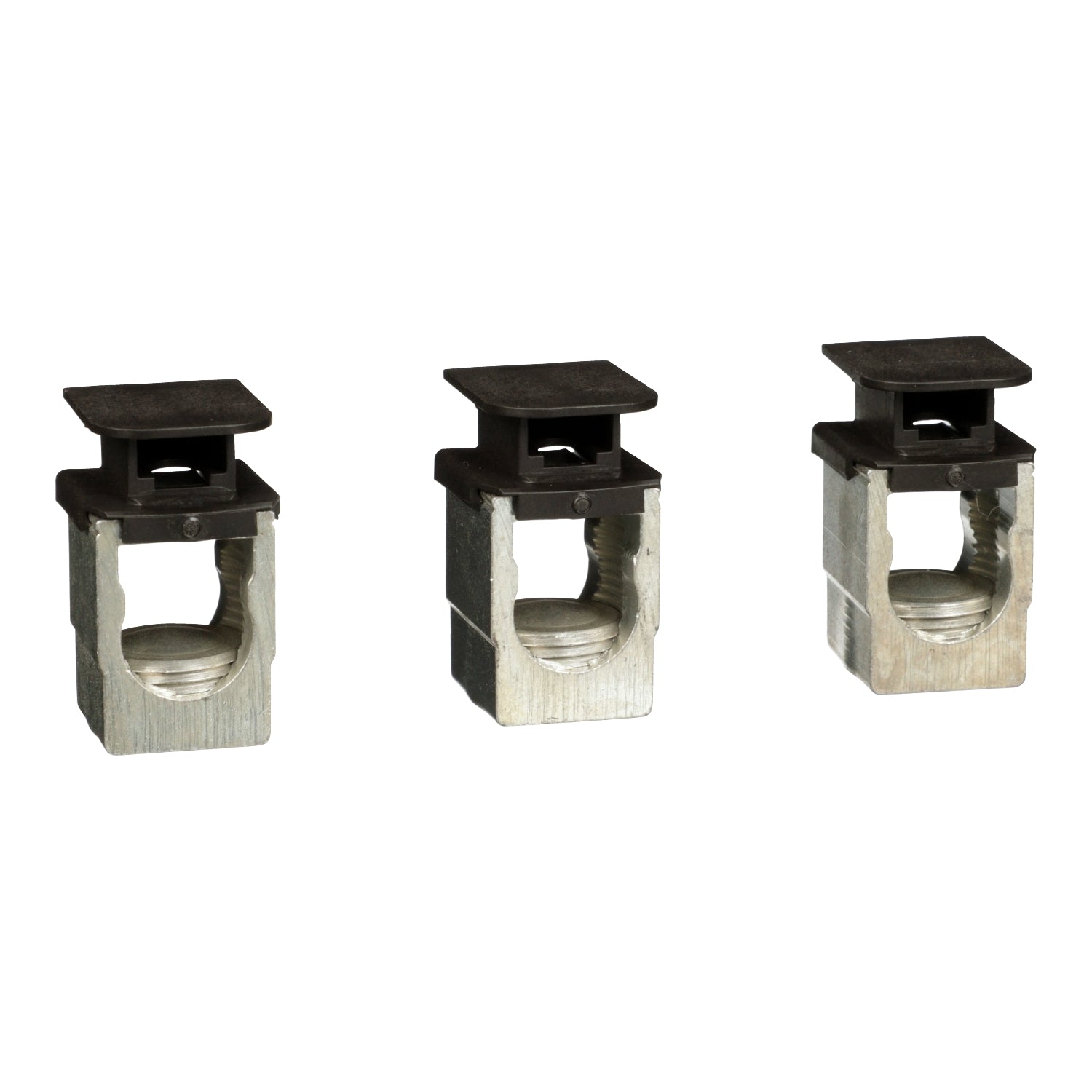

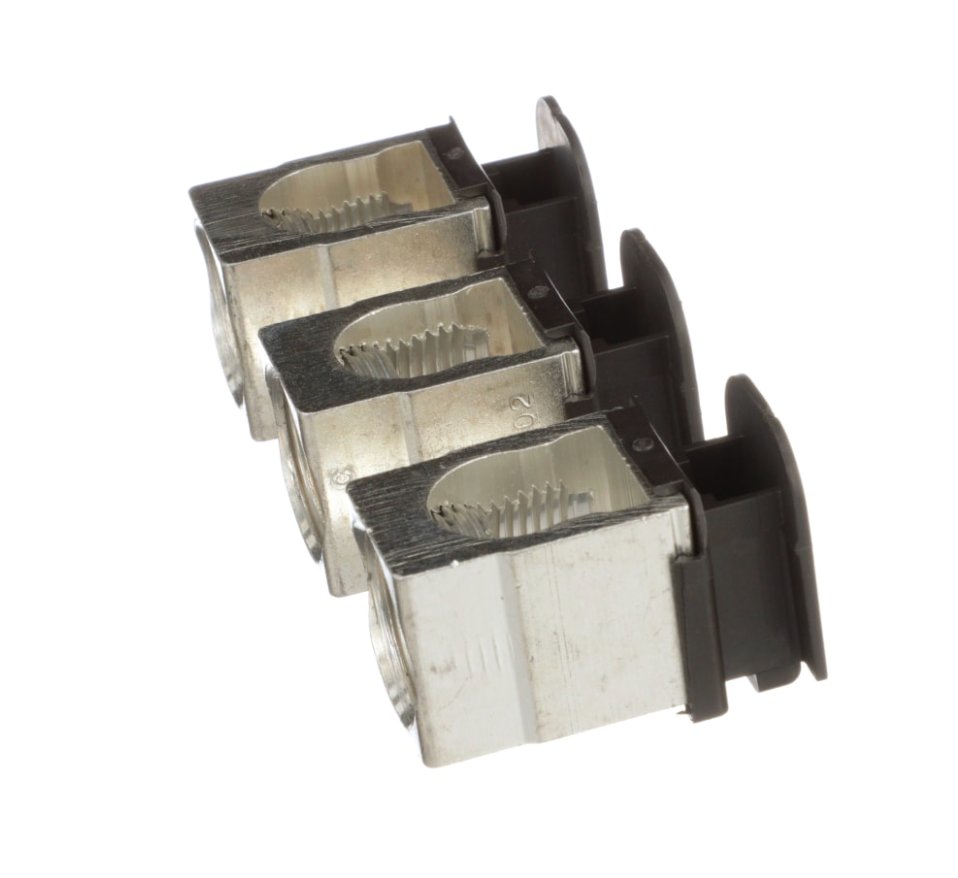

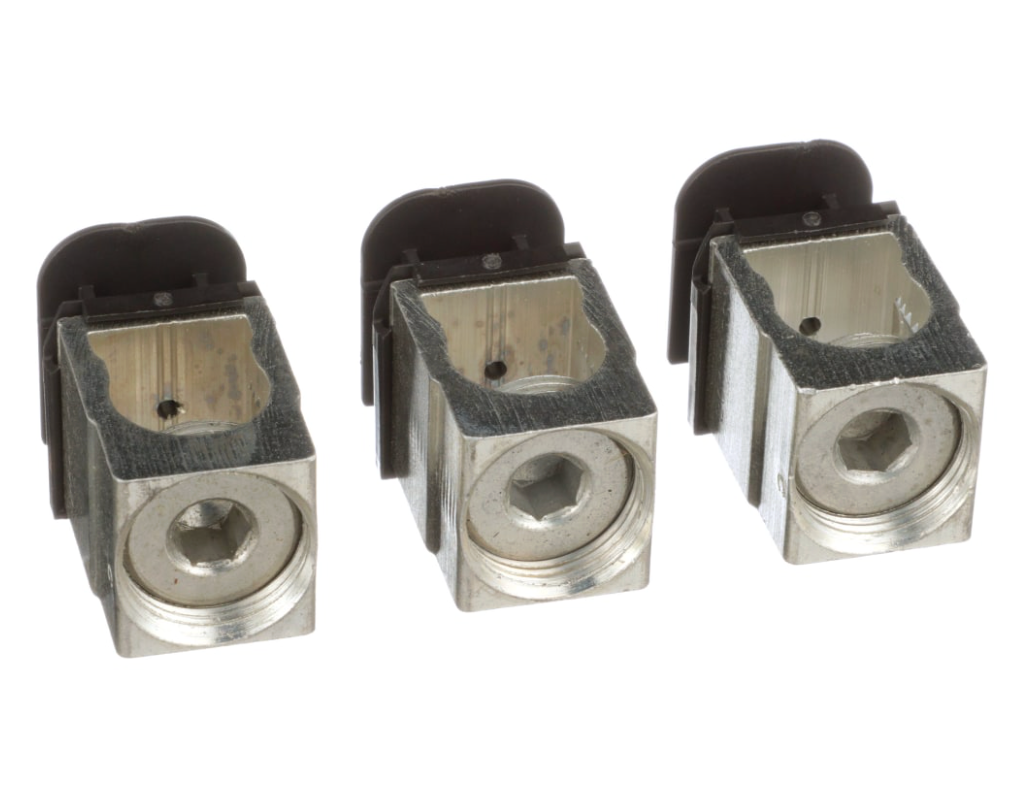

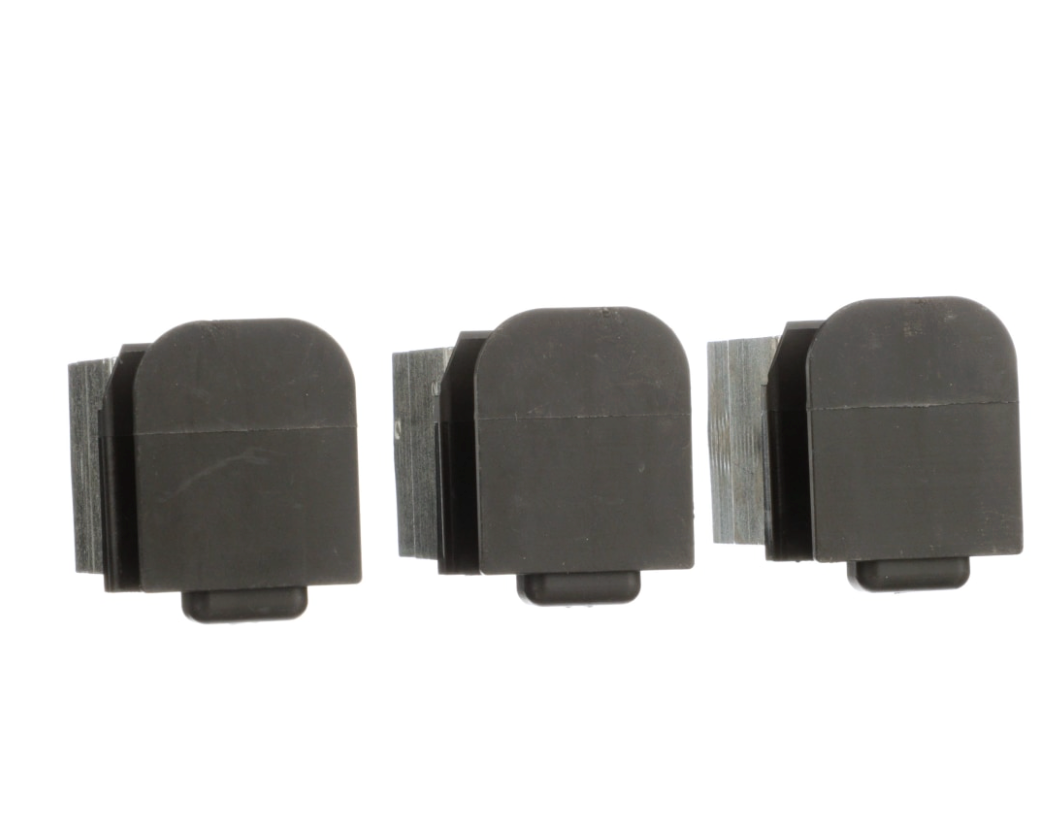

AL250JD | Schneider Electric Powerpact Type AL Mechanical Lug Terminal Kit For JD–JR Frames
- Regular price
- $79.00
- Sale price
- $79.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: AL250JD
Description
The Schneider Electric AL250JD is a mechanical lug terminal kit designed for secure conductor termination in Powerpact circuit breaker installations. It supports aluminum and copper conductors up to 350 kcmil and is intended for use with devices rated from 220 to 250 amps.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Circuit Breaker |
| Part Number | AL250JD |
| Subcategory | Circuit Breaker Accessory |
| Family | Powerpact |
| Type | AL |
| Barrels | 1 |
| Maximum Conductor Size | 350 kcmil / 350 MCM |
| Compatible Frame Types | JD, JG, JJ, JL, JR |
| Conductor Material | Aluminum and Copper |
| Lug Material | Aluminum |
| Included Lugs | 3 per Kit |
| Current Range Compatibility | 220–250 A |
Information About AL250JD
The AL250JD is a mechanical lug terminal kit from Schneider Electric designed for use with Powerpact molded case circuit breakers. It is manufactured as a Type AL accessory and supplied with three single-barrel aluminum lugs per kit. The design supports a broad conductor range, accommodating both aluminum and copper cables from #3/0 through 350 kcmil. This kit is intended for integration with JD, JG, JJ, JL, and JR frame devices, ensuring stable electrical connections in high-current power distribution systems.
Key Features
- Powerpact Compatibility: Engineered for use with Schneider Electric Powerpact circuit breakers across multiple frame sizes.
- Single-Barrel Lug Design: Provides consistent compression and secure termination of large conductors.
- Wide Conductor Range: Accepts aluminum and copper conductors from #3/0 up to 350 kcmil.
- Three-Lug Kit: Supplied with three lugs to support three-pole circuit breaker configurations.
- Aluminum Construction: Ensures durability and reliable conductivity in high-current applications.
- Multi-Frame Support: Compatible with JD, JG, JJ, JL, and JR frames for installation flexibility.
- High-Current Rating Support: Designed for use with devices rated between 220 and 250 amps.
The AL250JD delivers the reliability and precision required for secure high-current conductor terminations in Schneider Electric Powerpact circuit breaker systems.
