Part #: AL800M23K Manufactured by: Schneider Electric

AL800M23K | Schneider Electric Circuit Breaker Accessory

Regular price
$590.00
Sale price
$590.00
Regular price
Never Used Surplus
4 in Stock
Shipping calculated at checkout.
Product Overview
The AL800M23K is a mechanical lug kit designed as a circuit breaker accessory for PowerPacT P circuit breakers. With a hig...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
IQElectro LLC BBB Business Review
warranty
Product comes with IQElectro 2-Year Warranty
Warranty for item #: AL800M23K
IQElectro offers a complimentary 2-year warranty on all our products. This ensures that every purchase you make from IQElectro is a reliable and trustworthy investment for the future of your company. Warranty Terms
IQElectro is NOT an authorized distributor for Schneider Electric
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.
AL800M23K | Schneider Electric Circuit Breaker Accessory
    AL800M23K | Schneider Electric Circuit Breaker Accessory
AL800M23K | Schneider Electric Circuit Breaker Accessory
Return/Exchange within 30-Days.
If any product is damaged upon delivery, you may request an Exchange or Refund within 30 days of receiving your order.
2-3 Day Free Shipping
IQElectro provides free shipping within 2-3 days from the moment the order is placed on our website.

Product Description P/N: AL800M23K

Description / Specifications

Description

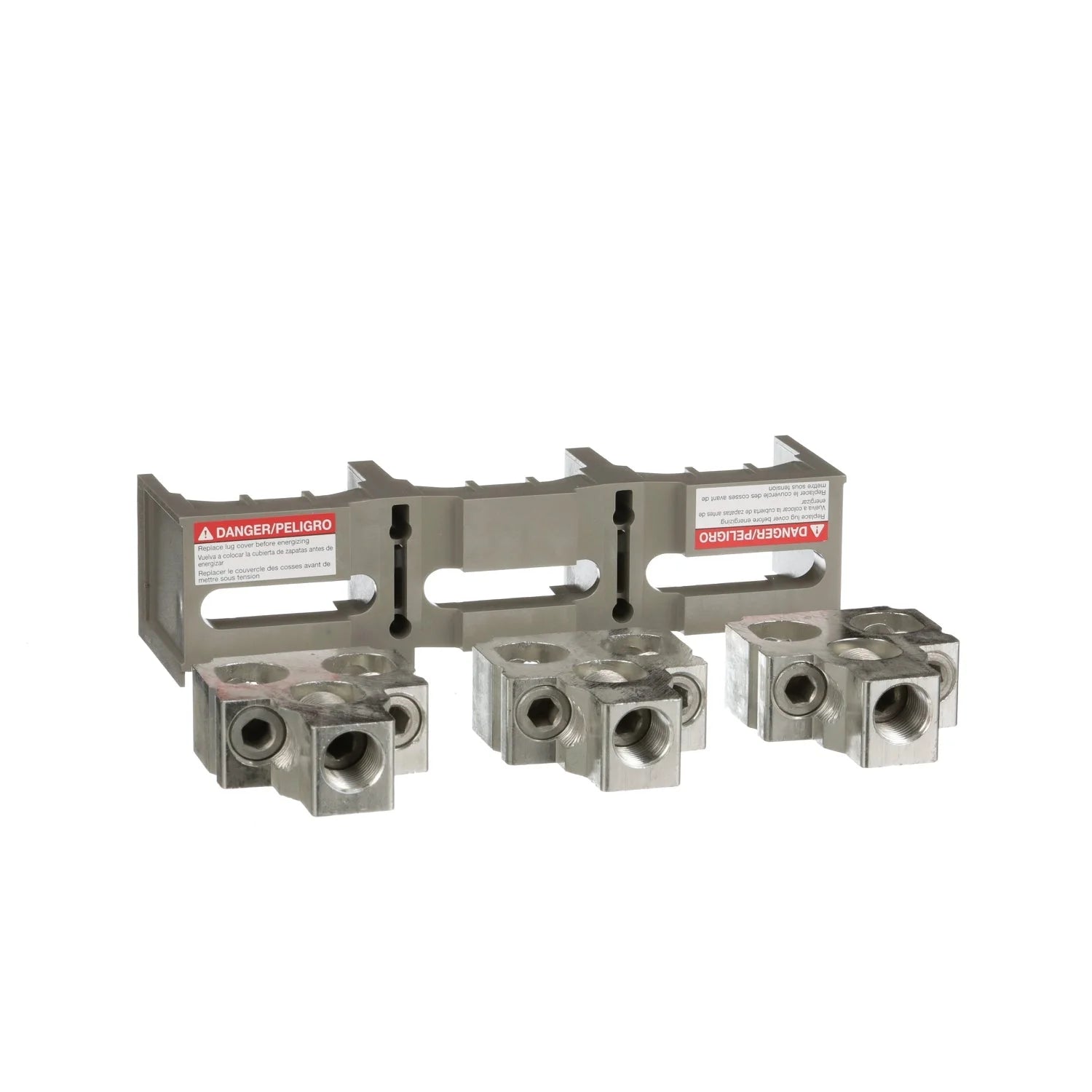

The AL800M23K is a mechanical lug kit designed for PowerPacT P circuit breakers. It is intended for use with PowerPacT M, P, and R-Frame circuit breakers, offering flexibility for modifications during the design and build cycle. With a rating of 800A, these lugs accommodate aluminum conductors ranging from 3/0 AWG to 500kcmil. The lugs comply with UL and CSA standards, ensuring safety and reliability.


Technical Specifications

Part #

AL800M23K

Category

Electrical Products

Subcategory

Lug/Connector Product or Component

Accessory / separate part category

Connection accessory

Quantity per Set

3

Line Rated Current

800 A

Material

Aluminium

Mounting Mode

Unit mount

I-Line

Not specified

Location of Connection

Downstream, Upstream

AWG Gauge

AWG 3/0...500 kcmil aluminium/copper

Kcmil Size

500 kcmil

Tightening Torque

442.54 lbf.in (50 N.m) 0.15…0.37 in² (95…240 mm²) (AWG 3/0...500 kcmil)



Information About AL800M23K

The AL800M23K is a circuit breaker accessory designed for PowerPacT M, P, and R-Frame circuit breakers, providing versatility in modifying circuit breakers during various stages of design and build cycles. Specifically intended for PowerPacT P circuit breakers, this mechanical lug kit ensures reliable electrical connections. Rated for 800A, these lugs accommodate aluminum conductors ranging from 3/0 AWG to 500kcmil, facilitating a wide range of electrical applications.

With a unit mount configuration, the AL800M23K lug kit offers ease of installation and secure attachment to the circuit breaker. Its design allows for downstream and upstream connections, enhancing flexibility in electrical system configurations. The lug kit complies with UL and CSA standards, ensuring adherence to safety and performance requirements.
