Part #: AL800P6K Manufactured by: Schneider Electric

AL800P6K | Schneider Electric Circuit Breaker Accessory

Regular price
$522.00
Sale price
$522.00
Regular price
Never Used Surplus
4 in Stock
Shipping calculated at checkout.
Product Overview
The AL800P6K is a circuit breaker accessory designed for use with PowerPacT M and P-Frame circuit breakers. This mechanica...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
IQElectro LLC BBB Business Review
warranty
Product comes with IQElectro 2-Year Warranty
Warranty for item #: AL800P6K
IQElectro offers a complimentary 2-year warranty on all our products. This ensures that every purchase you make from IQElectro is a reliable and trustworthy investment for the future of your company. Warranty Terms
IQElectro is NOT an authorized distributor for Schneider Electric
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.
AL800P6K | Schneider Electric Circuit Breaker Accessory
    AL800P6K | Schneider Electric Circuit Breaker Accessory
AL800P6K | Schneider Electric Circuit Breaker Accessory
Return/Exchange within 30-Days.
If any product is damaged upon delivery, you may request an Exchange or Refund within 30 days of receiving your order.
2-3 Day Free Shipping
IQElectro provides free shipping within 2-3 days from the moment the order is placed on our website.

Product Description P/N: AL800P6K

Description / Specifications

Description

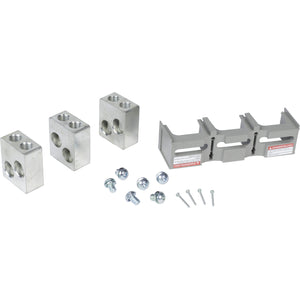

The AL800P6K is a mechanical lug kit designed for use with PowerPacT M and P Frame circuit breakers. This accessory allows for field modification of the circuit breaker, facilitating changes at any stage in the design and build process. The lugs are constructed from aluminum and are rated for a maximum current of 800A. They are capable of accommodating conductors ranging from 3/0 AWG to 600 kcmil, suitable for both aluminum and copper wires. The AL800P6K lugs comply with UL and CSA standards, ensuring adherence to industry safety and performance regulations.

Technical Specifications

Part #

AL800P6K

Category

Circuit Breaker

Subcategory

Circuit Breaker Accessory

Product or Component Type

Mechanical lug

Accessory / Separate Part Category

Connection accessory

Quantity per Set

Set of 2

Line Rated Current

800…1200 A

Material

Aluminium

Mounting Mode

I-Line

Unit Mount

Unit mount

Location of Connection

Downstream

AWG Gauge

AWG 3/0...600 kcmil aluminium/copper

Kcmil Size

600 kcmil

Tightening Torque

442.54 lbf.in (50 N.m) 0.15…0.47 in² (95…300 mm²) (AWG 3/0...600 kcmil)



Information About AL800P6K

The AL800P6K is a circuit breaker accessory specifically designed for use with PowerPacT M, P, and R-Frame circuit breakers. This accessory comprises a mechanical lug kit that is intended to provide flexibility in modifying circuit breakers during both the design and build phases of electrical systems. The mechanical lug kit consists of aluminum lugs that are rated for a line current of 800A. These lugs are capable of accommodating conductors ranging from 3/0 AWG to 600 kcmil, including both aluminum and copper types.

The AL800P6K lug kit is manufactured to meet stringent industry standards, ensuring compliance with UL (Underwriters Laboratories) and CSA (Canadian Standards Association) standards. This compliance ensures that the lug kit meets the necessary safety and performance criteria required for electrical components used in residential, commercial, and industrial applications.
