AL800P7K | Schneider Electric Circuit Breaker Accessory
- Regular price
- $514.00
- Sale price
- $514.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: AL800P7K
Description

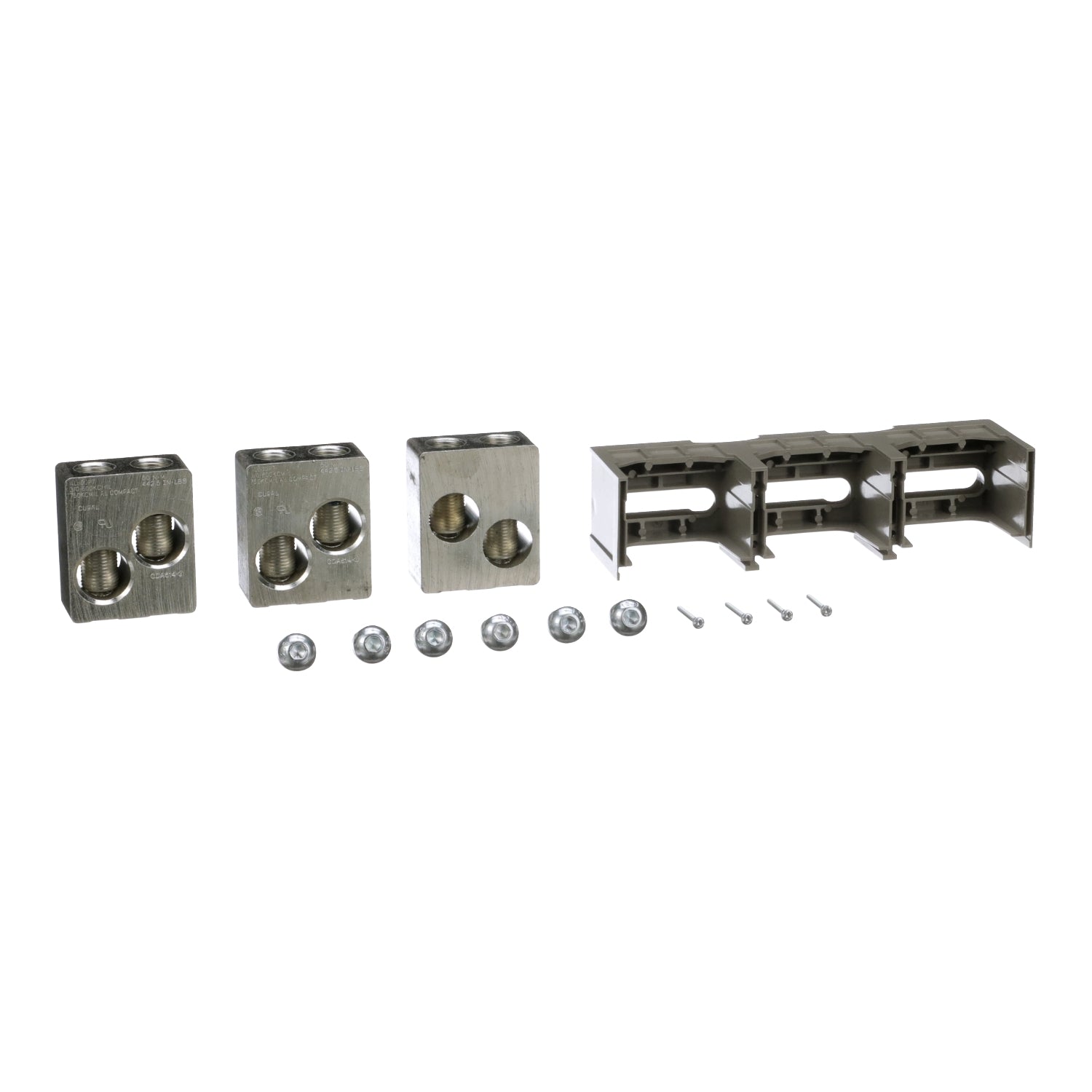

The Schneider Electric AL800P7K is a field-installable mechanical lug terminal kit designed for high-capacity conductor termination on PowerPact molded case circuit breakers. Each kit includes three aluminum dual-barrel lugs capable of accepting 3/0 AWG to 750 kcmil copper or aluminum conductors. The AL800P7K is intended for use with 3-pole, 800A PowerPact P- and M-Frame breakers, ensuring secure and reliable electrical connections.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Electrical Products |
| Part Number | AL800P7K |
| Subcategory | Lug/Connector |
| Family | PowerPact |
| Type | AL |
| MCM Size | Up to 750 kcmil |
| Conductor Range | 3/0 AWG – 750 kcmil Cu/Al |
| Barrels | 2 |
| Metal Type | Aluminum |
| Lugs per Kit | 3 |
| Installation Method | Field-installable |
| Compatible Frames | PGL, PJL, PGM, PGP, PGA, PLL, PLM, PLP, PLA, MGL, MGM, MGP, MGA, MJL, MJM, MJP, MJA |
| Application | High-capacity breaker termination kit |
Information About AL800P7K
The AL800P7K belongs to Schneider Electric’s PowerPact accessory family and is engineered to support heavy-duty power distribution applications requiring large conductor terminations. Its dual-barrel design accommodates high-capacity conductors up to 750 kcmil, making it suitable for feeders and main breaker installations. Constructed from durable aluminum, the lugs provide corrosion resistance, reduced weight, and dependable conductivity for long-term performance. This kit is compatible with a wide selection of PowerPact breaker frames—PGL, PJL, PGM, PGP, PGA, PLL, PLM, PLP, PLA, and the M-Frame equivalents (MGL, MGM, MGP, MGA, MJL, MJM, MJP, MJA)—ensuring broad applicability across industrial and commercial installations where robust, reliable terminations are required.
Key Features:
- PowerPact accessory: Designed for 800A P- and M-Frame molded case circuit breakers.
- Dual-barrel lug design: Supports two conductors per phase for high-capacity terminations.
- Wide conductor range: Accepts 3/0 AWG to 750 kcmil Cu or Al.
- Aluminum construction: Lightweight, corrosion-resistant, and cost-effective.
- Three-lug kit: Provides a complete termination solution for 3-pole breakers.
- Field-installable: Enables quick installation or replacement without special tools.
- High-capacity wiring support: Suitable for feeders and main breaker applications.
- Extensive frame compatibility: Fits PGL, PJL, PGM, PGP, PGA, PLL, PLM, PLP, PLA, and M-Frame equivalents.
- Secure mechanical connection: Ensures stable long-term conductor retention.
- Industrial-grade design: Built for demanding commercial and industrial environments.
The AL800P7K delivers the reliability and precision required for secure, high-capacity conductor termination in PowerPact breaker installations.
