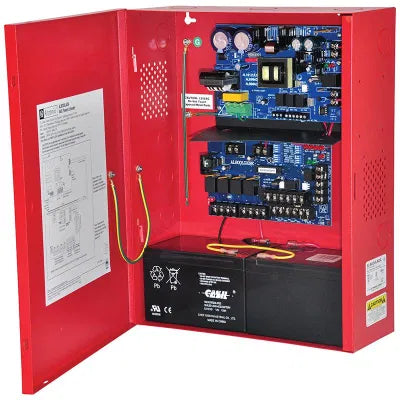

AL802ULADA | Altronix NAC Power Extender 24VDC 8A with 2 Class A or 4 Class B Outputs
- Regular price
- $379.00
- Sale price
- $379.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: AL802ULADA
Description
The Altronix AL802ULADA is a voltage-regulated NAC power supply and extender providing 24VDC at 8 amps for fire alarm systems. It supports two Class A or four Class B outputs, making it suitable for notification appliance expansion and auxiliary device power.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Altronix |
| Category | Fire Alarm Systems |
| Part Number | AL802ULADA |
| Subcategory | NAC Power Supply / Extender |
| Device Type | Remote NAC power extender |
| Input Voltage | 120 VAC |
| Input Current | 4 A |
| Output Voltage | 24 VDC regulated |
| Output Current | 8 Amps total |
| Outputs | 2 Class A or 4 Class B |
| NAC Features | Temporal Code 3, Steady Mode, Sync (Potter/Amseco, Gentex, System Sensor, Cooper Wheelock) |
| Compatibility | Works with 12VDC or 24VDC fire alarm control panels |
| Supervision | Output loop supervision steered to Input 1 or 2 |
| Trouble Features | Signal circuit trouble memory, ground fault detection, common trouble input/output |
| Battery Backup | Supports sealed lead acid or gel (not included), automatic failover on AC loss |
| Indicators | LED status indicators for AC, DC, and logic board |
| Material | Steel |
| Color | Red |
| Enclosure | BC400 series |
| Dimensions | 15.5" H × 12" W × 4.5" D |
| Operating Temp | 32–120°F (0–49°C), 85% ±5% RH |
| Standards | UL864, CSFM, MEA NYC, FM Approved, NFPA 72 Compliant, RoHS |
| Weight | 13.3 lbs |
Information About AL802ULADA
The AL802ULADA is a reliable NAC power supply extender from Altronix, designed to integrate with virtually any 12VDC or 24VDC fire alarm control panel. It provides 24VDC regulated output at up to 8 amps, supporting either two Class A or four Class B circuits for notification appliances. Built into a rugged red steel BC400 enclosure, the unit offers NAC expansion for ADA-compliant fire systems as well as auxiliary power for system accessories. With features such as ground fault detection, signal circuit trouble memory, sync protocols for multiple manufacturers, and automatic battery backup operation, it ensures dependable performance in demanding fire alarm installations.
Key Features:
- High Output Power: Provides 24VDC at 8 amps to support notification appliances and accessories.
- Flexible Circuit Options: Configurable for two Class A or four Class B NAC outputs.
- Multi-Protocol Sync Support: Compatible with System Sensor, Gentex, Potter/Amseco, and Cooper Wheelock devices.
- Advanced Operating Modes: Supports Temporal Code 3, Steady Mode, and Input-to-Output Follower Mode for synchronized control.
- Broad Panel Compatibility: Connects to most 12VDC or 24VDC fire alarm control panels for NAC expansion.
- Built-In Supervision: Output loop supervision with trouble memory and external trouble input/output connections.
- Ground Fault Detection: Monitors wiring integrity to ensure compliance with safety standards.
- Automatic Battery Backup: Seamlessly transfers to batteries during AC loss for uninterrupted operation.
- Visual Status Indicators: LED indicators display AC power, DC output, and logic board condition.
- Durable Construction: Enclosed in a BC400 red steel housing for long-term reliability in fire safety environments.
The AL802ULADA delivers the reliability and precision required for expanding NAC capacity and auxiliary power in modern fire alarm systems.
