Alerton 50027209-001 BACtalk VAViH-SD VAV Controller with Integrated Actuator
- Regular price
- $499.00
- Sale price
- $499.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 50027209-001
Description

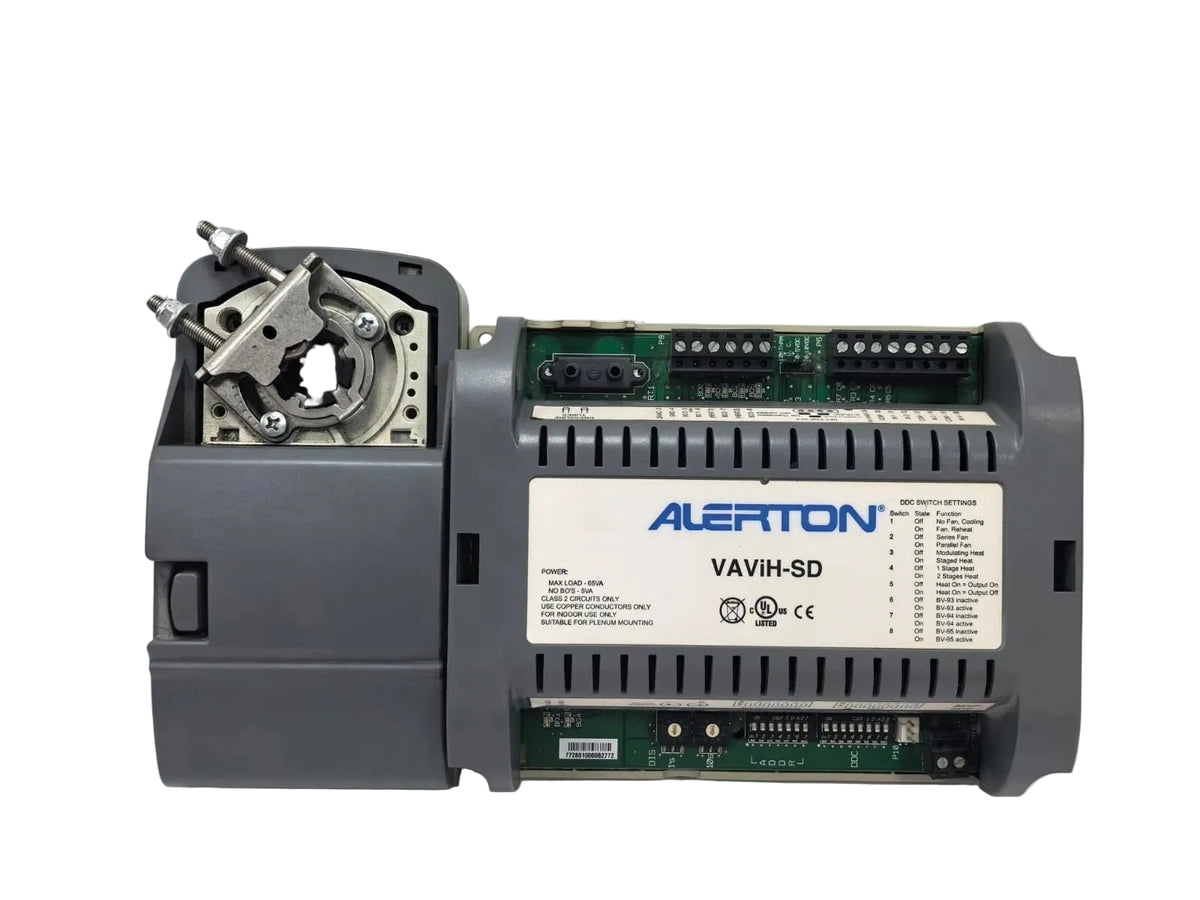

The Alerton 50027209-001 is a BACtalk VAViH-SD variable air volume controller featuring an integrated direct-mount actuator. Operating on a 24V AC power supply, this BACnet-compliant unit provides pressure-independent air volume regulation for single-duct VAV terminal boxes. It delivers precise airflow measurement and damper modulation to maintain optimal commercial indoor air quality.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Alerton |
| Category | HVAC & Refrigeration |
| Part Number | 50027209-001 |
| Subcategory | VAV Controllers |
| Model Series | BACtalk VAViH-SD |
| Actuator Type | Integrated Replaceable Motor |
| Inputs/Outputs | 5 Inputs / 6 Binary Outputs |
| Communication Protocol | BACnet MS/TP |
| Supply Voltage | 24V AC |
| Application Type | Pressure-Independent Single-Duct VAV |
| Weight | 2.40 lbs |
Information About 50027209-001
The 50027209-001 is part of the BACtalk VAViH-SD series engineered for versatile terminal box automation. It incorporates five universal inputs and six binary outputs, supporting DIP-switch selectable direct digital control applications. Built with a replaceable integrated actuator, it simplifies long-term field maintenance and lowers overall mechanical repair costs. This controller communicates natively over BACnet MS/TP networks, allowing seamless integration into broad facility management architectures.
Key Features:
-
Integrated Replaceable Actuator: Allows quick motor servicing without replacing the complete controller board.
-
Native BACnet Compliance: Connects directly to BACnet MS/TP networks for seamless facility monitoring.
-
Selectable DDC Applications: Features pre-loaded DIP-switch configurations to support five distinct VAV control modes.
-
Versatile Input Output Count: Equipped with five universal inputs and six binary outputs for comprehensive hardware control.
-
Pressure-Independent Control: Utilizes internal airflow sensing to adjust damper positions regardless of duct pressure shifts.
-
Rugged Industrial Build: Encased in a durable plenum-rated housing designed for long-term mechanical room service.
The 50027209-001 delivers the reliability and precision required for automated VAV box control and commercial air distribution.
