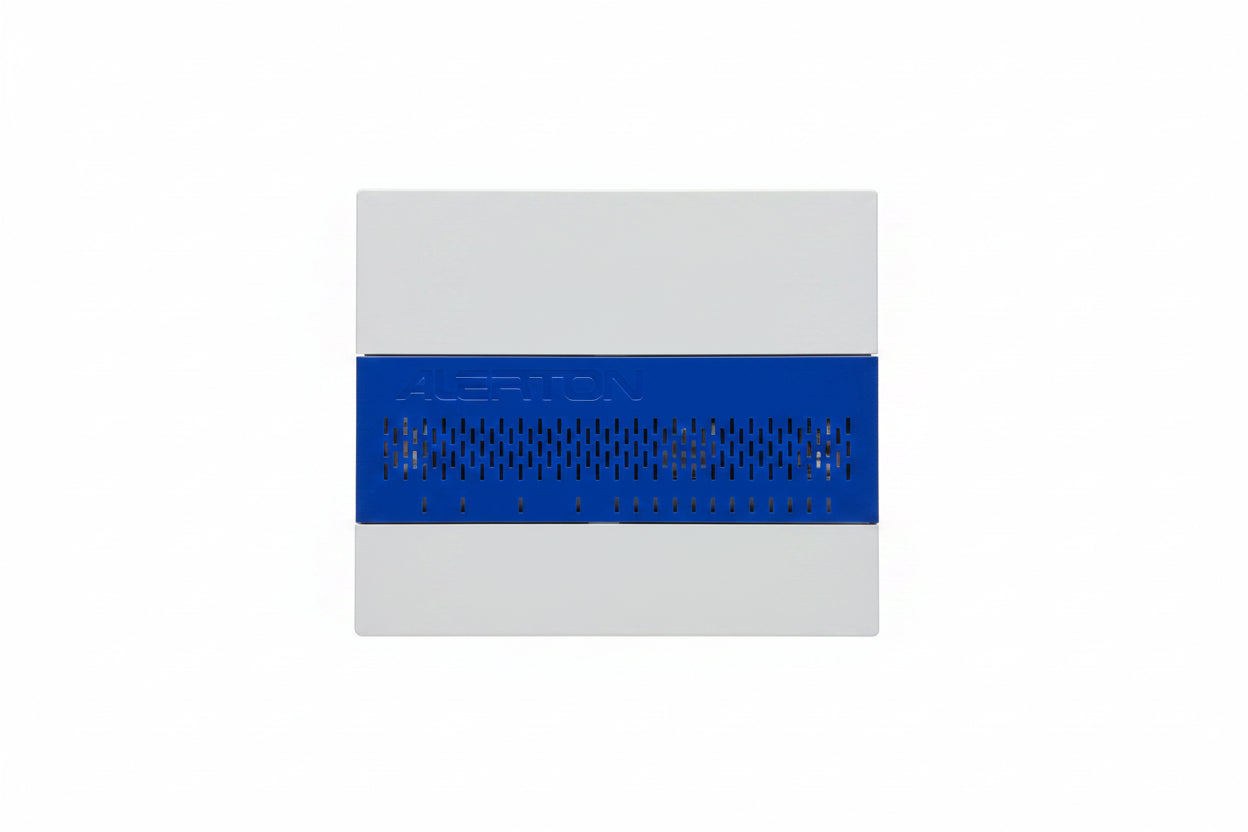

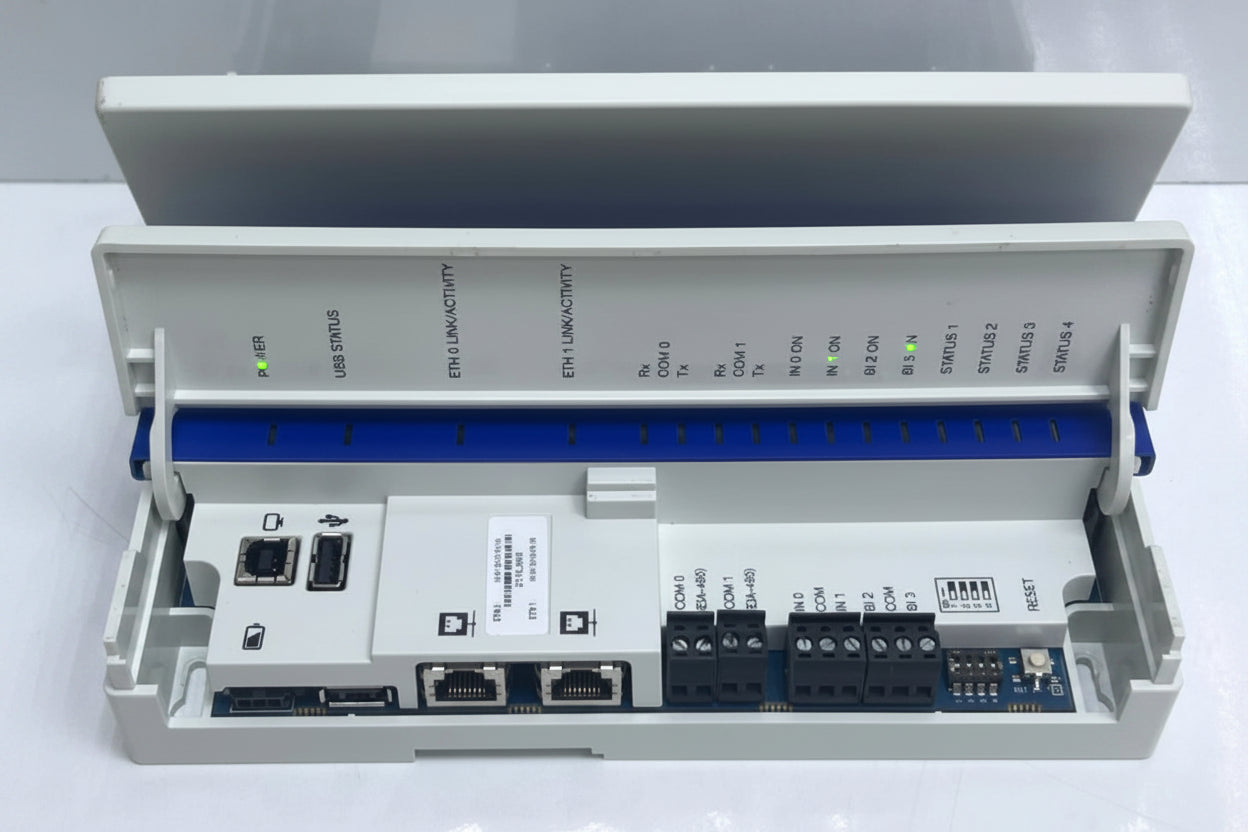

Alerton 50080121-001 Ascent Control Module BACnet Building Automation Controller
- Regular price
- $3,722.00
- Sale price
- $3,722.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 50080121-001
Description
Alerton 50080121-001 is an Ascent Control Module (ACM) used as a building automation controller for BACnet-based HVAC and facility control systems. The module provides Ethernet and EIA-485 communications, supports multiple control instances, and manages functions such as scheduling, alarms, trendlogs, zones, and demand limiting.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Alerton |
| Category | Control Devices |
| Part Number | 50080121-001 |
| Subcategory | Control Units |
| Product Type | Ascent Control Module |
| Model | ACM-000-000-000-000-00-00-00 |
| Controller Class | BACnet Building Controller (B-BC) |
| Power Supply | 20–30 VAC, 40 VA, 47–63 Hz |
| Processor | Quad-core ARM Cortex-A9 |
| Memory | 1 GB DDR3 SDRAM |
| Storage | Removable microSD card |
| Ethernet | Two 10/100/1000 Mbps ports |
| EIA-485 | Two onboard networks; expandable with option cards |
| Protocols | BACnet, Modbus RTU/TCP, Alerton TUX, AXM/EXP, NTPv4 |
| Option Card Slots | 2 |
| Mounting | 35 mm DIN rail or direct panel mounting |
| Operating Temperature | -20 to 65 °C |
| Operating Humidity | 0–95% RH, non-condensing |
| Dimensions | 185 W × 220 H × 44 D mm |
| Weight | 2.31 lbs |
Information About 50080121-001
The 50080121-001 is an identification number associated with the Alerton ACM Ascent Control Module platform. The controller is designed for integration into building automation networks and supports BACnet, Modbus, and Alerton communication technologies. It uses a quad-core ARM Cortex-A9 processor with 1 GB of DDR3 memory and removable microSD storage. The unit can be DIN-rail or panel mounted and provides expansion through two option-card slots for additional communication interfaces.
Key Features:
- Ascent Controller: Serves as a central control module for Alerton building automation systems.
- BACnet Support: Supports BACnet/Ethernet, BACnet/IPv4, BACnet/IPv6, and BACnet/MS/TP communications.
- Ethernet Ports: Provides two integrated Ethernet ports supporting 10/100/1000 Mbps networks.
- EIA-485 Networks: Includes two onboard EIA-485 networks with expansion capability through option cards.
- Processing Platform: Uses a quad-core ARM Cortex-A9 processor with 1 GB DDR3 SDRAM.
- Automation Functions: Supports schedules, alarms, trendlogs, zones, and demand-limiting functions.
- Expansion Slots: Includes two option-card slots for additional communication interfaces.
- Mounting Options: Supports 35 mm DIN-rail installation and direct panel mounting.
The 50080121-001 delivers the reliability and precision required for centralized building automation and HVAC control applications.
