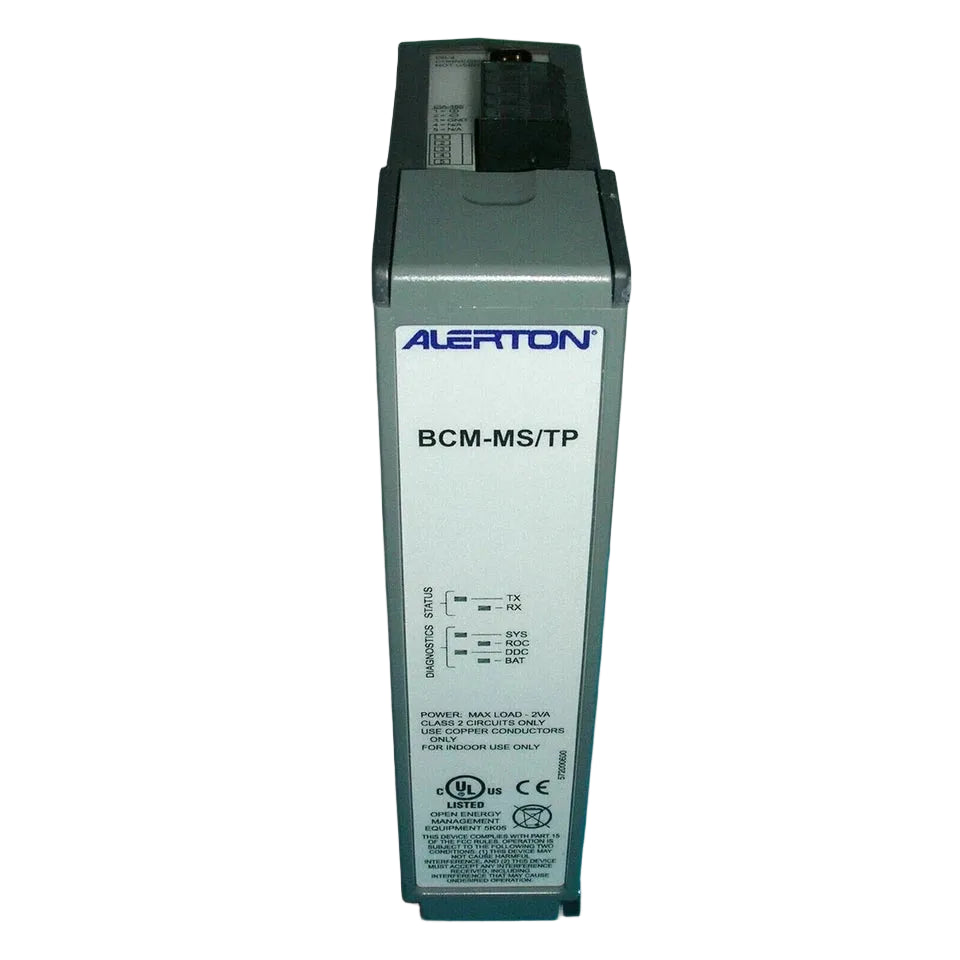

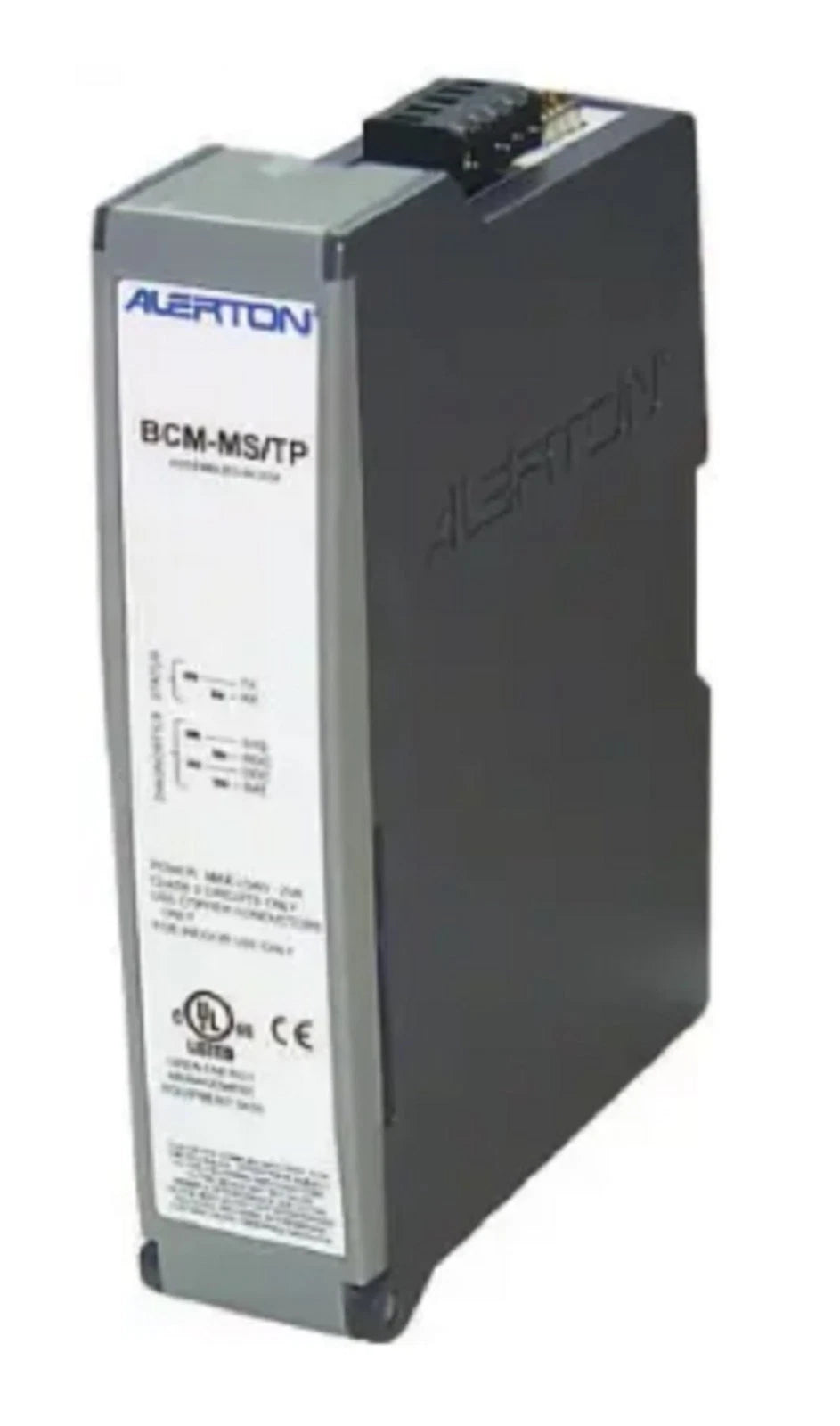

Alerton BCM-MS/TP BACtalk BACnet MS/TP Communications Router Control Module
- Regular price
- $999.00
- Sale price
- $999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: BCM-MS/TP
Description
The Alerton BCM-MS/TP is a dedicated BACnet communications module designed to integrate MS/TP data networks with centralized building automation platforms. This expansion device processes RS-485 signals and routes them into Ethernet or IP infrastructures, allowing for seamless data exchange between field-level controllers and main supervisory systems. By bridging localized HVAC controls with global facility networks, the module ensures precise environmental monitoring and synchronized mechanical execution.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Alerton |
| Category | Building Automation |
| Part Number | BCM-MS/TP |
| Subcategory | Control Modules |
| System Compatibility | Alerton BACtalk (BCM-ETH) |
| Communication Protocol | BACnet MS/TP to BACnet/IP |
| Physical Layer | RS-485 |
| Maximum Baud Rate | 76.8 Kbps |
| Maximum Device Capacity | 60 Devices per Trunk |
| Mounting Style | 35mm DIN Rail |
| Connection Type | Removable Screw Terminals |
| Diagnostic Indicators | Transmit / Receive LEDs |
| Weight | 0.4 lbs |
Information About BCM-MS/TPBCM-MS/TP BCM-MS/TP BCM-MS/TP BCM-MS/TP BCM-MS/TP BCM-MS/TP
The BCM-MS/TP is a specialized network integration module belonging to the Alerton BACtalk global controller framework. It is engineered to mount directly onto standard DIN rails alongside the BCM-ETH and BCM-PWS power supply, utilizing an internal backplane to establish a secure, high-speed data connection. System integrators deploy this component to bridge up to 60 individual field-level MS/TP devices, such as VAV controllers and variable frequency drives, directly to the primary BACnet/IP backbone. The solid-state printed circuit architecture features integrated diagnostic LEDs to provide technicians with immediate visual confirmation of active data transmission and network stability during commissioning.
Key Features:
● BACnet Integration: Seamlessly translates RS-485 MS/TP data traffic into standardized BACnet/IP communication protocols for global facility management.
● High Device Capacity: Supports the direct connection of up to 60 remote field-level devices on a single localized MS/TP communication trunk.
● DIN-Rail Mounting: Facilitates rapid physical installation and secure mechanical alignment alongside other BACtalk control modules within standardized electrical enclosures.
● Flexible Baud Rates: Operates efficiently across multiple transmission speeds up to 76.8 Kbps to match the exact communication requirements of the attached network.
● Internal Backplane Connectivity: Eliminates complex external wiring by routing power and data directly through a modular plug-and-play side connector.
● LED Diagnostics: Includes front-facing indicator lights to immediately signal active transmit and receive status for rapid network troubleshooting.
● Solid-State Architecture: Utilizes resilient electronic components designed to withstand continuous operation and thermal fluctuations within commercial mechanical rooms.
The BCM-MS/TP delivers the reliability and precision required for comprehensive network integration and scalable data routing in advanced building automation systems.
