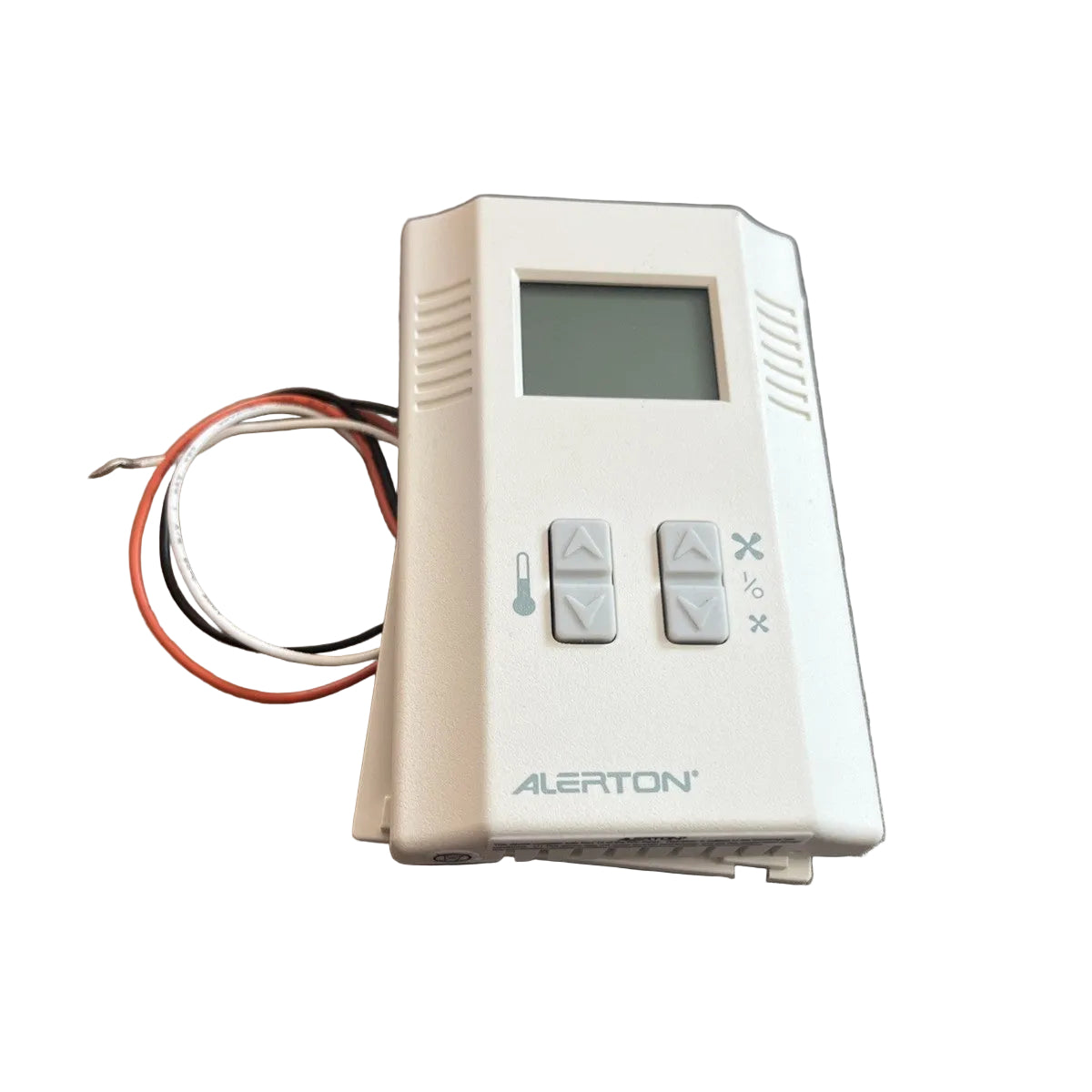

Alerton MS-2000-BT Microset II Intelligent Wall Sensor with Backlit LCD Display
- Regular price
- $399.00
- Sale price
- $399.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: MS-2000-BT
Description
The Alerton MS-2000-BT is an intelligent wall-mounted room sensor and occupant interface designed for use with Alerton BACtalk VisualLogic controllers in building automation systems. Equipped with a multifunction backlit LCD and programmable function buttons, the MS-2000-BT allows occupants and technicians to monitor room conditions, adjust temperature setpoints, and access controller information for efficient HVAC operation.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Alerton |
| Category | Building Automation |
| Part Number | MS-2000-BT |
| Subcategory | Intelligent Wall Sensor |
| Series | Microset II® |
| Product Type | Intelligent Room Sensor and Occupant Interface |
| Compatible Controllers | Alerton BACtalk® VisualLogic (VLC) Controllers |
| Display Type | Backlit LCD |
| Displayed Information | Room Temperature, Outside Air Temperature, Setpoint, Fan Status |
| Communication | Proprietary Digital Communication with VisualLogic Controllers |
| User Controls | Programmable Push Buttons |
| Temperature Adjustment | Programmable Occupant Setpoint Control |
| Fan Control | Selectable Fan Speed (Application Dependent) |
| Field Service Mode | Yes |
| Mounting | Wall Mount |
| Application | Commercial HVAC and Building Automation Systems |
| Typical Applications | Office Buildings, Schools, Hospitals, Hotels, Government Buildings, Commercial Facilities |
| Weight | Approximately 0.2 kg |
Information About MS-2000-BT
The MS-2000-BT is part of the Alerton Microset II® family of intelligent wall sensors developed to provide both occupant comfort control and local system diagnostics for BACtalk VisualLogic controllers. Unlike conventional room thermostats, the Microset II communicates digitally with compatible Alerton VLC controllers, displaying real-time environmental data while allowing authorized users to modify operating parameters within configurable limits. Maintenance personnel can access a dedicated field service mode to view controller status, monitor sensor values, and perform diagnostics without additional programming equipment. Designed for commercial buildings, educational facilities, healthcare environments, hotels, and office complexes, the MS-2000-BT combines user convenience with advanced building automation functionality.
Key Features:
- Intelligent wall sensor: Designed for use with Alerton BACtalk VisualLogic controllers.
- Backlit multifunction LCD: Displays room temperature, outdoor temperature, setpoint, and operating status simultaneously.
- Programmable function buttons: Configurable to meet specific building automation requirements.
- Occupant temperature adjustment: Allows authorized setpoint changes within predefined limits.
- Fan control: Supports occupant fan speed selection where configured.
- After-hours scheduling: Enables occupants to request extended HVAC operation in programmable time increments.
- Field service mode: Provides maintenance personnel with local diagnostics and controller parameter access.
- Digital communication: Interfaces directly with compatible Alerton VisualLogic controllers.
- Modern wall-mounted design: Blends with commercial interior environments.
- Programmable display functions: Information shown on the LCD can be customized by system integrators.
- Energy management support: Helps reduce energy consumption through occupancy-based control.
- User-friendly interface: Simple push-button navigation for everyday operation.
The MS-2000-BT delivers the reliability and precision required for occupant comfort control, HVAC monitoring, and intelligent building automation applications.
