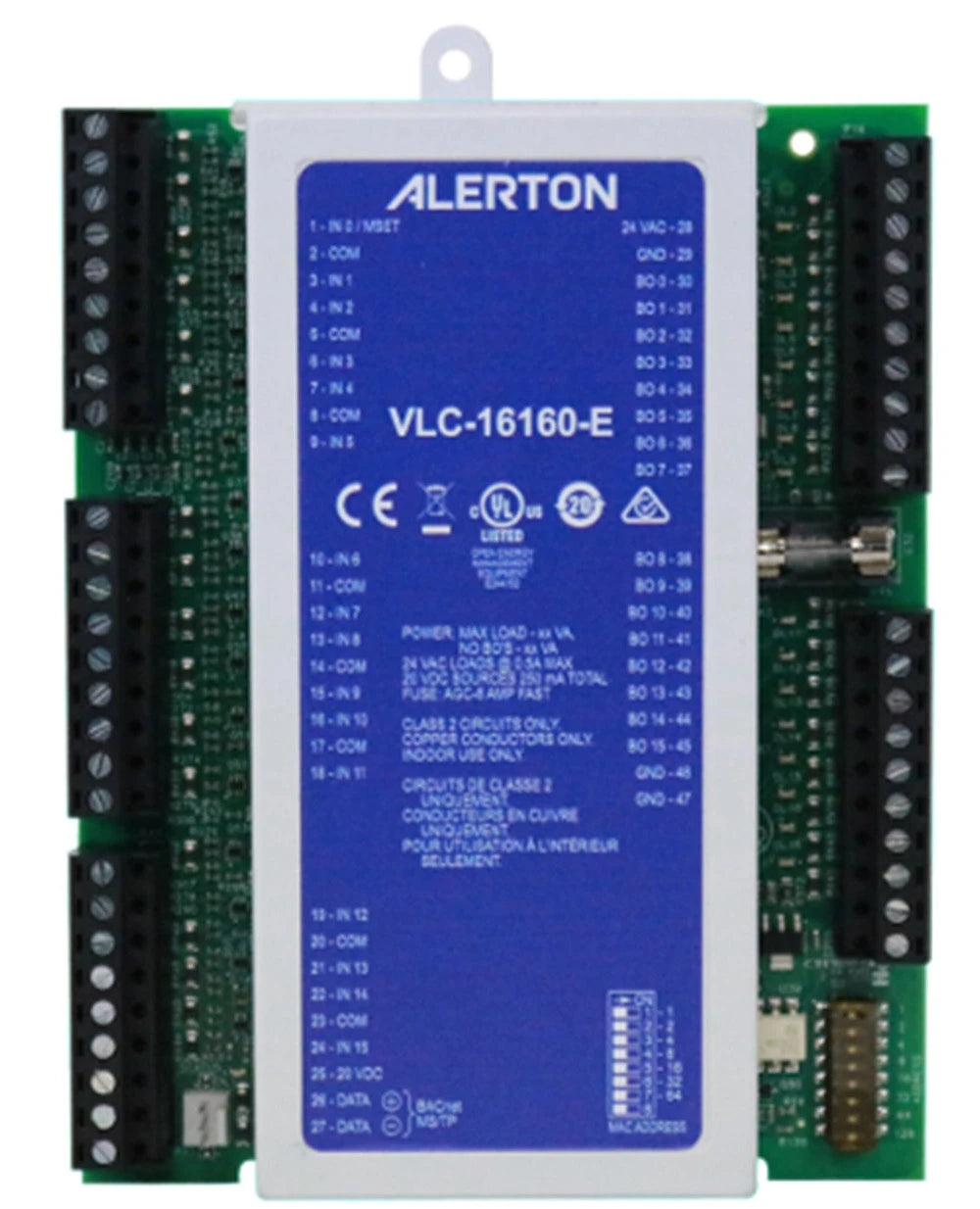

Alerton VLC-16160-E VisualLogic BACnet MS/TP Programmable Controller with 16 Inputs and 16 Outputs
- Regular price
- $2,099.00
- Sale price
- $2,099.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: VLC-16160-E
Description
The Alerton VLC-16160-E is a VisualLogic fully programmable BACnet field controller designed for central plant equipment, lighting panels, damper control, and other building automation applications requiring numerous control points. Alerton part number VLC-16160-E combines 16 universal inputs, 16 binary outputs, native BACnet MS/TP communication, and field-programmable DDC logic for HVAC and building management systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Alerton |
| Category | HVAC & Building Automation |
| Part Number | VLC-16160-E |
| Subcategory | BACnet Programmable Controllers |
| Series | VisualLogic VLC-E |
| Product Type | Programmable BACnet Field Controller |
| Power Supply | 24 VAC, 50/60 Hz |
| Minimum Power Requirement | 18 VA Plus Binary Output Loads |
| Universal Inputs | 16 |
| Input Resolution | 16-Bit |
| Supported Input Types | 10 kΩ Type II Thermistor, Dry Contact, Pulse, 0–5 V, 0–10 V, Current |
| Binary Outputs | 16 Hot-Switched Triac Outputs |
| Binary Output Rating | 24 VAC, 500 mA Continuous; 800 mA RMS for 60 ms |
| External Sensor Power | 20 VDC ±10%, 100 mA Maximum |
| Communication Interface | EIA-485 (RS-485) |
| Communication Protocol | BACnet MS/TP Master |
| Network Speed | 9.6 to 115.2 kbps Auto-Baud |
| Programming | Alerton VisualLogic / BD4 DDC |
| Internal Logic Loop | 100 ms |
| Wall Sensor Support | BACtalk Microset, Microset II and Microset 4 via IN-0 |
| I/O Terminals | Removable Screw Terminals, 14–24 AWG |
| Dimensions | 7.0 in H × 5.0 in W × 1.5 in D |
| Mounting | Screw Mount |
| Operating Temperature | 32°F to 120°F (0°C to 49°C) |
| Operating Humidity | 5% to 85% RH, Non-Condensing |
| Weight | 1.0 lb |
Information About VLC-16160-E
The VLC-16160-E is part of the Alerton VisualLogic VLC-E family and is a BACnet-compliant unitary field controller designed for distributed building automation applications. It operates from 24 VAC power and provides 16 high-resolution universal inputs together with 16 hot-switched triac binary outputs for monitoring sensors and controlling connected equipment. BACnet MS/TP communication over an EIA-485 network supports data rates up to 115.2 kbps, while Alerton VisualLogic software provides graphical programming of field-modifiable DDC sequences. The controller supports BACtalk Microset, Microset II, Microset 4, and compatible Alerton wall sensors and is backward compatible with earlier VLC-16160 and VLC-16160C3 controller installations.
Key Features:
- 32-Point Controller: Provides 16 universal inputs and 16 binary outputs for applications requiring numerous monitored and controlled points.
- Universal Inputs: 16-bit inputs support 10 kΩ Type II thermistors, dry contacts, pulse signals, 0–5 V, 0–10 V, and current inputs.
- Triac Binary Outputs: Sixteen hot-switched outputs provide 24 VAC switching for compatible HVAC and building-control loads.
- Native BACnet MS/TP: Communicates as a BACnet MS/TP master over an EIA-485 network.
- High-Speed Networking: Auto-baud communication supports 9.6, 19.2, 38.4, 76.8, and 115.2 kbps.
- VisualLogic Programming: Supports Alerton's graphical VisualLogic toolset and BD4 DDC programming format for configurable control sequences.
- Fast DDC Execution: Internal logical loop time of approximately 100 ms supports responsive equipment control.
- Nonvolatile Program Storage: Flash memory retains controller programming and configuration data without relying on continuous power.
- 32-Bit Processing: Uses a 32-bit processor architecture for execution of building automation control logic.
- Wall Sensor Support: IN-0 supports compatible BACtalk Microset, Microset II, and Microset 4 intelligent wall sensors.
- Sensor Power Supply: Provides a 20 VDC auxiliary output for powering compatible external sensors.
- Backward Compatibility: Designed to support replacement applications involving earlier VLC-16160 and VLC-16160C3 controllers.
The VLC-16160-E delivers the reliability and precision required for multi-point HVAC, central plant, lighting, and general building automation control applications.
