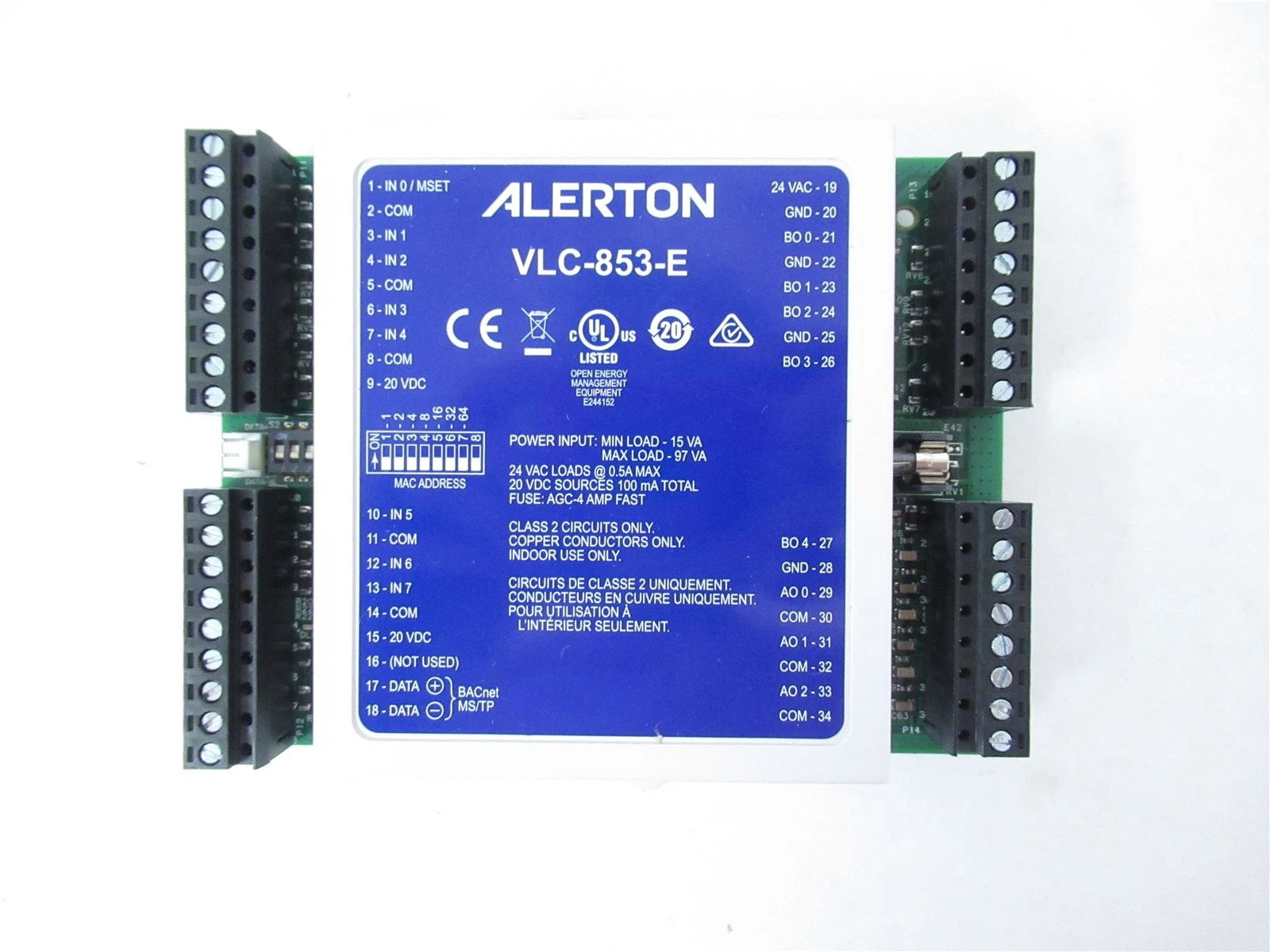

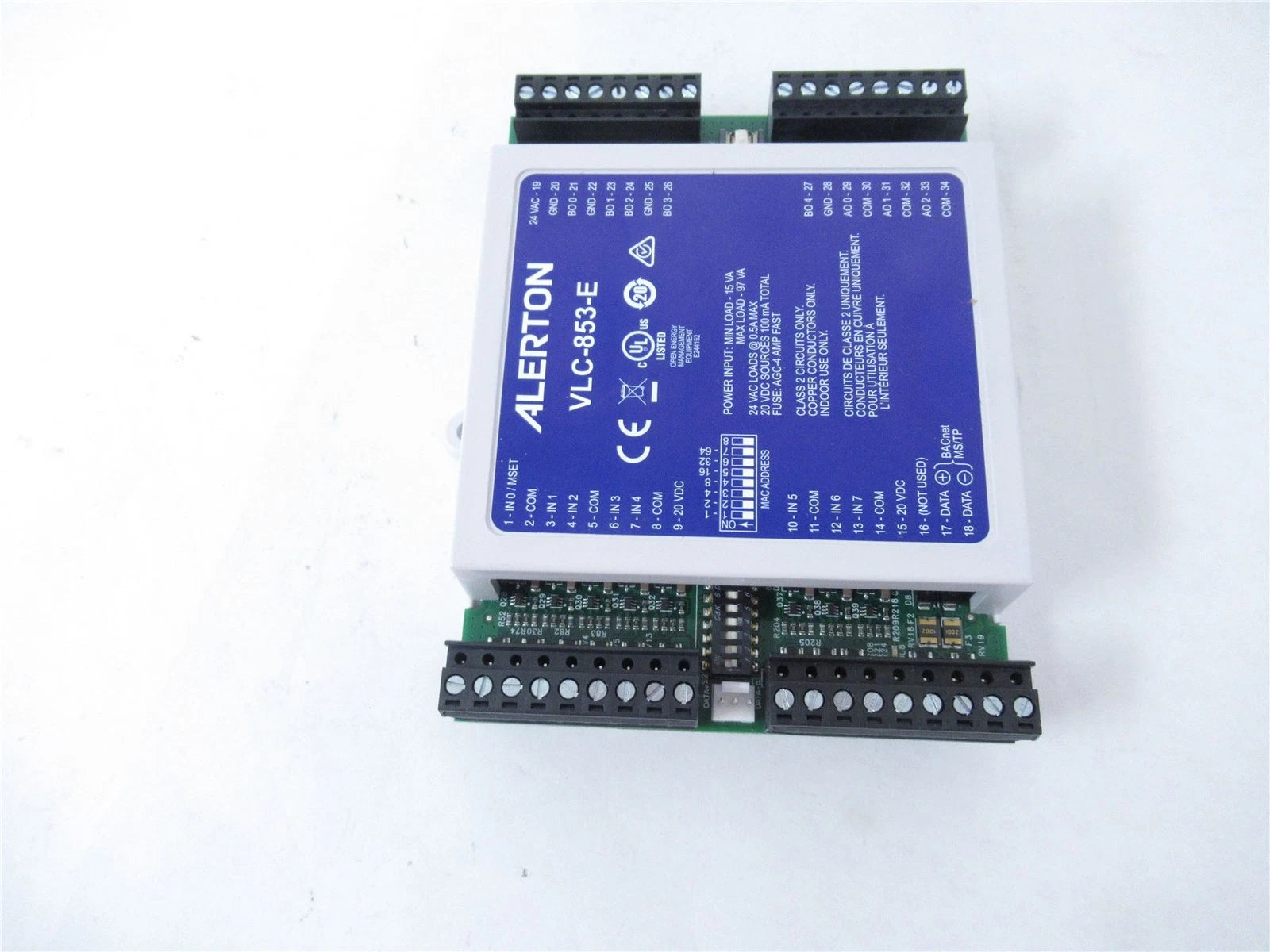

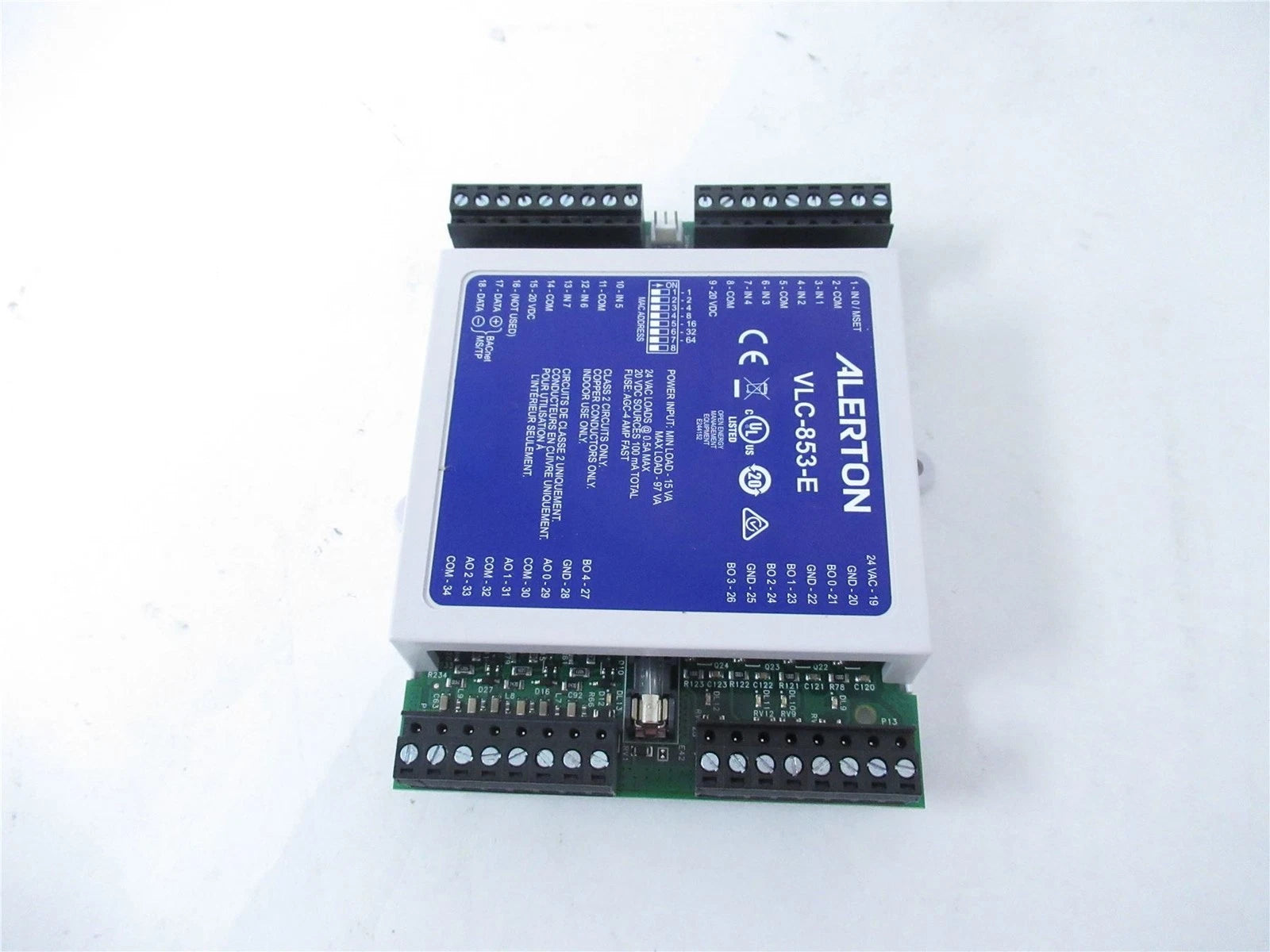

Alerton VLC-853-E VisualLogic BACnet MS/TP Field Controller with 8 Universal Inputs
- Regular price
- $399.00
- Sale price
- $399.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: VLC-853-E
Description
The Alerton VLC-853-E is a fully programmable BACnet MS/TP field controller designed for advanced HVAC and building automation applications. Featuring eight universal inputs, five hot-switching triac outputs, and three analog outputs, the VLC-853-E delivers flexible control, high-speed processing, and seamless integration into BACnet-based building management systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Alerton |
| Category | Building Automation |
| Part Number | VLC-853-E |
| Subcategory | BACnet Field Controller |
| Series | VisualLogic® |
| Product Type | Programmable DDC Controller |
| Communication Protocol | Native BACnet MS/TP |
| Communication Speed | Up to 115.2 kbps |
| Processor | 32-bit Microprocessor |
| Universal Inputs | 8 |
| Binary (Triac) Outputs | 5 Hot-Switching Outputs |
| Analog Outputs | 3 (0–10 VDC) |
| Maximum Digital Outputs | 16 (with supported expansion/configuration) |
| Program Execution Time | Approximately 100 ms Logical Loop |
| Memory | Nonvolatile Flash Memory |
| Operating Humidity | 0–95% RH, Non-Condensing |
| Firmware | Downloadable for future software updates |
| Programming | Fully Field Programmable |
| Typical Applications | Air Handling Units, Central Plant Systems, Clean Rooms, Fume Hoods, Large VAV Systems, Process Control |
| Mounting | Control Panel Mount |
| Weight | Approximately 0.6 kg |
Information About VLC-853-E
The VLC-853-E is part of the Alerton VisualLogic® family of native BACnet controllers developed for distributed direct digital control (DDC) applications. Built around a high-performance 32-bit processor, the controller executes control logic with fast response times while storing application programs and configuration data in nonvolatile Flash memory to preserve operation during power interruptions. As a fully programmable controller, it supports custom HVAC sequences for air handling units, central plant equipment, clean rooms, laboratory ventilation systems, terminal units, and other complex mechanical installations. Native BACnet MS/TP communication enables straightforward integration with Alerton Compass®, Envision, and other BACnet-compliant building automation systems without the need for protocol gateways.
Key Features:
- Native BACnet MS/TP controller: Communicates directly on BACnet networks at speeds up to 115.2 kbps.
- Eight universal inputs: Supports multiple sensor types including temperature, voltage, current, and dry-contact devices.
- Five hot-switching triac outputs: Controls floating actuators, relays, and other field devices.
- Three analog outputs: Provides proportional 0–10 VDC control for valves, dampers, and variable-speed equipment.
- High-speed 32-bit processor: Executes DDC control programs with approximately 100 ms logical loop time.
- Fully programmable logic: Allows field customization for virtually any HVAC control sequence.
- Nonvolatile Flash memory: Retains applications and configuration without battery backup.
- Downloadable firmware: Supports future software enhancements and feature updates.
- Backward compatibility: Integrates with existing Alerton VisualLogic installations.
- Wide humidity tolerance: Operates in environments from 0% to 95% non-condensing humidity.
- LED status indicators: Simplifies diagnostics, commissioning, and maintenance.
- Flexible HVAC applications: Suitable for central plants, air handlers, clean rooms, fume hoods, and large VAV systems.
The VLC-853-E delivers the reliability and precision required for advanced HVAC automation, distributed BACnet control, and intelligent building management systems.
