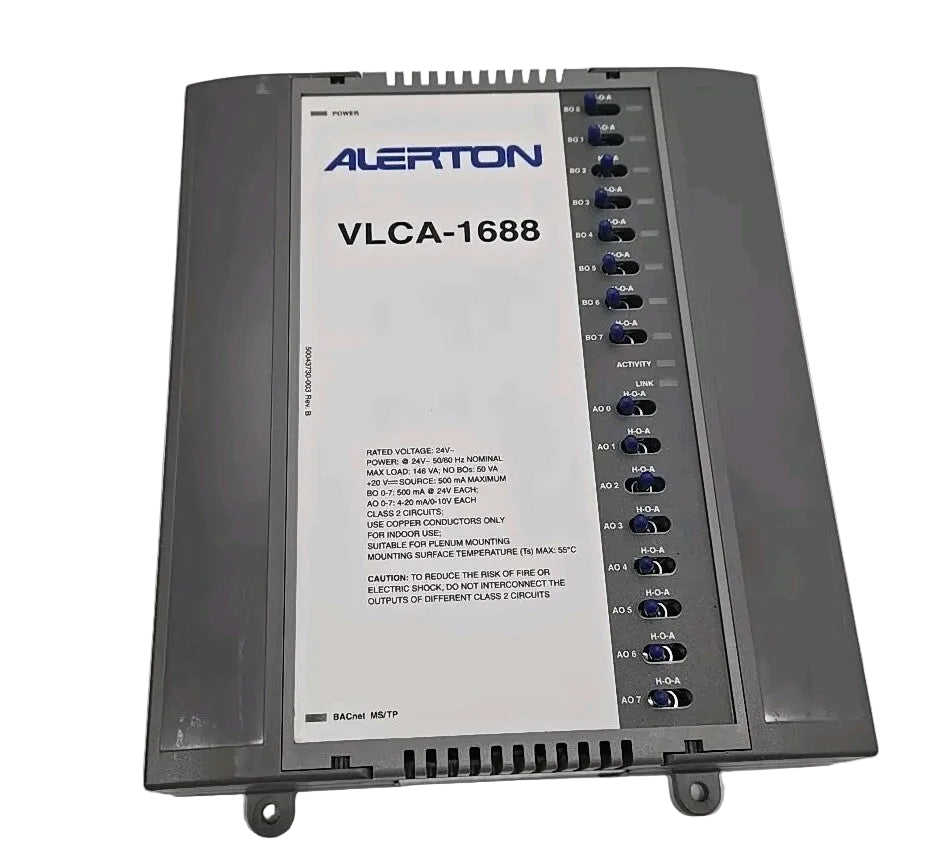

Alerton VLCA-1688 BACtalk BACnet Advanced Application Building Automation Controller
- Regular price
- $1,699.00
- Sale price
- $1,699.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: VLCA-1688
Description
The Alerton VLCA-1688 is a BACnet Advanced Application Controller designed for programmable building automation and HVAC control systems. It provides 16 universal inputs, 8 binary outputs, and 8 analog outputs, with BACnet networking, onboard HOA controls, and a 32-bit processor for complex DDC applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Alerton |
| Category | HVAC & Building Automation |
| Part Number | VLCA-1688 |
| Subcategory | Building Automation Controllers |
| Product Family | BACtalk Advanced VisualLogic |
| Product Type | BACnet Advanced Application Controller |
| Universal Inputs | 16 |
| Analog Outputs | 8 |
| Input Resolution | 12-bit |
| Processor | 32-bit |
| Memory | 4 MB Flash |
| Communication | BACnet/Ethernet, BACnet/IP, BACnet MS/TP |
| MS/TP Communication Speed | Up to 115.2 Kbps |
| Power Supply | 24 VAC, 50–60 Hz, 50 VA |
| DC Output | 20 VDC, up to 500 mA |
| Operating Temperature | -40°C to 55°C (-40°F to 131°F) |
| Humidity | 5–95% RH, non-condensing |
| Weight | 1.67 lb |
Information About VLCA-1688
The VLCA-1688 is part of the Alerton BACtalk Advanced VisualLogic controller family and is designed for systems requiring numerous interdependent control points. Its 16 universal inputs accept thermistors, 1000-ohm platinum RTDs, dry contacts, 0–10 VDC, and 4–20 mA signals, while selected inputs support pulse sensing. The controller provides BACnet/Ethernet, BACnet/IP, and BACnet MS/TP communication and can operate as a standalone controller using its battery-backed real-time clock. Its 12-bit A/D and D/A converters, nonvolatile flash memory, and programmable DDC functions support scheduling, trend logging, alarms, and advanced control calculations.
Key Features:
- BACnet Advanced Controller: Provides B-AAC functionality for programmable building automation applications.
- Universal Inputs: Includes 16 universal inputs with 12-bit resolution for multiple sensor and signal types.
- Binary Outputs: Provides 8 triac outputs rated at 24 VAC and 0.5 A.
- Analog Outputs: Includes 8 analog outputs configurable for 0–20 mA or 0–10 VDC operation.
- HOA Controls: Provides Hand-Off-Auto switches for manual binary output override and monitoring.
- Network Connectivity: Supports BACnet/Ethernet, BACnet/IP, and BACnet MS/TP communication.
- Processing: Uses a 32-bit processor with 4 MB flash memory for program and configuration storage.
- Real-Time Clock: Battery-backed clock supports schedules, trendlogs, and timed automation functions.
The VLCA-1688 delivers the reliability and precision required for programmable HVAC and building automation control.
