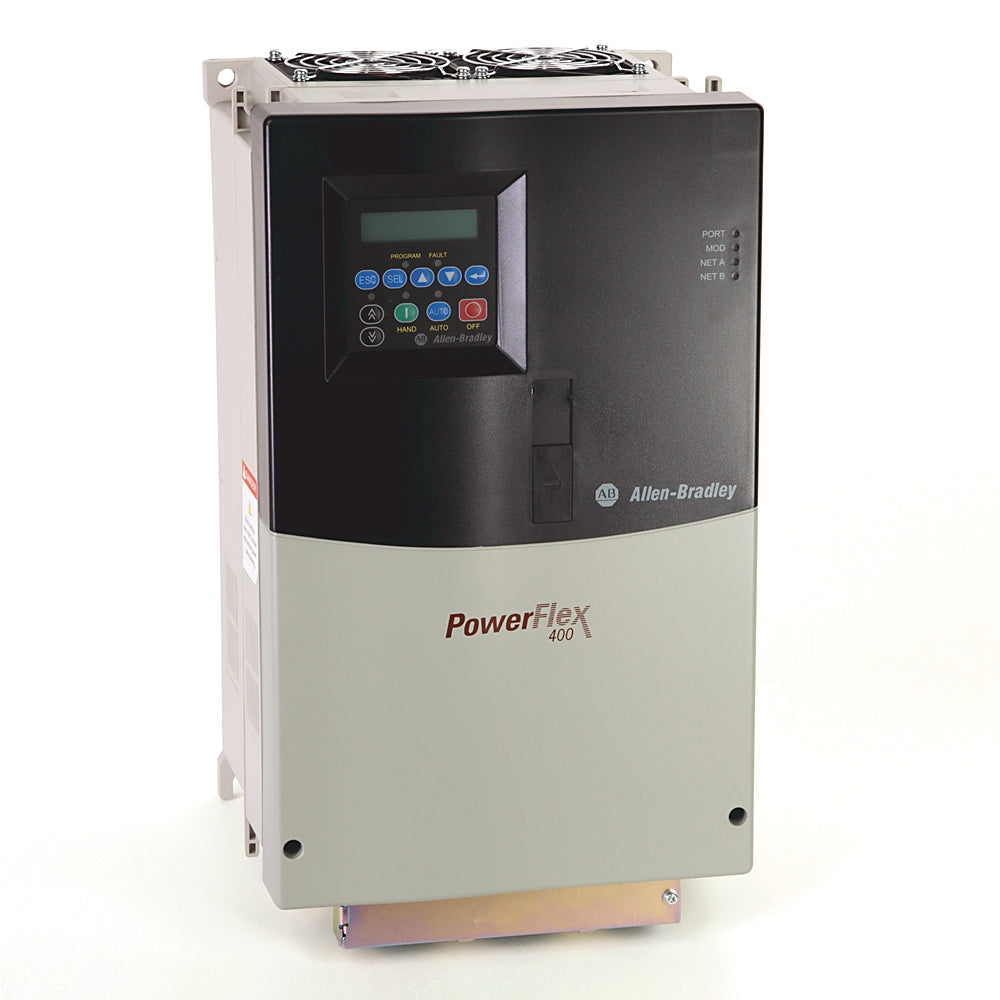

22C-D170A103 | Allen-Bradley PowerFlex 400 125 HP Fan & Pump VFD With 170A Output
- Regular price
- $5,769.00
- Sale price
- $5,769.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 22C-D170A103
Description
The Allen-Bradley 22C-D170A103 is a PowerFlex 400 variable frequency drive engineered for industrial fan and pump applications. It operates from a 342–528VAC three-phase supply and supports motor ratings up to 90 kW (125 HP) with an output current of 170 A. The drive provides multiple built-in control and communication options, including RS-485, for efficient and flexible system integration.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Allen-Bradley |
| Category | Drives |
| Part Number | 22C-D170A103 |
| Subcategory | Variable Frequency Drives |
| Manufacturer | Rockwell Automation |
| Product Line | PowerFlex 400 |
| Drive Type | Fan & Pump VFD |
| Horsepower | 125 HP |
| Applicable Motor Rating | 90 kW |
| Input Voltage | 342–528 VAC |
| Input Phase | Three-phase |
| Input Current | 170 A |
| Output Voltage | 0–460 VAC |
| Output Frequency Range | 0–400 Hz |
| Control Methods | V/Hz, Slip Compensation, Process PID |
| Embedded Communication Port | RS-485 |
| Optional Communication | BacNet, LonWorks, ProfiBus, Ethernet, DeviceNet, ControlNet |
| Embedded I/O | 7 digital inputs, 1 open output, 2 Form C relay outputs, 2 analog inputs (0–10 VDC / 0–20 mA), 2 analog outputs |
| Enclosure Rating | IP20 (Open Type), IP30 NEMA/UL Type 1 (panel mount) |
| Installation | Panel-mounted |
| Frame Size | A Frame |
| Recommended Contactor | 100-D250 |
| Fuse Rating | 250 A |
| Power Dissipation | 2617 W (open type) |
| Operating Temperature | 14–113°F (−10–45°C typical, model-specific) |
| Storage Temperature | −40–185°F (−40–85°C) |
| Altitude Rating | Up to 1000 m without derating |
| Cooling Method | Fan-cooled |
| Operator Interface | 32-character, 2-line LCD with LEDs and 7 languages |
| Communication Protocol Support | Modbus RTU, DSI, Metasys N2, P1 FLN |
Information About 22C-D170A103
The 22C-D170A103 is part of the PowerFlex 400 AC drive family, designed to deliver scalable and reliable speed control for large fan and pump motors. Its output capabilities support 170 A continuous current with an output frequency range of 0–400 Hz, making it suitable for demanding HVAC and process applications. The drive offers multiple embedded I/O points, including digital, analog, and relay outputs, enabling both standalone control and direct PLC interfacing. Typical installation environments include industrial process systems, water and wastewater facilities, and large air-handling units where V/Hz and process PID control enhance operational efficiency.
Key Features:
- High-power performance: Supports 90 kW (125 HP) motors with 170 A output capacity.
- Wide input voltage range: Accepts 342–528VAC, three-phase supply.
- Fan & pump optimization: Designed specifically for HVAC and fluid-handling applications.
- Flexible control methods: Includes V/Hz, slip compensation, and integrated process PID.
- Rich embedded I/O: Seven digital inputs, multiple relay outputs, and two analog inputs/outputs.
- Communication-ready: RS-485 standard with optional BacNet, LonWorks, ProfiBus, Ethernet, DeviceNet, and ControlNet.
- Panel-mount enclosure: Rated IP30 / NEMA Type 1 for indoor industrial installation.
- LCD operator interface: 32-character display with multilingual support and LED indicators.
The 22C-D170A103 delivers the reliability and precision required for high-capacity fan and pump systems in industrial and HVAC applications.
