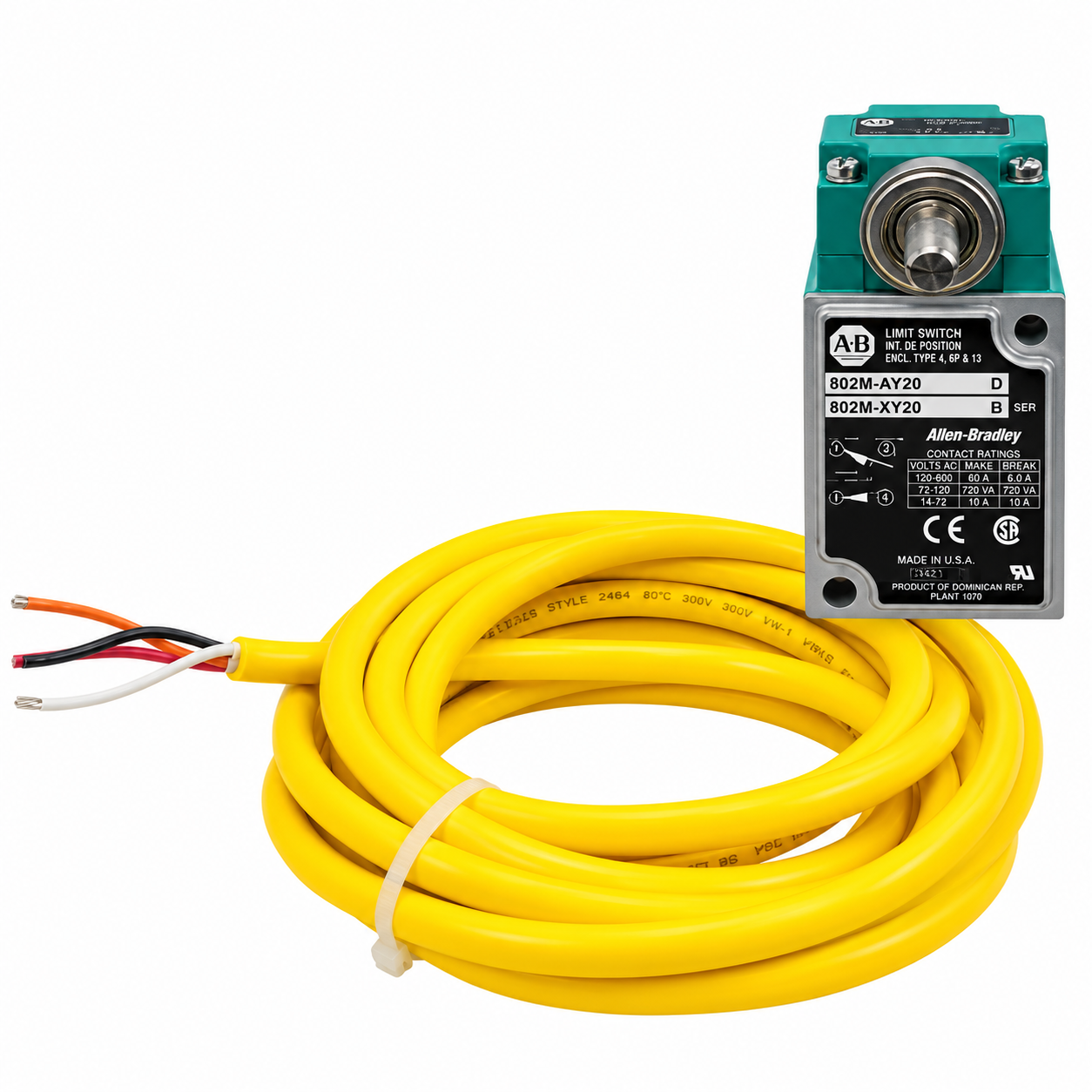

Allen-Bradley 802M-AY20 Factory-Sealed Limit Switch 20 ft Cable
- Regular price
- $405.00
- Sale price
- $405.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 802M-AY20
Description
The Allen-Bradley 802M-AY20 is a pre-wired, factory-sealed limit switch designed for industrial position sensing and machine-control applications. It features a spring-return lever actuator, two circuits, clockwise and counterclockwise operation, and a 20 ft (6.1 m) factory-installed cable.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Allen-Bradley |
| Category | Industrial Automation |
| Part Number | 802M-AY20 |
| Subcategory | Limit Switches / Position Switches |
| Product Type | Factory-Sealed Limit Switch |
| Actuation Type | Lever Type, Spring Return, Standard Trip |
| Number of Circuits | 2 |
| Operation | Clockwise and Counterclockwise |
| Cable Length | 20 ft / 6.1 m |
| Connection | Factory-installed cable |
| IP Rating | IP67 |
| Maximum Operating Torque | 0.34 Nm |
| Travel to Operate Contacts | 15° max. |
| Travel to Reset Contacts | 6° max. |
| Maximum Travel | 86° |
| Contact Rating | 1.1 A per pole @ 24 VDC; up to 600 VAC depending on rating |
| Operating Temperature | 0 to 80°C |
| Dimensions | Approx. 119 × 41.3 × 57.9 mm |
| Weight | 1.40 lb |
Information About 802M-AY20
The 802M-AY20 belongs to the Allen-Bradley 802M series of factory-sealed limit switches. Its complete-switch construction combines the actuator, switching mechanism, sealed housing, and factory-installed cable. The lever actuator provides standard-trip operation in both clockwise and counterclockwise directions. The switch has IP67 protection and NEMA 1, 4, 6P, and 13 enclosure ratings for industrial environments.
Key Features:
- Factory-Sealed Design: Complete pre-wired limit switch assembly.
- Spring-Return Lever: Standard-trip lever actuator for mechanical position sensing.
- Two Circuits: Provides two same-polarity switching circuits.
- 20 ft Cable: Includes approximately 6.1 m of factory-installed cable.
- Bidirectional Operation: Supports clockwise and counterclockwise actuation.
- IP67 Protection: Provides protection against dust and temporary water immersion.
- NEMA Protection: Rated NEMA 1, 4, 6P, and 13.
- Industrial Switching: Supports up to 600 V AC contact applications depending on rating.
The 802M-AY20 delivers the mechanical switching and environmental protection required for industrial position-sensing applications.
