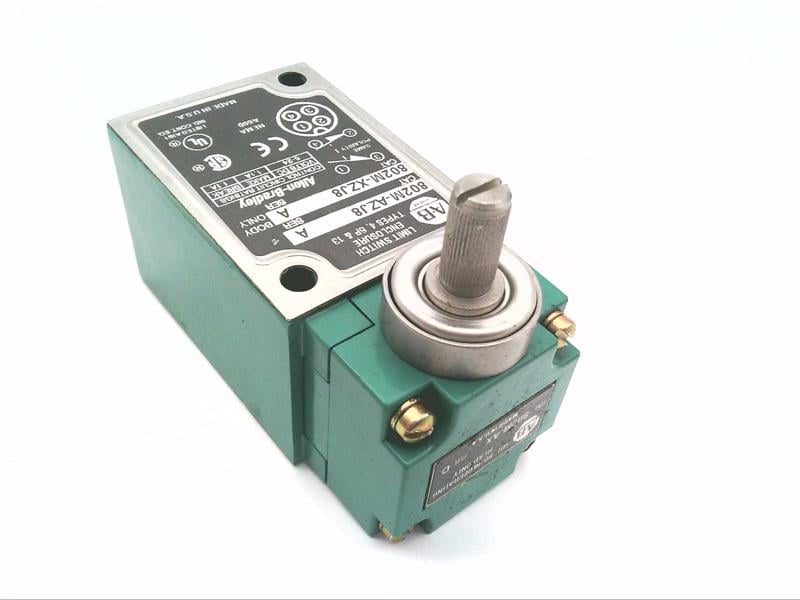

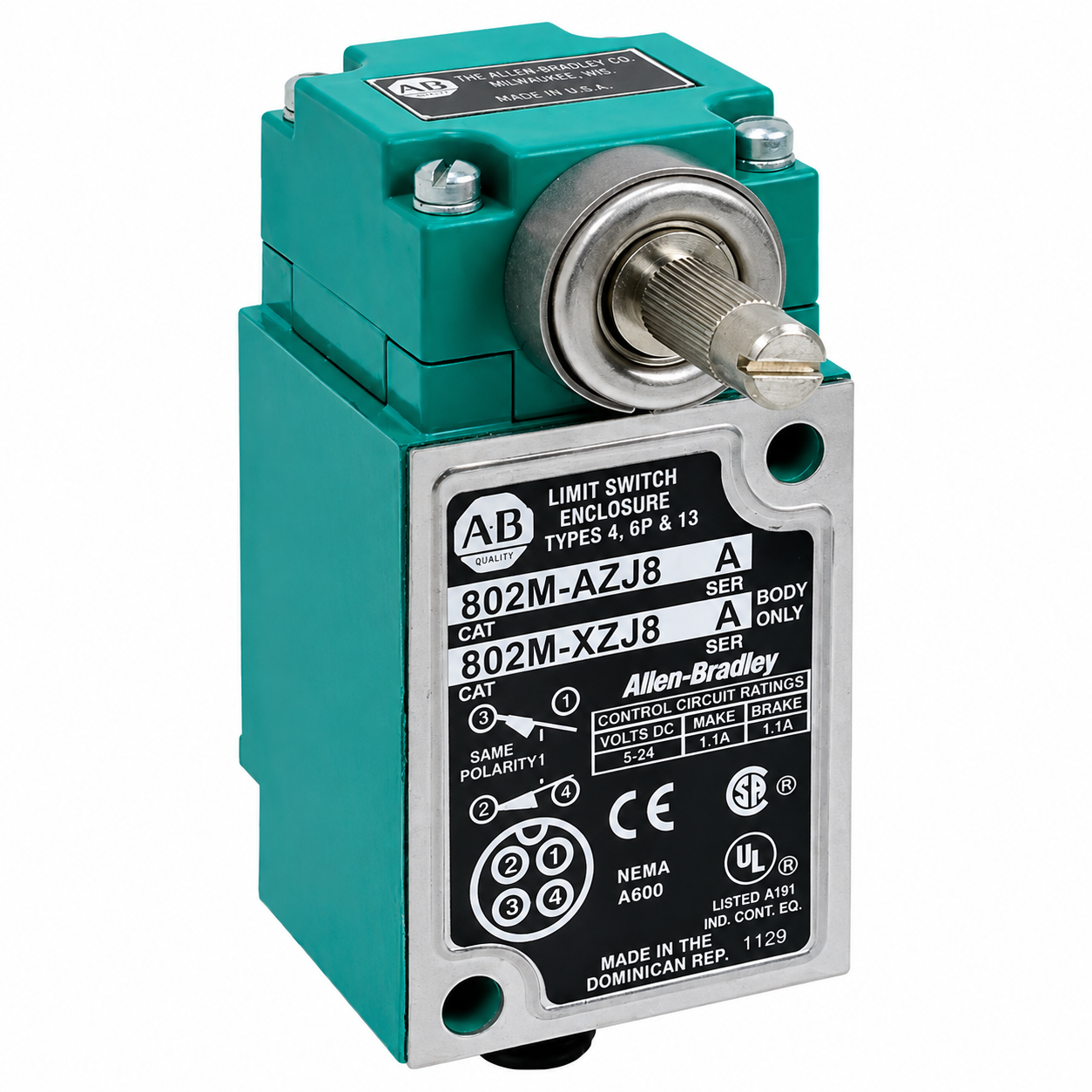

Allen-Bradley 802M-AZJ8 Factory-Sealed Spring-Return Limit Switch
- Regular price
- $499.00
- Sale price
- $499.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 802M-AZJ8
Description
The Allen-Bradley 802M-AZJ8 is a pre-wired, factory-sealed limit switch designed for position sensing and mechanical control applications. It features a lever-type spring-return actuator, two 24 VDC circuits, clockwise and counterclockwise operation, and a 4-pin Micro-Type receptacle with J8 wiring.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Allen-Bradley |
| Category | Industrial Automation |
| Part Number | 802M-AZJ8 |
| Subcategory | Limit Switches / Position Switches |
| Product Type | Factory-Sealed Limit Switch |
| Actuation Type | Lever Type, Spring Return |
| Number of Circuits | 2 circuits |
| Switch Voltage | 24 VDC |
| Operation | Clockwise and Counterclockwise |
| Connection | 4-Pin Micro-Type Receptacle, J8 Wiring |
| Maximum Travel | 86° |
| Travel to Operate Contacts | 15° maximum |
| Travel to Reset Contacts | 6° maximum |
| IP Rating | IP67 |
| NEMA Rating | NEMA 1, 4, 6P, 13 |
| Operating Temperature | 0 to 80°C |
| Dimensions | Approx. 119 × 41.3 × 57.9 mm |
| Weight | 0.77 lb |
Information About 802M-AZJ8
The 802M-AZJ8 belongs to the Allen-Bradley 802M series of factory-sealed limit switches. Its complete-switch construction combines the switching mechanism and sealed housing for use in industrial control applications. The spring-return lever supports standard trip operation in both clockwise and counterclockwise directions. Its IP67 protection and NEMA 1, 4, 6P, and 13 ratings provide protection for demanding industrial environments.
Key Features:
- Factory-Sealed Design: Pre-wired complete limit switch construction.
- Spring-Return Actuator: Lever-type mechanism for standard trip operation.
- Two Circuits: Provides two 24 VDC switching circuits.
- Bidirectional Operation: Supports clockwise and counterclockwise actuation.
- J8 Connection: Uses a 4-pin Micro-Type receptacle.
- IP67 Protection: Designed for protection against dust and temporary water immersion.
- Wide Travel Range: Maximum actuator travel of 86°.
- Industrial Construction: Compact cuboid housing measuring approximately 119 × 41.3 × 57.9 mm.
The 802M-AZJ8 delivers the reliability and precision required for industrial position sensing and limit-switch applications.
