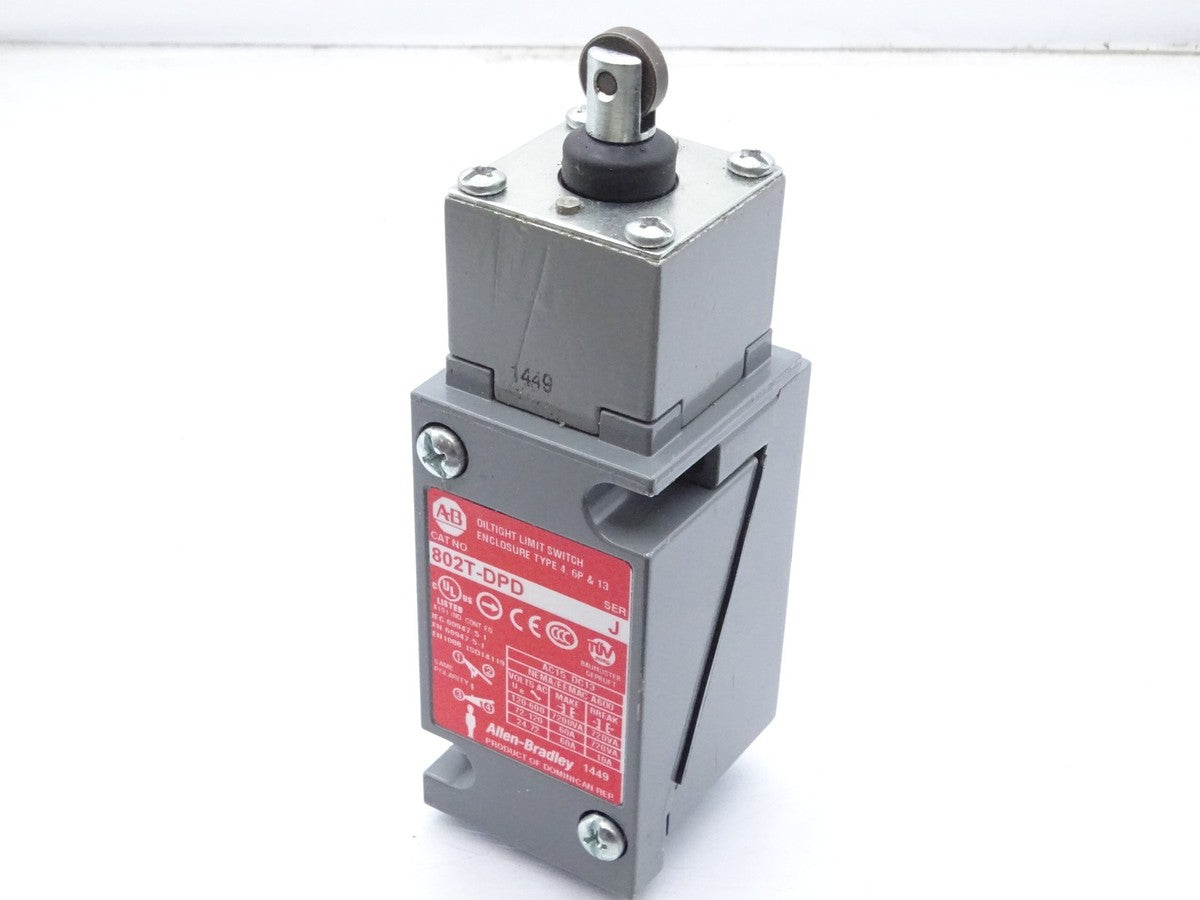

Allen-Bradley 802T-DPD Metal Plug-In Oiltight Limit Switch
- Regular price
- $335.00
- Sale price
- $335.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 802T-DPD
Description
The Allen-Bradley 802T-DPD is a metal plug-in oiltight limit switch designed for industrial position sensing and machine-control applications. It features a top push-roller actuator, two circuits, snap-acting low-energy contacts, and NEMA Type 4 and 13 oiltight construction.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Allen-Bradley |
| Category | Industrial Automation |
| Part Number | 802T-DPD |
| Subcategory | Limit Switches / Position Switches |
| Product Type | Metal Plug-In Oiltight Limit Switch |
| Actuator | Top Push Roller |
| Number of Circuits | 2 |
| Switch Action | Snap Acting, Low Energy |
| Electrical Rating | 24 VDC @ 1.1 A |
| Enclosure | Metal |
| Enclosure Rating | NEMA Type 4 and 13 |
| Construction | Plug-In |
| Travel to Operate Contacts | 1.17 mm nominal |
| Travel to Reset Contacts | 0.7 mm maximum |
| Maximum Travel | 6.0 mm |
| Maximum Operating Force | 28.47 N |
| Operating Temperature | -18°C to 110°C |
| Weight | 1.08 lb |
Information About 802T-DPD
The 802T-DPD belongs to the Allen-Bradley 802T plug-in limit switch family. Its complete-switch construction combines the metal enclosure, switching mechanism, and top push-roller actuator in one assembly. The switch uses snap-acting low-energy operation rated at 24 VDC and 1.1 A. Its oiltight enclosure is intended for industrial environments where protection from water and oil exposure is required.
Key Features:
- Top Push Roller: Provides mechanical actuation for position-sensing applications.
- Two-Circuit Design: Incorporates two switching circuits in the complete switch assembly.
- Snap-Acting Operation: Provides defined contact switching with low-energy operation.
- 24 VDC Rating: Low-energy contacts rated at 24 VDC and 1.1 A.
- Metal Enclosure: Provides a durable housing for industrial installations.
- NEMA Type 4 and 13: Provides watertight and oiltight enclosure protection.
- Plug-In Construction: Supports installation within the 802T plug-in limit-switch system.
- Defined Travel: 1.17 mm nominal travel to operate contacts and 6.0 mm maximum travel.
The 802T-DPD provides reliable mechanical position detection for industrial machinery and equipment-control applications.
