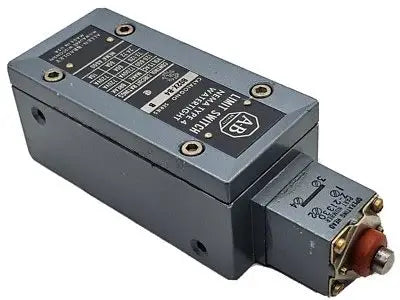

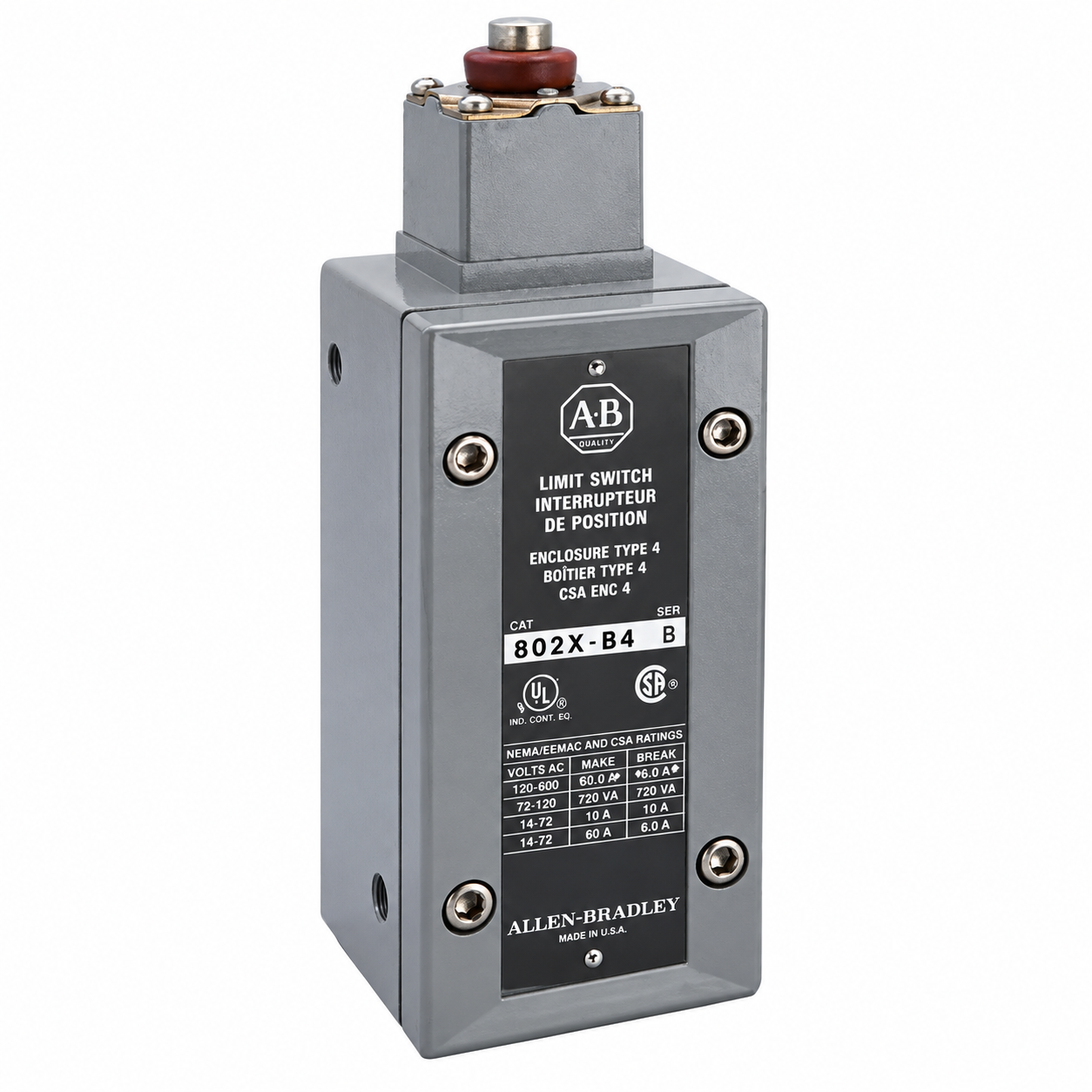

Allen-Bradley 802X-B4 Watertight Top Push Rod Limit Switch

Description

The Allen-Bradley 802X-B4 is a watertight limit switch designed for industrial position sensing and machine-control applications. It uses a top push-rod actuator, metal enclosure, and NEMA Type 4/13 oiltight construction for demanding industrial environments.

Technical Specifications

Information About 802X-B4

The 802X-B4 belongs to the Allen-Bradley 802X series of watertight limit switches. Its top push-rod mechanism uses standard snap-acting contacts for reliable mechanical switching. The metal enclosure is rated NEMA Type 4 for nonhazardous locations and is designed for environmental protection. The switch operates across a temperature range of -46°C to +121°C and supports industrial position-control applications.

Key Features:

• Top Push Rod: Provides direct mechanical actuation for position sensing.
• Snap-Action Contacts: Provides defined switching action.
• Metal Enclosure: Rugged housing for industrial installations.
• NEMA Type 4: Provides watertight enclosure protection.
• NEMA 13 Construction: Suitable for oiltight industrial environments.
• Operating Force: Maximum contact operating force of 15.6 N.
• Mechanical Travel: Maximum travel of 5.1 mm.
• Wide Temperature Range: Designed for operation from -46°C to +121°C.

The 802X-B4 delivers reliable mechanical switching for industrial position-sensing and equipment-control applications.
