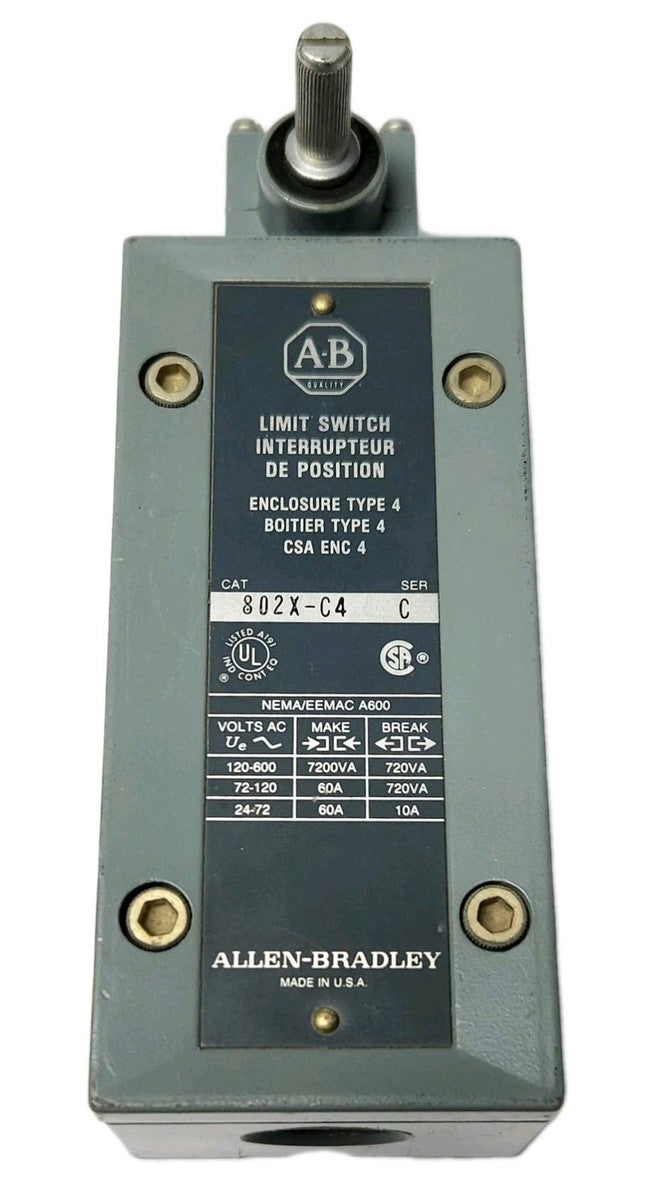

Allen-Bradley 802X-C4 Watertight Limit Switch
- Regular price
- $1,099.00
- Sale price
- $1,099.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 802X-C4
Description
The Allen-Bradley 802X-C4 is a watertight limit switch designed for industrial position-sensing and machine-control applications. It features a metal enclosure, side push-rod actuator, standard snap-action contacts, and NEMA Type 4 protection for demanding industrial environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Allen-Bradley |
| Category | Industrial Automation |
| Part Number | 802X-C4 |
| Subcategory | Limit Switches / Position Switches |
| Product Type | Watertight Limit Switch |
| Actuation Type | Side Push Rod |
| Contact Type | Standard Snap-Acting Contacts |
| Enclosure Material | Metal |
| Enclosure Rating | NEMA Type 4 |
| Conduit Connection | 1/2 in. NPT |
| Maximum Operating Force | 20 N |
| Travel to Operate Contacts | 3.2 mm max. |
| Travel to Reset Contacts | 1.5 mm max. |
| Maximum Travel | 5.5 mm |
| Dimensions | 162.05 × 57.15 × 55.83 mm |
| Operating Temperature | -46°C to +121°C |
| Weight | 0.9 kg |
Information About 802X-C4
The 802X-C4 is part of the Allen-Bradley 802X family of watertight and hazardous-location limit switches. Its metal cuboid housing is designed for NEMA Type 4/nonhazardous-location applications and provides protection against water and environmental exposure. The side push-rod mechanism operates the contacts with a maximum operating force of 20 N and maximum travel of 5.5 mm. The switch uses a 1/2-inch NPT conduit connection and is designed for industrial switching and position-detection applications.
Key Features:
- Watertight Enclosure: NEMA Type 4 construction for demanding industrial environments.
- Side Push-Rod Actuator: Provides direct mechanical actuation for position sensing.
- Snap-Action Contacts: Standard contacts provide defined switching operation.
- Metal Housing: Rugged cuboid enclosure for industrial installations.
- 20 N Operating Force: Maximum force required to operate the contacts.
- 5.5 mm Maximum Travel: Provides defined mechanical operating range.
- 1/2-Inch NPT Connection: Supports standard conduit installation.
- Wide Temperature Range: Side-push versions support operation from -46°C to +121°C.
The 802X-C4 delivers reliable mechanical position sensing for industrial machinery and equipment applications.
