AM227M-0000 | Beckhoff Servo Motor 0.13 kW 0.3 Nm
- Regular price
- $512.00
- Sale price
- $512.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: AM227M-0000
Description

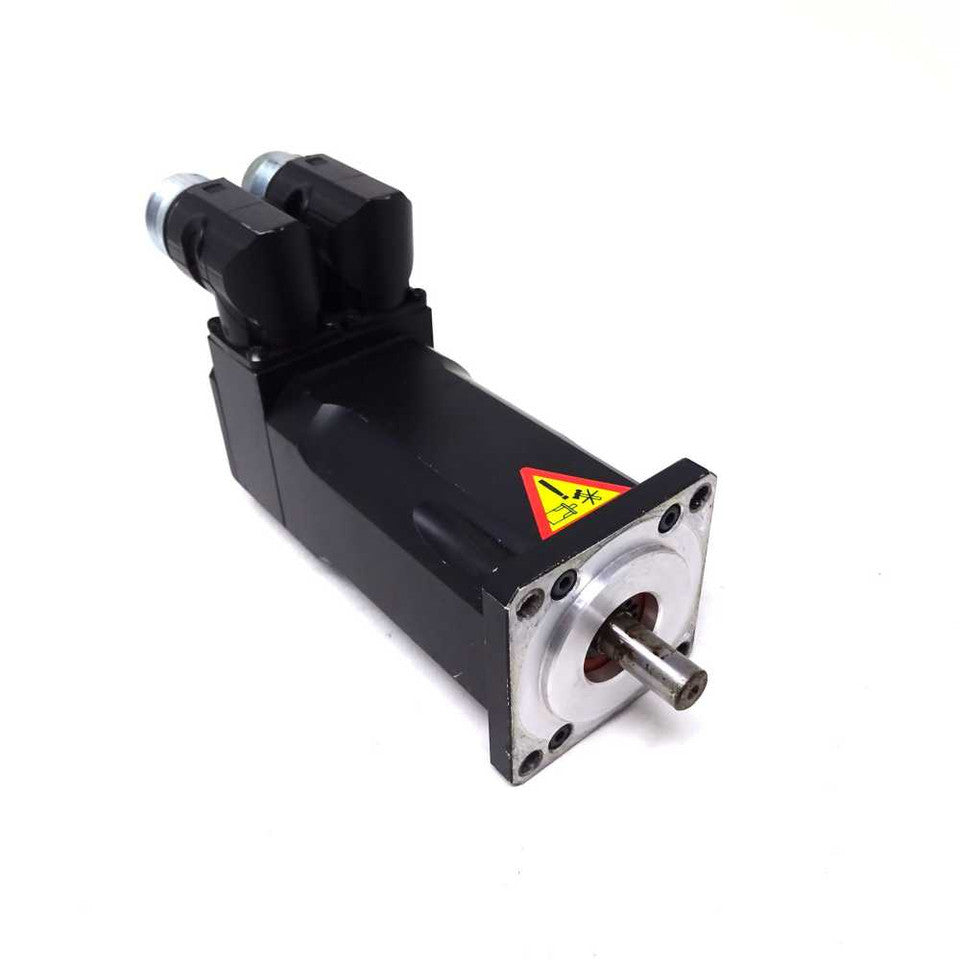

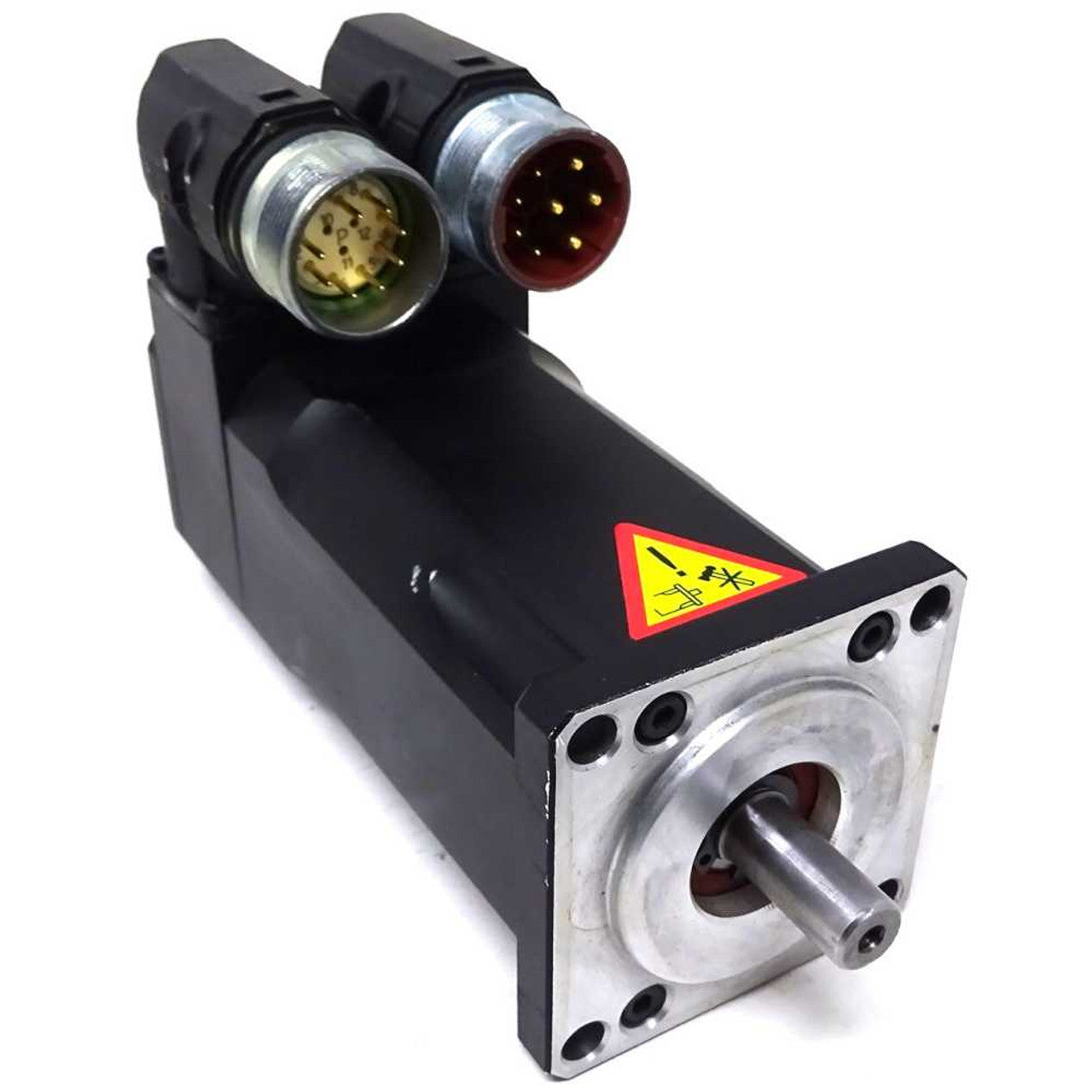

The Beckhoff AM227M-0000 is a compact servo motor delivering 0.13 kW rated power, 0.3 Nm torque, and 4000 RPM speed. Operating at 230 V with resolver feedback, it provides reliable performance for precise motion control in industrial automation.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Beckhoff |
| Category | Motors |
| Part Number | AM227M-0000 |
| Subcategory | Servo Motors |
| Motor Series | AM Servo Motor Series |
| Rated Power | 0.13 kW |
| Rated Speed | 4000 RPM |
| Rated Torque | 0.3 Nm |
| Standstill Torque | 0.32 Nm |
| Rated Current | 0.8 A RMS |
| Peak Current | 6.6 A |
| Voltage | 230 V (400/480 V supply variants available) |
| Frequency | 1000 Hz |
| Feedback Device | Resolver |
| Insulation Class | Class F |
| Protection Rating | IP64 |
| Cooling Method | Natural convection |
| Direct Drive | No |
| Dimensions | Compact servo housing, LP 050-M01-5-111-000 variant |
| Weight | Approx. 2 kg |
Information About AM227M-0000
The AM227M-0000 belongs to Beckhoff’s AM series of servo motors, developed for dynamic and reliable performance in automation and motion control applications. With a rated power of 0.13 kW, it delivers 0.3 Nm torque at speeds up to 4000 RPM, ensuring efficient and precise operation. The motor uses resolver-based feedback, providing robust position and speed detection even in demanding industrial environments. Built with IP64 protection and insulation class F, it offers durability and long service life while maintaining compact dimensions suitable for space-constrained installations.
Key Features:
-
Rated Power 0.13 kW: Provides consistent output for small-scale motion applications while ensuring efficient energy usage.
-
Rated Speed 4000 RPM: Enables fast and accurate positioning with stable motor dynamics.
-
Torque Output 0.3 Nm: Delivers reliable torque for precise motion tasks in automation systems.
-
Resolver Feedback: Uses a resolver for accurate and robust position detection, even in harsh conditions.
-
Wide Voltage Range: Operates at 230 V with compatibility to 400/480 V supply systems.
-
Industrial Protection: Built to IP64 standards with insulation class F for resistance to dust, moisture, and thermal stress.
-
Compact and Lightweight: Weighs only 2 kg, making it suitable for integration into space-limited designs.
-
Stable Thermal Design: Passive cooling ensures dependable performance without additional system complexity.
The AM227M-0000 delivers the reliability and precision required for compact servo-driven applications in industrial automation.
