AM8111-1F10-0000 | Beckhoff Servomotor 0.20 Nm 48V DC

Description

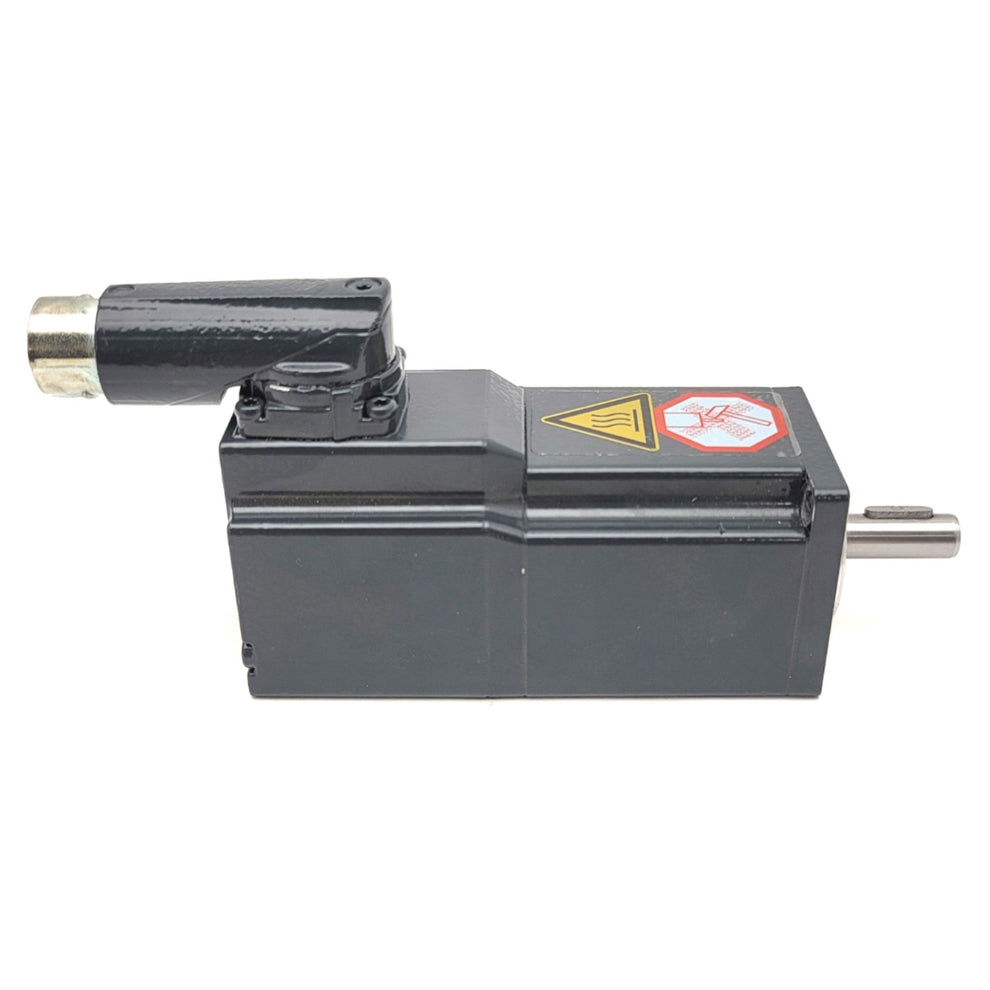

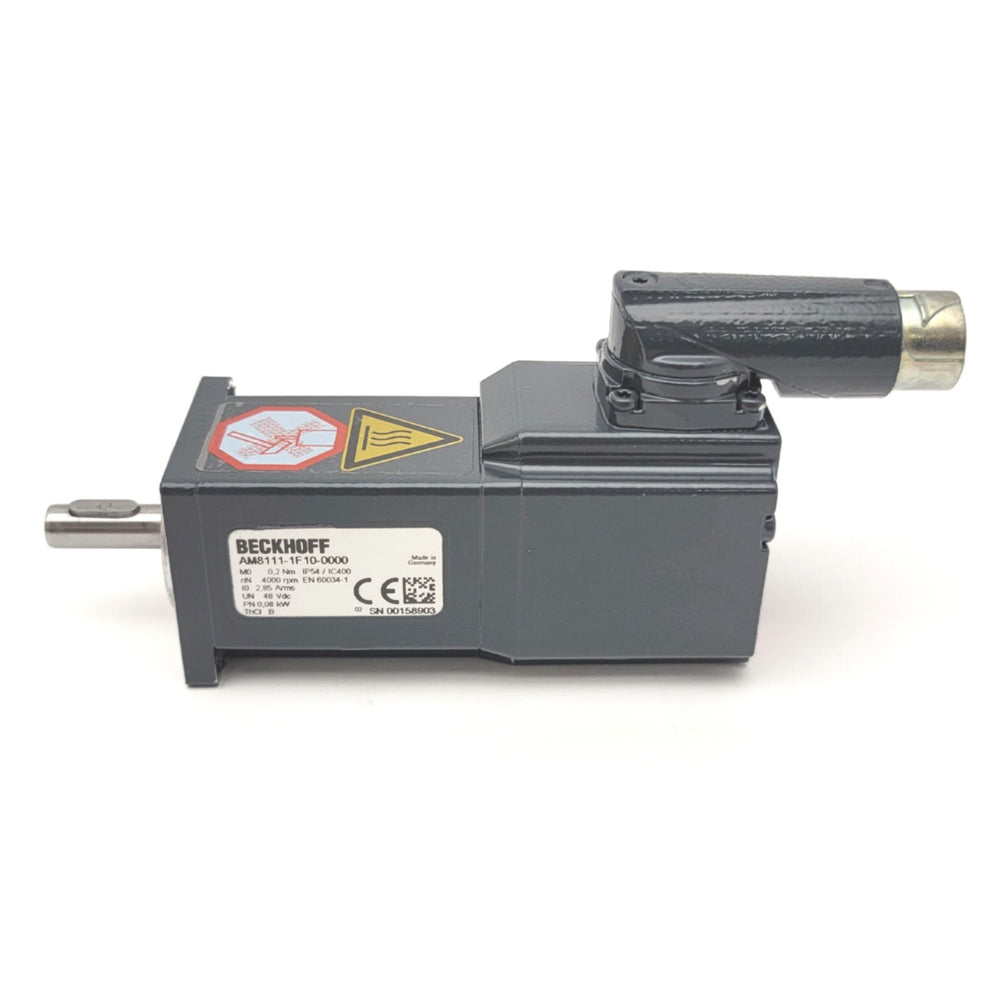

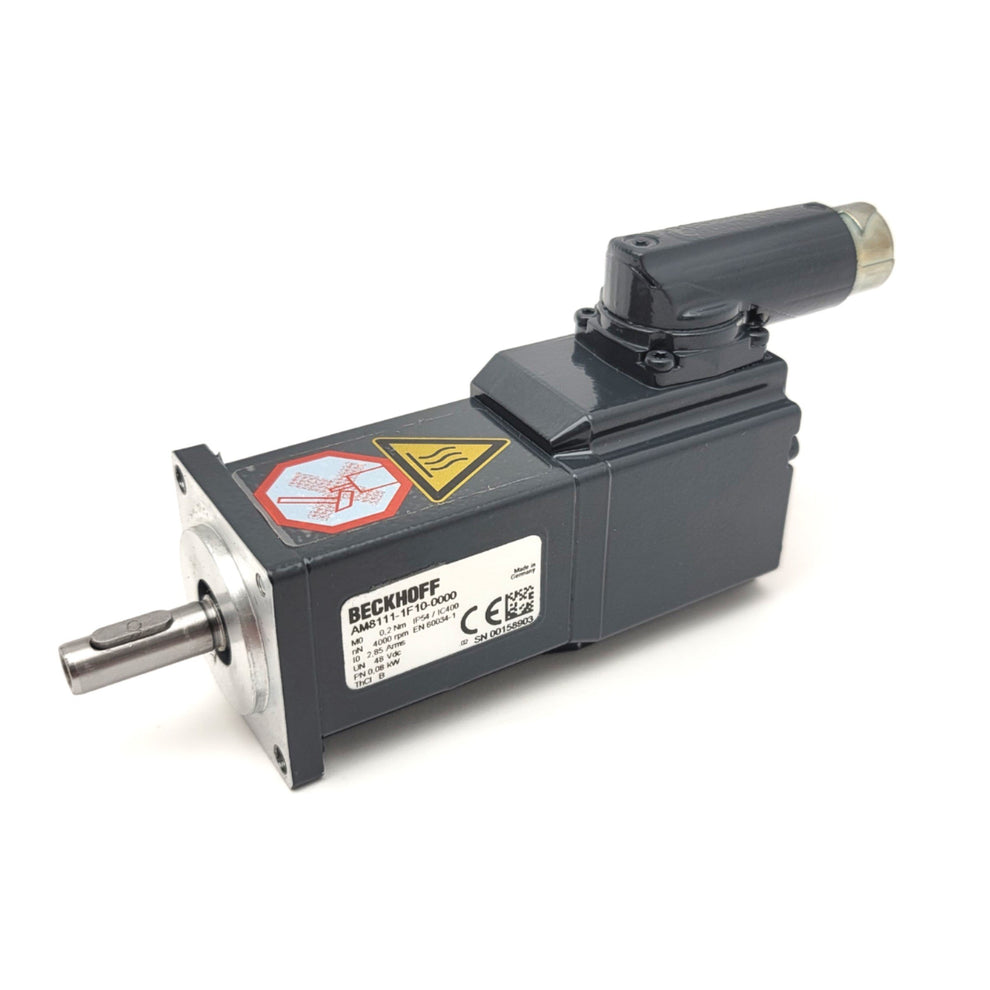

The Beckhoff AM8111-1F10-0000 is a compact servomotor engineered for precise motion control in automation systems. Operating at 48V DC with a rated torque of 0.20 Nm and 4000 RPM speed, it ensures accuracy and reliability in dynamic applications.

Technical Specifications

Information About AM8111-1F10-0000

The AM8111-1F10-0000 is part of the Beckhoff AM8000 servomotor series, a family of motors designed for efficient, compact, and reliable motion control in modern automation. This model uses advanced One Cable Technology (OCT), which combines power and feedback into a single connection, reducing cabling complexity and installation time. Built with a 40 mm frame size and an 8 mm shaft, it is optimized for applications where space is limited but performance must remain consistent. The servomotor supports a rated torque of 0.20 Nm, a maximum speed of 4000 RPM, and features robust current handling, ensuring dependable operation in dynamic and demanding systems.

Key Features:

• Rated Torque 0.20 Nm: Provides a continuous torque output of 0.20 Nm, which allows the motor to deliver stable and reliable performance in applications requiring precise and controlled movements without loss of accuracy.

• High Speed 4000 RPM: Achieves a nominal rotational speed of 4000 RPM, enabling quick acceleration and positioning, which is critical for automation processes that demand fast cycle times and high responsiveness.

• 48V DC Power Supply: Operates on a nominal voltage of 48V DC, making it suitable for low-voltage environments while still ensuring safe operation and maintaining energy efficiency across different load conditions.

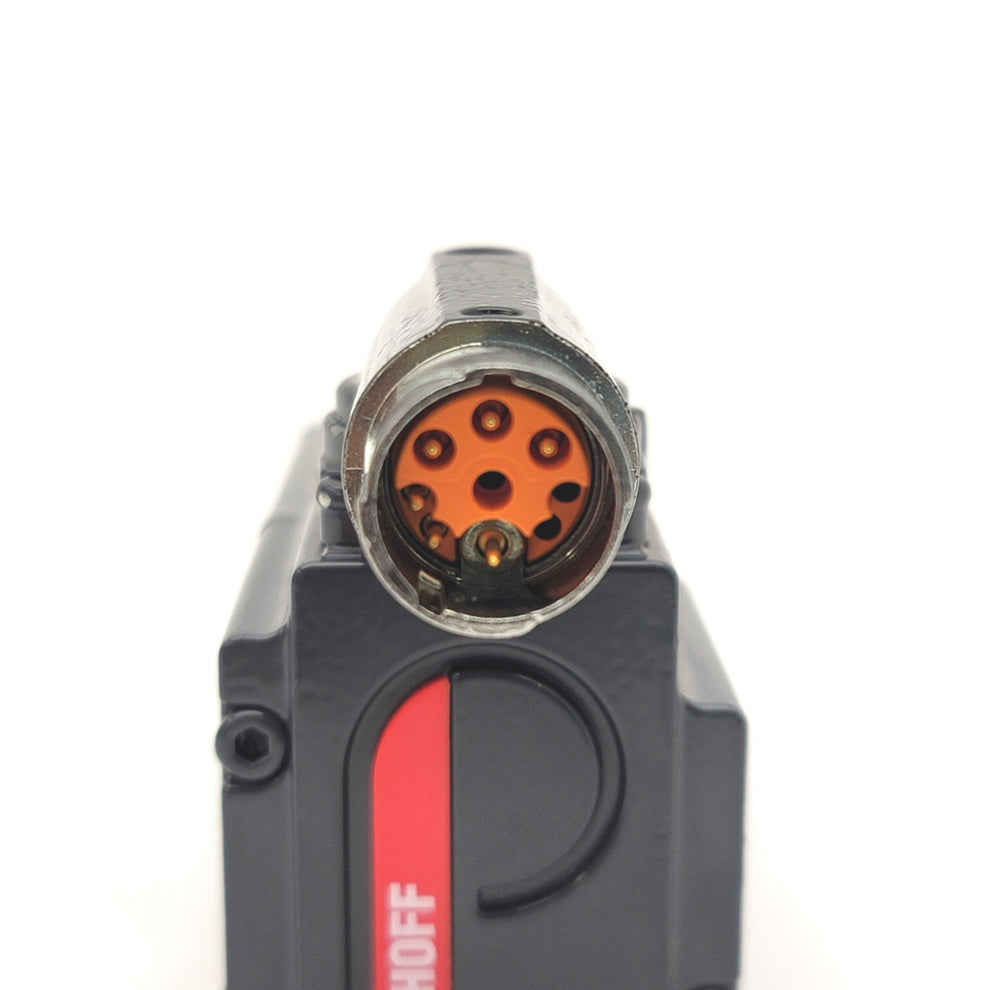

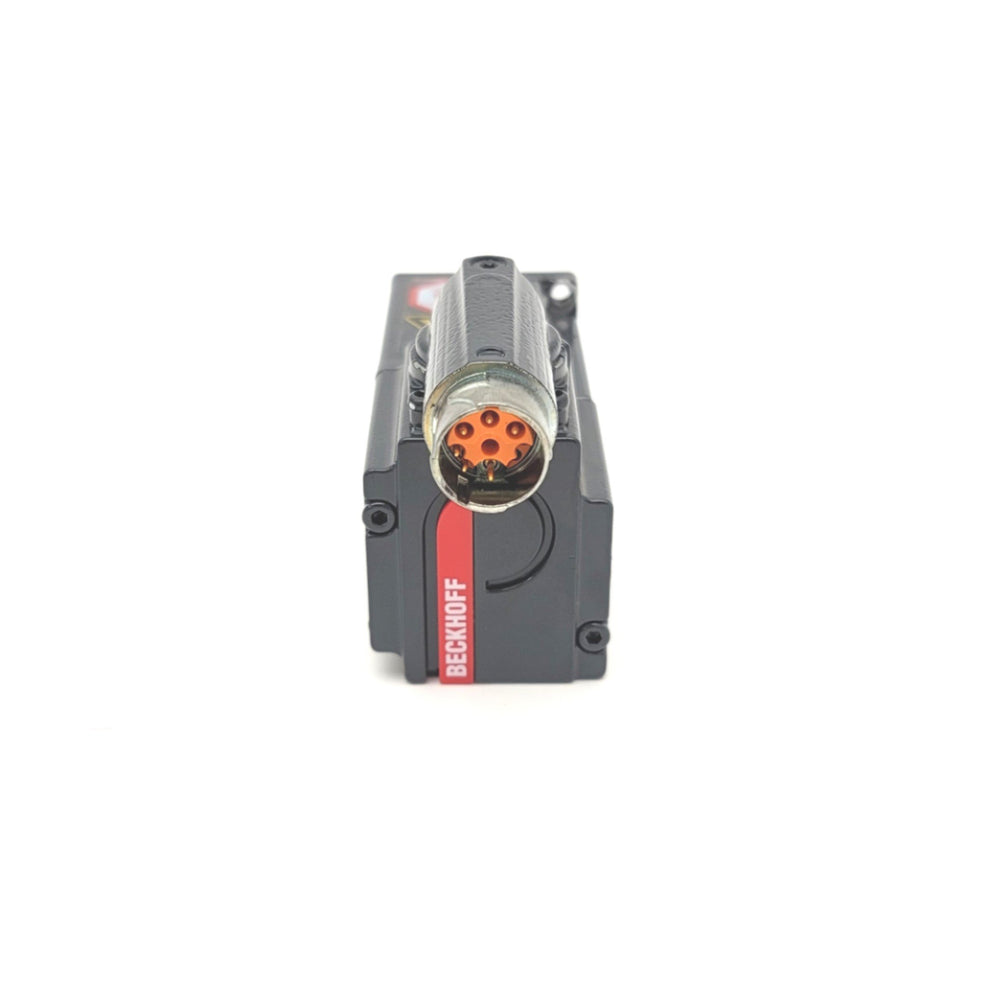

• One Cable Technology (OCT): Integrates both power supply and feedback signals into a single cable, reducing wiring complexity, minimizing installation time, and lowering maintenance requirements in industrial setups.

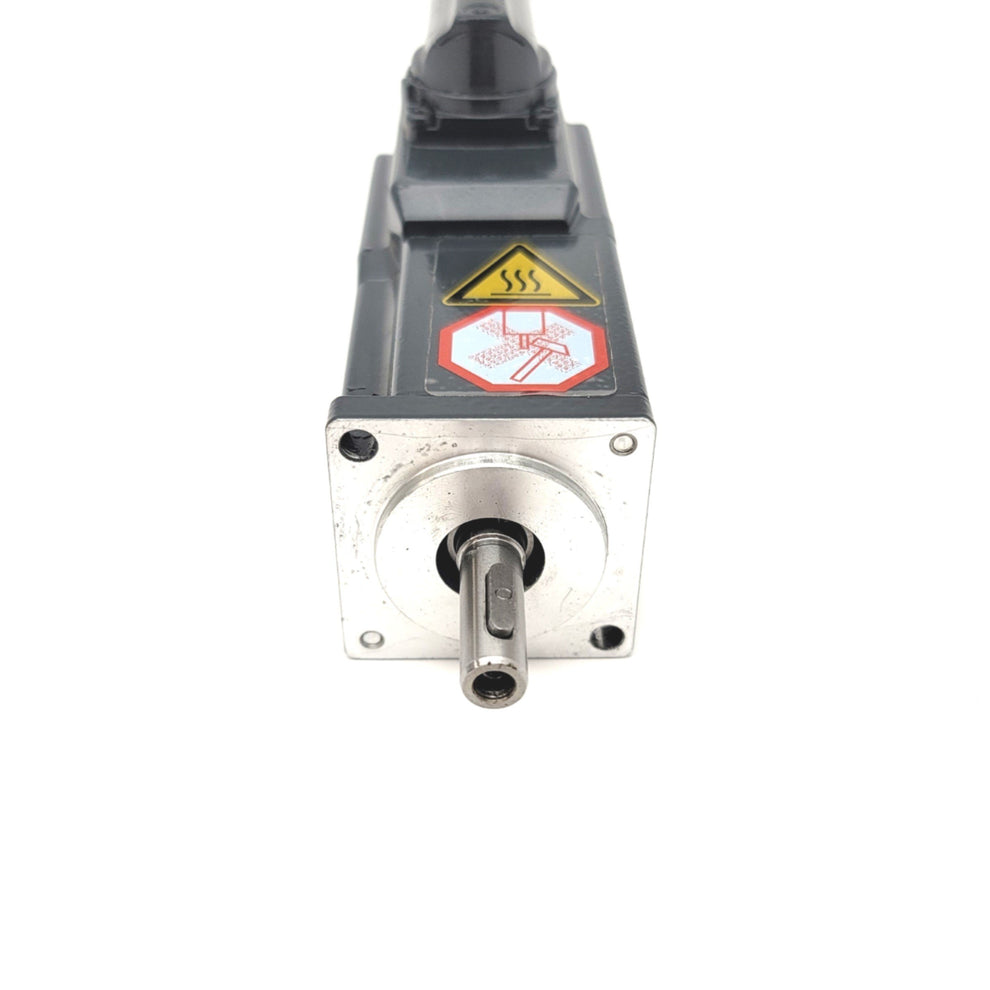

• Compact 40 mm Frame: Features a 40 mm frame size combined with an 8 mm shaft, making it an excellent choice for installations where space is limited but mechanical strength and performance must not be compromised.

• Standstill and Peak Current Ratings: Handles a continuous current of 2.85 A at standstill and supports peak currents up to 8.6 A, ensuring reliable torque delivery even under demanding dynamic load conditions.

• Lightweight 0.08 kg Design: Weighs only 0.08 kg, which reduces inertia and mechanical load on connected equipment, making it suitable for high-dynamic systems that require quick motion response.

• Durable AM8000 Series Construction: Built as part of Beckhoff’s AM8000 servomotor series, it combines efficient thermal management, robust materials, and long service life for demanding industrial use.

The AM8111-1F10-0000 delivers the reliability and precision required for compact automation systems and high-performance servo-driven applications.
