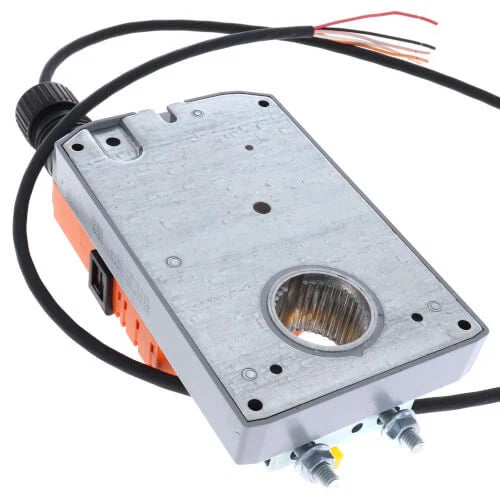

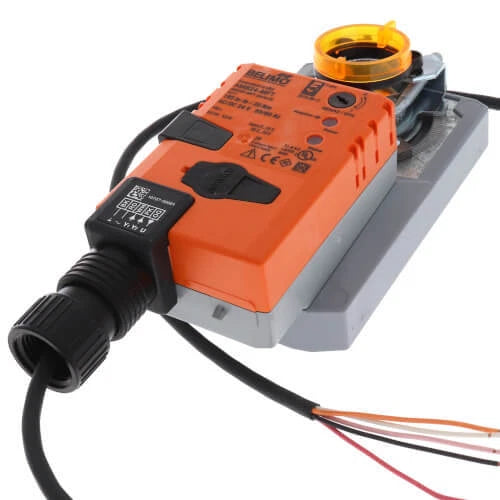

AMB24-MFT | Belimo Programmable Non Spring Return Damper Actuator 180 In Lb 24V
- Regular price
- $495.00
- Sale price
- $495.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: AMB24-MFT
Description
The Belimo AMB24-MFT is a non spring return damper actuator designed to deliver 180 in-lb (20 Nm) of torque for precise modulating airflow control. It operates on AC/DC 24 V power and features MFT programmable functionality to support multiple control modes and signal types.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Belimo |
| Category | Dampers & Actuators |
| Part Number | AMB24-MFT |
| Subcategory | Damper Actuators |
| Nominal Voltage | AC/DC 24 V |
| Nominal Frequency | 50/60 Hz |
| Voltage Range | AC 19.2…28.8 V / DC 21.6…28.8 V |
| Power Consumption (Operation) | 3.5 W |
| Power Consumption (Rest) | 1.3 W |
| Transformer Sizing | 6 VA |
| Control Signal | MFT programmable, 2…10 V |
| Input Impedance | 100 kΩ (2…10 V), 500 Ω (4…20 mA), 1500 Ω (PWM/On-Off/Floating) |
| Operating Modes | VDC, PWM, On/Off, Floating Point |
| Position Feedback | 2…10 V |
| Torque Output | 180 in-lb (20 Nm) |
| Angle of Rotation | Max. 95°, adjustable |
| Running Time (Motor) | 90…350 s / 90° |
| Electrical Connection | 18 AWG plenum cable, 1 m, 1/2" NPT |
| Degree of Protection | IP54 / NEMA 2 |
| Ambient Temperature | -30…50°C |
| Weight | 2.6 lb (1.2 kg) |
Information About AMB24-MFT
The AMB24-MFT is part of Belimo’s AM series of multi-functional damper actuators engineered for flexible and reliable HVAC airflow control. It incorporates Belimo MFT technology, allowing field configuration of control signals, operating ranges, and actuator response to match system requirements. The actuator is designed for non fail-safe applications where powered positioning is maintained without spring return action. Electronic overload protection throughout the full rotation range and a compact, sealed housing support long-term dependable operation in commercial HVAC installations.
Key Features
- Non Spring Return Operation: Provides powered damper positioning without fail-safe spring action, suitable for applications where return on power loss is not required.
- MFT Programmable Control Technology: Supports multiple control modes including 2…10 V, 4…20 mA, PWM, on/off, and floating point for broad system compatibility.
- 20 Nm Constant Torque Output: Delivers stable 180 in-lb torque to ensure reliable control of medium-sized air dampers under varying load conditions.
- Configurable Control Range: Adjustable start and end points allow precise matching of actuator response to control system requirements.
- Integrated Position Feedback: Supplies a variable 2…10 V feedback signal for continuous damper position monitoring and closed-loop control.
- Electronic Overload Protection: Protects internal components throughout the full 0…95° rotation range from mechanical overload or obstruction.
- Manual Override Push Button: Enables local damper positioning during commissioning, testing, or maintenance without tools.
The AMB24-MFT delivers the reliability and precision required for programmable modulating airflow control in non fail-safe HVAC damper applications.
