AMETEK XHR40-25M106 40 V 25 A Programmable DC Power Supply
- Regular price
- $819.00
- Sale price
- $819.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: XHR40-25M106
Description
AMETEK XHR40-25M106 is a bench DC power supply with an adjustable output of 0–40 V and 0–25 A. It delivers up to 1,000 W for testing and powering electronic equipment.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | AMETEK |
| Category | Test and Measurement Equipment |
| Part Number | XHR40-25M106 |
| Subcategory | Programmable DC Power Supplies |
| Product Type | Bench DC power supply |
| Output Voltage | 0–40 VDC |
| Output Current | 0–25 A |
| Maximum Output Power | 1,000 W |
| AC Input Voltage | 85–250 VAC |
| Input Frequency | 47–63 Hz |

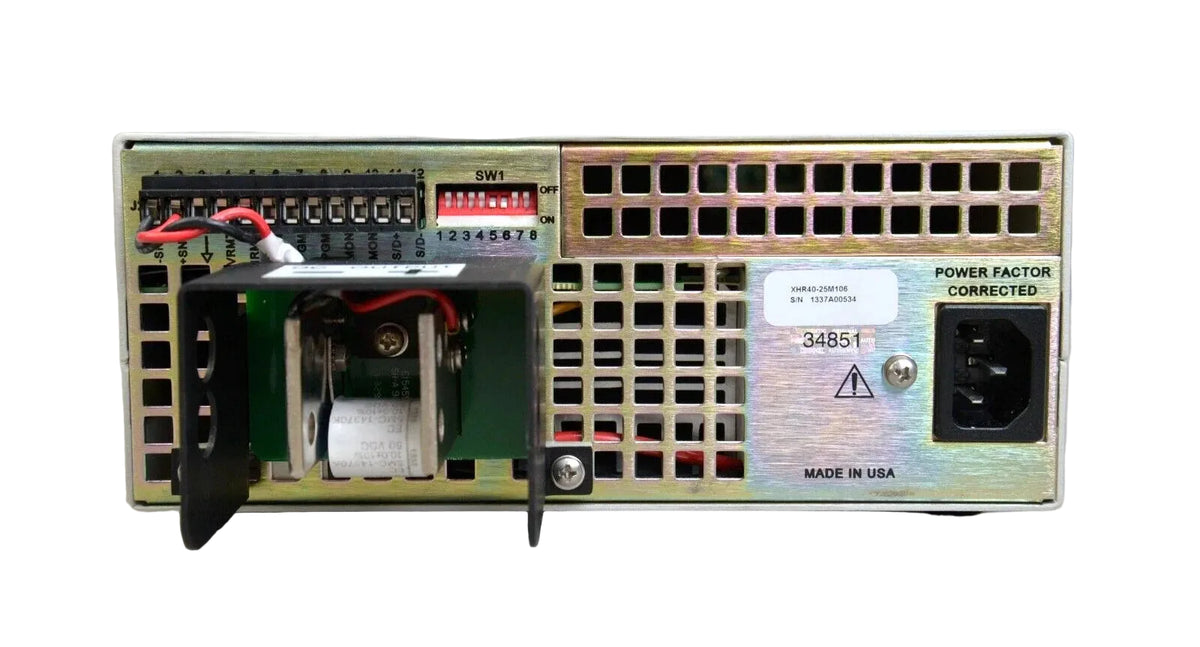

| Output Connections | Front binding posts and rear bus bars |
| Dimensions | 18.8 × 8.5 × 3.4 in |
| Weight | 14 lb |
Information About XHR40-25M106

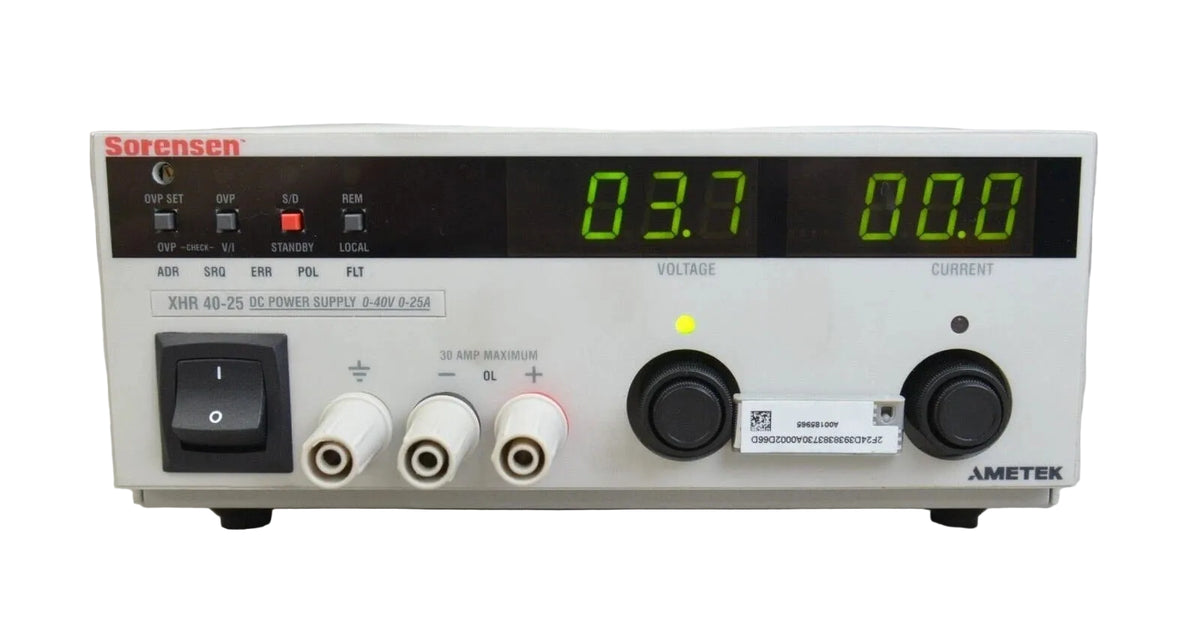

The XHR40-25M106 is part of the XHR series of programmable power supplies associated with the Sorensen product line. It accepts 85–250 VAC input at 47–63 Hz and provides adjustable DC output. Front-panel voltage and current controls have locking knobs, and the unit includes front binding posts and rear bus-bar outputs. Overtemperature shutdown and overvoltage protection support operation in laboratory and equipment-service settings.
Key Features:
- Adjustable DC Output: Sets voltage from 0 to 40 V and current from 0 to 25 A.
- 1,000 W Output: Provides up to 1 kW of DC power for test and equipment applications.
- Wide AC Input: Accepts 85–250 VAC input at 47–63 Hz.
- Locking Front Controls: Uses locking voltage and current knobs to help retain set values.
- Dual Output Connections: Provides front-panel binding posts and rear bus-bar outputs.
- Soft-Switching Design: Uses zero-voltage switching to reduce switching transients.
The XHR40-25M106 delivers the reliability and precision required for adjustable DC power in testing and laboratory applications.
