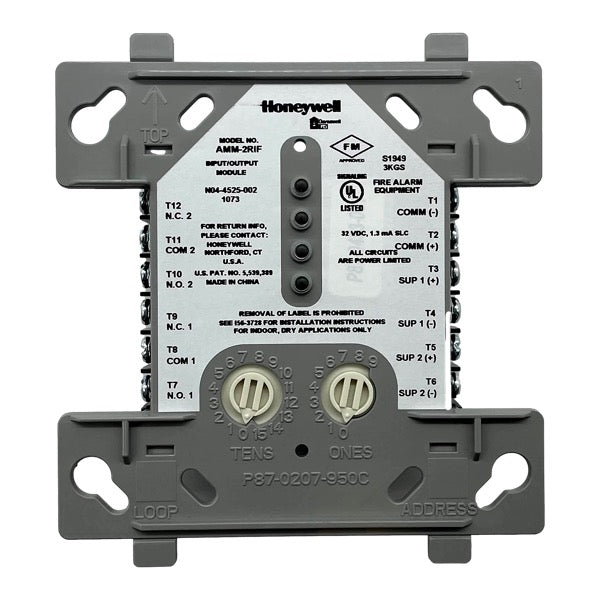

AMM-2RIF | Gamewell-FCI Addressable Dual Input/Output Module with Velocitiยฎ Protocol
- Regular price
- $215.00
- Sale price
- $215.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: AMM-2RIF
Descriptionย
The Gamewell-FCI AMM-2RIF is an intelligent addressable input/output module designed to provide both monitoring and control functions within advanced fire alarm systems. This compact module features dual input and output capabilities, allowing it to supervise external devices and control fans, dampers, or relays based on system logic. Engineered for versatility and reliability, the AMM-2RIF is ideal for commercial, institutional, and industrial applications where precise fire system integration is required.
ย
ย
Technical Specificationsย
| Condition | New/Never Used Surplus |
| Brand | Gamewell-FCI |
| Category | Fire Safety |
| Part Number | AMM-2RIF |
| Subcategory | Addressable Input/Output Module |
| Series | Velocitiยฎ Series |
| Inputs | Two Class B (supervised) input circuits |
| Outputs | Two Form C relay contacts |
| Relay Rating | 3A @ 30VDC (resistive load) |
| Communication Protocol | Velocitiยฎ addressable protocol |
| Address Range | Rotary switch selectable (01โ159) |
| LED Indicators | Bi-color (green/red) per circuit |
| Mounting | Standard 4-inch square electrical box |
| Operating Voltage | 15โ32 VDC |
| Operating Temperature | 32ยฐF to 120ยฐF (0ยฐC to 49ยฐC) |
| Humidity Range | 10% to 93% non-condensing |
| Compliance | UL Listed, NFPA 72 compliant |
| Weight | 2.14 lbs |
ย
Information About AMM-2RIF
The AMM-2RIF is part of Gamewell-FCIโs Velocitiยฎ Series of intelligent fire alarm system components. It combines two supervised Class B input circuits and two Form C relay outputs in a single addressable unit, simplifying installation and reducing wiring. Each input and output has an independent bi-color LED for clear visual status indication, while rotary address switches provide fast and accurate configuration. Designed for compatibility with Gamewell-FCI E3 and S3 fire alarm control panels, the module ensures dependable communication over the SLC loop and seamless integration into modern life safety systems.
Key Features:
- Dual Monitor Inputs: Supports two Class B input circuits for monitoring contact-based devices such as pull stations and waterflow switches.
- Dual Relay Outputs: Provides two Form C relays capable of controlling external equipment like dampers, fans, or auxiliary systems.
- Velocitiยฎ Protocol Support: Enables intelligent addressable communication with Gamewell-FCI control panels.
- Independent Status LEDs: Features separate LEDs for each circuit, providing clear visual indication of normal, alarm, and trouble conditions.
- Rotary Address Configuration: Includes rotary decimal switches for easy and precise address setup.
- Compact Mounting Design: Fits standard 4-inch electrical boxes for space-efficient installation.
- Wide Application Range: Ideal for commercial and industrial environments requiring flexible input/output control.
- UL Listed and Compliant: Meets industry standards for fire safety and electronic reliability.
The AMM-2RIF delivers the reliability and precision required for modern addressable fire detection and building management systems.
