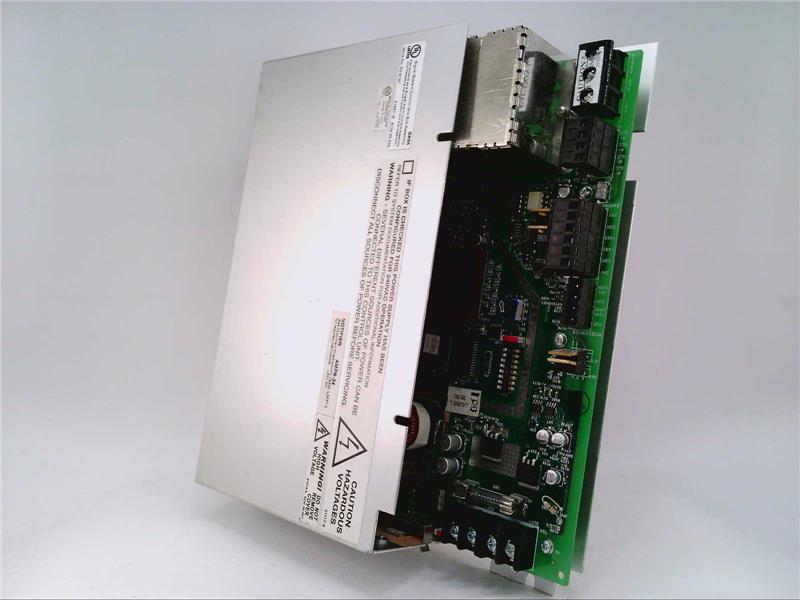

AMPS-24 | Notifier Addressable Power Supply and Battery Charger, 120 VAC, 24 VDC Outputs
- Regular price
- $994.00
- Sale price
- $994.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: AMPS-24
Description
The Notifier AMPS-24 is an addressable power supply and battery charger designed for use with NFS-3030 and NFS2-3030 fire alarm control panels. Operating on 120 VAC, it provides up to three regulated 24 VDC outputs and supports both FlashScan® and CLIP communication protocols. The AMPS-24 ensures reliable auxiliary power distribution and battery charging for fire alarm and life safety systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Notifier |
| Category | Power Supplies |
| Part Number | AMPS-24 |
| Subcategory | Power Supply |
| Input Voltage | 120 VAC, 50/60 Hz |
| Output Voltage | Up to three 24 VDC outputs |
| Communication | FlashScan® and CLIP via isolated SLC interface |
| Battery Charging | 7 AH to 200 AH sealed lead-acid batteries |
| Selectable Charge Current | 1.0 A, 2.0 A, or 5.0 A |
| Auxiliary Outputs | 24V @ 0.5A and 5V @ 0.15A |
| Supervision Features | AC loss, charger, and battery monitoring |
| Low Battery Protection | Disconnect of deeply-discharged batteries |
| AC Loss Reporting | Delay configurable for fault signaling |
| Trouble Reporting | Five-point diagnostic reporting |
| Enclosure Options | CAB-4, EQ Series, BB-25, BB-100, BB-200 |
| Wiring Size | 10 AWG (5.26 mm²) to 22 AWG (0.326 mm²) |
| Battery Fuse | 15 A, fast-acting |
| Weight | 6.93 lbs |
Information About AMPS-24
The AMPS-24 is an addressable auxiliary power supply module from Notifier, built for integration with NFS-3030/NFS2-3030 fire alarm control panels. It functions as both a remote charger and general-purpose power supply, charging sealed lead-acid batteries from 7 to 200 AH with selectable current levels. The module communicates through an isolated Signaling Line Circuit (SLC) interface and provides comprehensive supervision, including AC loss detection, brownout monitoring, and low battery disconnect. Compatible with multiple cabinet types such as CAB-4, EQ Series, BB-25, BB-100, and BB-200, the AMPS-24 is a versatile and dependable power solution for expanding system capacity.
Key Features:
- Addressable Power Module: Recognized by Notifier fire alarm panels using FlashScan® or CLIP protocol.
- Flexible Power Outputs: Provides up to three regulated 24 VDC outputs for system components.
- Battery Charging Support: Charges 7 to 200 AH sealed lead-acid batteries with selectable charging currents.
- SLC Integration: Communicates via an isolated SLC loop for panel monitoring and control.
- Comprehensive Supervision: Monitors AC input, charger status, and battery condition with trouble reporting.
- Brownout and AC Loss Detection: Ensures reliable power monitoring and fault notification.
- Programmable Settings: Configurable parameters via USB Type B interface for installation customization.
- Cabinet Compatibility: Mounts in CAB-4, EQ Series, or BB-series enclosures for flexible installation.
The AMPS-24 delivers the reliability and expandability required for fire alarm systems demanding auxiliary power and intelligent battery charging.
