AN-X2-AB-DHRIO | Allen-Bradley ProSoft Technology EtherNet/IP to Remote I/O or DH+ Gateway
AN-X2-AB-DHRIO | Allen-Bradley ProSoft Technology EtherNet/IP to Remote I/O or DH+ Gateway
Part #: AN-X2-AB-DHRIO Manufactured by: Allen-Bradley

AN-X2-AB-DHRIO | Allen-Bradley ProSoft Technology EtherNet/IP to Remote I/O or DH+ Gateway

Regular price
$2,999.00
Sale price
$2,999.00
Regular price
Never Used Surplus
16 in Stock
Shipping calculated at checkout.
Product Overview
The AN-X2-AB-DHRIO module is an Allen-Bradley network connector module. It helps to connect ControlLogix PLCs with the rem...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
IQElectro LLC BBB Business Review
warranty
Product comes with IQElectro 2-Year Warranty
Warranty for item #: AN-X2-AB-DHRIO
IQElectro offers a complimentary 2-year warranty on all our products. This ensures that every purchase you make from IQElectro is a reliable and trustworthy investment for the future of your company. Warranty Terms
IQElectro is NOT an authorized distributor for Allen-Bradley
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.
AN-X2-AB-DHRIO | Allen-Bradley ProSoft Technology EtherNet/IP to Remote I/O or DH+ Gateway
    AN-X2-AB-DHRIO | Allen-Bradley ProSoft Technology EtherNet/IP to Remote I/O or DH+ Gateway
AN-X2-AB-DHRIO | Allen-Bradley ProSoft Technology EtherNet/IP to Remote I/O or DH+ Gateway
Return/Exchange within 30-Days.
If any product is damaged upon delivery, you may request an Exchange or Refund within 30 days of receiving your order.
2-3 Day Free Shipping
IQElectro provides free shipping within 2-3 days from the moment the order is placed on our website.

Product Description P/N: AN-X2-AB-DHRIO

Description / Specifications

Description

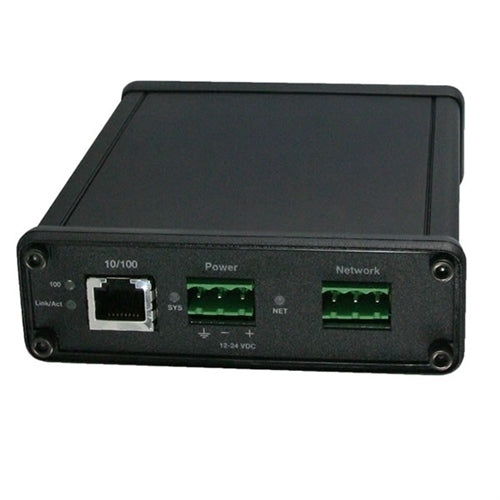

The AN-X2-AB-DHRIO is an Ethernet /IP to Allen-Bradley Remote I/O / Data Highway Plus (DH+) gateway module that is manufactured by Prosoft Technology. This module allows ControlLogix or CompactLogix controllers that utilizes Ethernet / IP communication to communicate with PLC, SLC 500, PanelView, Drives and Flex I/O adapter modules that are capable of Remote I/O (RIO) or Data Highway Plus (DH+) communication protocol. This module provides has 1 RJ45 10/100 Mbps Ethernet port and Two (2) 3-pin phoenix connector for power supply and DH+ / RIO network connection.



Technical Specifications



Brand Allen-Bradley
Series ControlLogix
Part Number AN-X2-AB-DHRIO
Product Type Communication module
Description Network Connector
Supported Protocols Ethernet I/P; Remote I/O (RIO); Data Highway Plus (DH+)
Baud Rate 57.6 to 230.4 kbaud
Rack Number 0 to 76 octal
No. of Ports One (1) 10/100 mbps Ethernet I/P; One (1) Remote I/O (RIO) / Data Highway Plus (DH+)
Power Consumption 200 milliamps
Power supply 24 VDC
Voltage 12 Volts DC
Supported Ethernet devices ControlLogix; CompactLogix
Current 100 milliamps
Supported RIO / DH+ devices PLC, SLC 500, PanelView, Drives and Flex I/O Adapter modules
Power Dissipation 2.4 Watts
Mounting DIN Rail / Desktop
RJ 45 Port Present
No. of supported RIO modules 32 racks
No. of supported drives Up to Four (4) Ethernet I/P drives
No. of supported HMI Up to Eight (8) PanelView on the same network
Operating Temp 32°F to 122°F (0 ºC to 50 ºC)
Storage Temperature -40°F to 185°F (-40 ºC to 85 ºC)
Dimensions 107 mm x 126 mm x 34 mm (4.18 in x 4.97 in x 1.33 in) not including connectors





Information About AN-X2-AB-DHRIO

The AN-X2-AB-DHRIO is a communication module that is manufactured by Prosoft Technology, an Allen-Bradley encompass partner company. This communication device is a small and compact device that supports desktop or DIN rail mounting. It allows modern Programmable Automation Controllers (PAC) such as the Allen-Bradley’s ControlLogix and CompactLogix controller to communicate with devices that utilizes the legacy Remote I/O (RIO) and Data Highway Plus (DH+) communication protocols.

The AN-X2-AB-DHRIO comes with One (1) Ethernet I/P communication interface that supports 10/100 mbps data transmission rate. This port connects PAC ports to the gateways while the 3-pin Phoenix network connector available to the AN-X2-AB-DHRIO permits daisy-chain connection of devise such as Allen-Bradley’s PLC, SLC 500, PanelView, Drives and Flex I/O adapter modules. This communication interface supports configurable data transfer rate including 57.6, 115.2, and 230.4 K baud. It also comes with another 3-pin Phoenix connector for termination of an external 24 VDC power supply.

The AN-X2-AB-DHRIO is also provided with a built-in Web server that allows remote monitoring and configuration of this gateway. Other supported operations that can be initiated over the web server are diagnostics data display, configuration, upload configuration files, and setting of the operation mode. This can be done over a standard web browser.

The AN-X2-AB-DHRIO is ideal for use in integration to modern control systems of legacy devices as well as cost-effective migration of mature and obsolete products. It permits continued utilization of these devices without the need of complete replacement, providing customers a flexible and practical alternative solution to existing automation requirements.

The AN-X2-AB-DHRIO module is an Allen-Bradley Ethernet/IP to DH+ or RIO network connector. This communication module from the ControlLogix series helps to connect a ControlLogix PLC or other compatible device to the Allen-Bradley Remote I/O network. The communication module comes with 1 I/O channel. It supports all Remote I/O baud rates from 57.6 to 230.4 kbaud. The module supports rack numbers from 0 to 76 octal. This utility maps the remote I/O data to the ControlLogix scheduled data. The module connects with the ControlLogix processor by using a scheduled connection over the Ethernet. The front of the communication module has 2 LED indicators to show the status of the connection of the Ethernet, and another LED to show the module’s internal communication state.

The operating temperature of the Allen-Bradley AN-X2-AB-DHRIO ControlLogix communication module should be set between 0 and 50 degrees Celsius. It can be easily mounted using a DIN rail. The AN-X2-AB-DHRIO module has a power consumption rating of 200 milliamps with a voltage rating of 12 Volts DC or 100 milliamps with 24 Volts DC. This communication module has a maximum power dissipation rating of 2.4 Watts. The AN-X2-AB-DHRIO module helps to replace existing Remote I/O PLCs. It helps to build new controller programs without interrupting existing control systems and it minimizes downtime. It comes with an auto configuration utility that discovers the baud rate and maps discrete I/O to reduce configuration errors. The communication module is equipped with a single RJ 45 10/100 Mbps Ethernet port, 1 Phoenix 3-pin power connector, and a single phoenix 3-pin network connector.



Manufacturer information

Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.

Warrany image

IQElectro 2 Year Warranty

IQElectro offers a 2-Year Warranty on all our products. This complimentary two-year warranty ensures that every purchase from IQElectro is a secure investment in the future of your company.
Warranty Terms
warningIQElectro is not an authorized distributor.
IQElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses. Some hardware products may contain software and firmware and may not be legally operated without first obtaining an appropriate license from the manufacturer. IQElectro makes no representation as to whether a product will or will not have software or firmware and, if it does, whether the software or firmware is the revision level that you need for your application. IQElectro also makes no representations as to your ability or right to download or otherwise obtain software or firmware for the product from the Original Manufacturer, its distributors, or any other source. IQElectro also makes no representations as to your right to install any such software or firmware on the product. IQElectro will not obtain or supply software or firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing software or firmware. Customer acknowledges and agrees that IQElectro DOES NOT provide any software, firmware, operating system, or right-to-use licenses with the products it sells. Customers understand and agree that proper software (firmware) licensing, maintenance, and upgrades are subject to the applicable manufacturer's Licensing Agreement or similar document. Disclaimer Policy.
Description / Specifications

Description

The AN-X2-AB-DHRIO is an Ethernet /IP to Allen-Bradley Remote I/O / Data Highway Plus (DH+) gateway module that is manufactured by Prosoft Technology. This module allows ControlLogix or CompactLogix controllers that utilizes Ethernet / IP communication to communicate with PLC, SLC 500, PanelView, Drives and Flex I/O adapter modules that are capable of Remote I/O (RIO) or Data Highway Plus (DH+) communication protocol. This module provides has 1 RJ45 10/100 Mbps Ethernet port and Two (2) 3-pin phoenix connector for power supply and DH+ / RIO network connection.



Technical Specifications



Brand Allen-Bradley
Series ControlLogix
Part Number AN-X2-AB-DHRIO
Product Type Communication module
Description Network Connector
Supported Protocols Ethernet I/P; Remote I/O (RIO); Data Highway Plus (DH+)
Baud Rate 57.6 to 230.4 kbaud
Rack Number 0 to 76 octal
No. of Ports One (1) 10/100 mbps Ethernet I/P; One (1) Remote I/O (RIO) / Data Highway Plus (DH+)
Power Consumption 200 milliamps
Power supply 24 VDC
Voltage 12 Volts DC
Supported Ethernet devices ControlLogix; CompactLogix
Current 100 milliamps
Supported RIO / DH+ devices PLC, SLC 500, PanelView, Drives and Flex I/O Adapter modules
Power Dissipation 2.4 Watts
Mounting DIN Rail / Desktop
RJ 45 Port Present
No. of supported RIO modules 32 racks
No. of supported drives Up to Four (4) Ethernet I/P drives
No. of supported HMI Up to Eight (8) PanelView on the same network
Operating Temp 32°F to 122°F (0 ºC to 50 ºC)
Storage Temperature -40°F to 185°F (-40 ºC to 85 ºC)
Dimensions 107 mm x 126 mm x 34 mm (4.18 in x 4.97 in x 1.33 in) not including connectors





Information About AN-X2-AB-DHRIO

The AN-X2-AB-DHRIO is a communication module that is manufactured by Prosoft Technology, an Allen-Bradley encompass partner company. This communication device is a small and compact device that supports desktop or DIN rail mounting. It allows modern Programmable Automation Controllers (PAC) such as the Allen-Bradley’s ControlLogix and CompactLogix controller to communicate with devices that utilizes the legacy Remote I/O (RIO) and Data Highway Plus (DH+) communication protocols.

The AN-X2-AB-DHRIO comes with One (1) Ethernet I/P communication interface that supports 10/100 mbps data transmission rate. This port connects PAC ports to the gateways while the 3-pin Phoenix network connector available to the AN-X2-AB-DHRIO permits daisy-chain connection of devise such as Allen-Bradley’s PLC, SLC 500, PanelView, Drives and Flex I/O adapter modules. This communication interface supports configurable data transfer rate including 57.6, 115.2, and 230.4 K baud. It also comes with another 3-pin Phoenix connector for termination of an external 24 VDC power supply.

The AN-X2-AB-DHRIO is also provided with a built-in Web server that allows remote monitoring and configuration of this gateway. Other supported operations that can be initiated over the web server are diagnostics data display, configuration, upload configuration files, and setting of the operation mode. This can be done over a standard web browser.

The AN-X2-AB-DHRIO is ideal for use in integration to modern control systems of legacy devices as well as cost-effective migration of mature and obsolete products. It permits continued utilization of these devices without the need of complete replacement, providing customers a flexible and practical alternative solution to existing automation requirements.

The AN-X2-AB-DHRIO module is an Allen-Bradley Ethernet/IP to DH+ or RIO network connector. This communication module from the ControlLogix series helps to connect a ControlLogix PLC or other compatible device to the Allen-Bradley Remote I/O network. The communication module comes with 1 I/O channel. It supports all Remote I/O baud rates from 57.6 to 230.4 kbaud. The module supports rack numbers from 0 to 76 octal. This utility maps the remote I/O data to the ControlLogix scheduled data. The module connects with the ControlLogix processor by using a scheduled connection over the Ethernet. The front of the communication module has 2 LED indicators to show the status of the connection of the Ethernet, and another LED to show the module’s internal communication state.

The operating temperature of the Allen-Bradley AN-X2-AB-DHRIO ControlLogix communication module should be set between 0 and 50 degrees Celsius. It can be easily mounted using a DIN rail. The AN-X2-AB-DHRIO module has a power consumption rating of 200 milliamps with a voltage rating of 12 Volts DC or 100 milliamps with 24 Volts DC. This communication module has a maximum power dissipation rating of 2.4 Watts. The AN-X2-AB-DHRIO module helps to replace existing Remote I/O PLCs. It helps to build new controller programs without interrupting existing control systems and it minimizes downtime. It comes with an auto configuration utility that discovers the baud rate and maps discrete I/O to reduce configuration errors. The communication module is equipped with a single RJ 45 10/100 Mbps Ethernet port, 1 Phoenix 3-pin power connector, and a single phoenix 3-pin network connector.



Manufacturer information

Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.
