AN-X4-AB-DHRIO | ProSoft EtherNet/IP to DH+ Gateway
- Regular price
- $3,692.00
- Sale price
- $3,692.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: AN-X4-AB-DHRIO
Description
The ProSoft AN-X4-AB-DHRIO is an EtherNet/IP to DH+ gateway designed to bridge modern Ethernet-based control systems with legacy Allen-Bradley Data Highway Plus (DH+) networks. It supports flexible migration strategies and features integrated diagnostics and configuration tools via a built-in web server. This model is DIN rail mountable and powered via a Phoenix 3-pin connector.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | ProSoft |
| Category |
Computer
|
| Part Number | AN-X4-AB-DHRIO |
| Subcategory | Networking Router |
| Protocols Supported | EtherNet/IP, Data Highway Plus (DH+) |
| Ethernet Port | 1× RJ45 10/100 Mbps |
| Power Requirements | 240 mA @ 12 VDC or 120 mA @ 24 VDC |
| Power Connector | Phoenix 3-pin |
| Web Server Access | Yes (Diagnostics, Configuration, Mode) |
| Mounting Type | DIN Rail (Top Hat Rail) |
| Status Indicators | LED-based |
| Enclosure Dimensions (W×H×D) | 107 × 98 × 34 mm |
| Power Consumption | 2.9 W |
| Weight | 1.10 lbs |
Information About AN-X4-AB-DHRIO

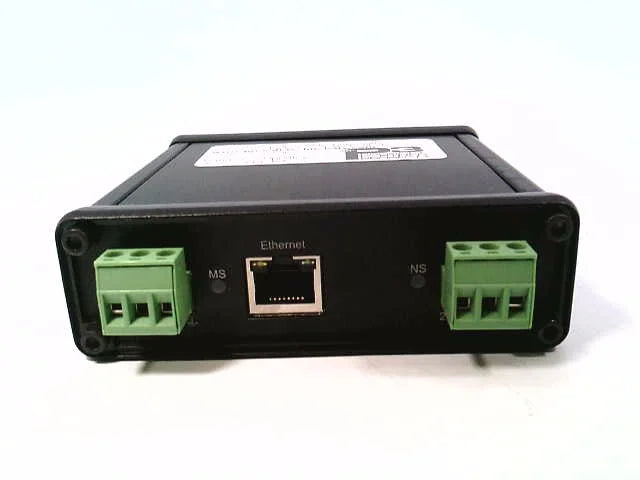

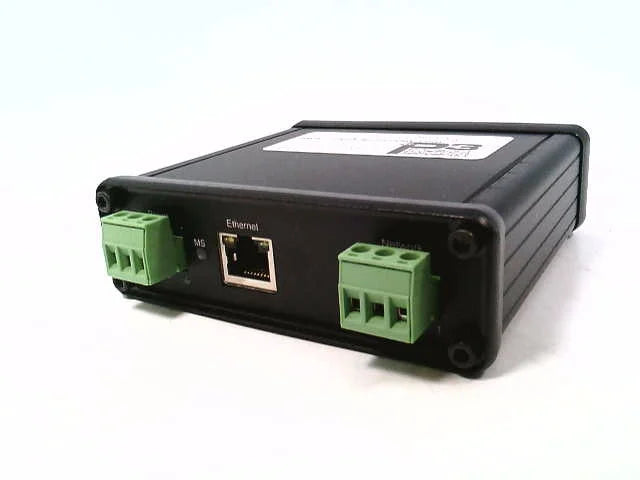

The AN-X4-AB-DHRIO is a powerful migration gateway that enables phased replacement of older Allen-Bradley PLCs, HMIs, and Flex I/O adapters with newer EtherNet/IP-based automation components. By supporting both EtherNet/IP and DH+ protocols, it acts as a seamless intermediary between new and legacy systems. This gateway includes a 10/100 Mbps RJ45 Ethernet port and Phoenix-style 3-pin connectors for both power and DH+ network connections. Its built-in web server simplifies commissioning and maintenance by allowing users to view real-time diagnostics, update configurations, and switch operational modes remotely. Though discontinued, it remains a robust tool for industries requiring transitional infrastructure support. Compact in size and DIN-rail mountable, the unit is well-suited for control panels and retrofit environments.
Key Features:
- EtherNet/IP to DH+ Bridging: Connects modern EtherNet/IP controllers to legacy Allen-Bradley DH+ devices for staged migration.
- Integrated Web Server: Offers browser-based access to diagnostics, configuration uploads, and mode selection.
- Multi-Mode Operation: Supports configuration-specific modes tailored for PLCs, drives, HMIs, or Flex I/O adapters.
- DIN Rail Mounting: Compact footprint and mounting compatibility simplify installation in control cabinets.
- Standard RJ45 Ethernet Port: Provides 10/100 Mbps connectivity to modern network infrastructure.
- Phoenix Power and Network Connectors: Ensures secure, tool-free electrical connections for both power and DH+.
- Efficient Power Consumption: Operates at just 2.9 W, drawing 240 mA @ 12VDC or 120 mA @ 24VDC.
- Reliable Legacy Support: Maintains operation of older control systems during transition to Ethernet-based architectures.
- LED Status Indicators: Simplify troubleshooting and network monitoring at a glance.
- Compact Industrial Design: Durable build, measuring only 107 mm × 98 mm × 34 mm, ideal for high-density enclosures.
The AN-X4-AB-DHRIO provides a secure and versatile bridge between legacy and modern control systems, supporting gradual migration without compromising production uptime.
