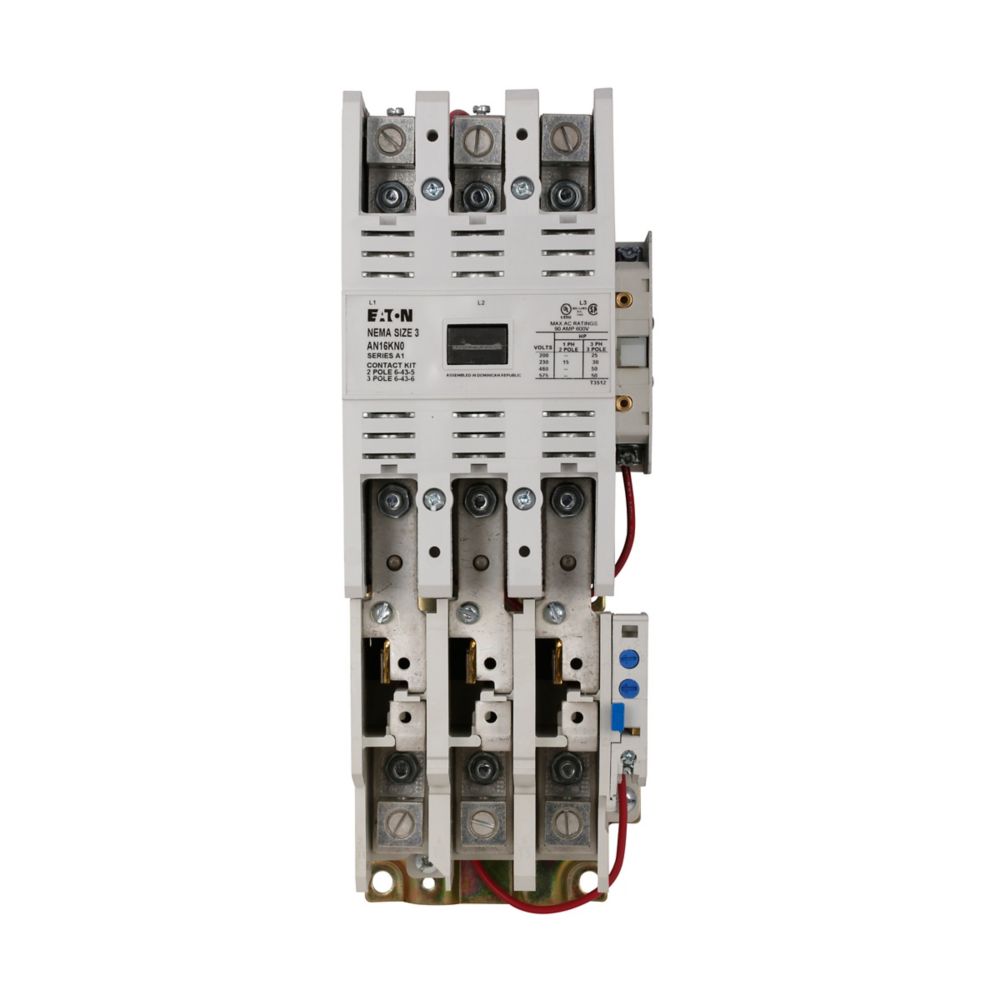

AN16KN0A | Eaton Freedom Series 3-Pole 90A 600V Non-Reversing Motor Starter
- Regular price
- $1,172.00
- Sale price
- $1,172.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: AN16KN0A
Description
The Eaton AN16KN0A is a non-reversing, full-voltage motor starter engineered for demanding three-phase applications requiring reliable motor control. Operating at up to 600 volts with a 90-amp rating, it supports a wide range of industrial motor loads with stable performance.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Eaton |
| Category | Contactors & Starters |
| Part Number | AN16KN0A |
| Subcategory | Starter |
| Family | Freedom Series |
| Type | AN16 |
| Voltage | 600 V |
| Coil Voltage Min | 110 V (50 Hz) |
| Coil Voltage Max | 120 V (60 Hz) |
| Amperage | 90 A |
| Phase | 3 |
| NEMA Rating | Size 3 |
| Poles | 3 |
| Starter Type | Non-Reversing |
| Construction | Open Type |
| Overload Protection | Bi-Metallic |
| Horsepower Rating @ 208V | 25 hp |
| Horsepower Rating @ 240V | 30 hp |
| Horsepower Rating @ 480V | 50 hp |
| Horsepower Rating @ 600V | 50 hp |
| Horsepower Rating @ 380V 50Hz | 50 hp |
| Service-Limit Current Rating | 104 A |
| Application | Motor control in Freedom Series systems |
| Function | Full-voltage across-the-line starter |
Information About AN16KN0A
The AN16KN0A is a full-voltage, non-reversing motor starter designed within Eaton’s Freedom Series to support reliable control of industrial three-phase motors. Built as a NEMA Size 3 device, it handles substantial motor loads with a 90-amp capacity and is suitable for a wide range of voltage environments up to 600 volts. Its AC coil accommodates both 110V 50 Hz and 120V 60 Hz control circuits, making it adaptable to varied installation requirements. The inclusion of a bi-metallic overload relay provides the necessary protection to safeguard motors under overload conditions while maintaining stable operation within Freedom Series motor control assemblies.
Key Features
- NEMA Size 3 configuration: Supports higher-capacity motors in industrial environments.
- Non-reversing starter design: Provides full-voltage across-the-line starting for three-phase systems.
- 90-amp capability: Handles substantial motor loads reliably within Freedom Series applications.
- Wide voltage compatibility: Rated for operation up to 600V across multiple horsepower ranges.
- Dual-frequency coil: Accepts 110V 50 Hz or 120V 60 Hz inputs for control flexibility.
- Bi-metallic overload relay: Ensures thermal protection for motors during overload events.
- Open-type construction: Suitable for integration into motor control centers or custom enclosures.
- Three-pole configuration: Maintains balanced protection and control of three-phase electrical systems.
The AN16KN0A delivers the reliability and precision required for dependable motor control in industrial three-phase power applications.
