ANN-80-W | Fire-Lite 80-Character LCD Annunciator, White, Remote Fire Alarm Display
- Regular price
- $815.00
- Sale price
- $815.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: ANN-80-W
Description

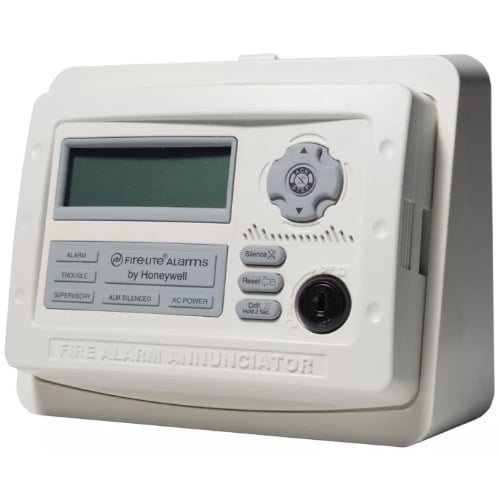

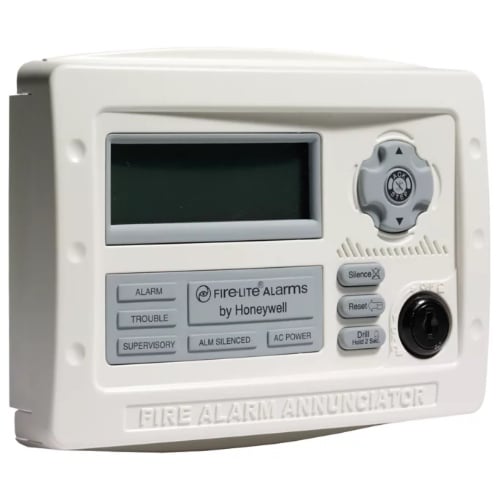

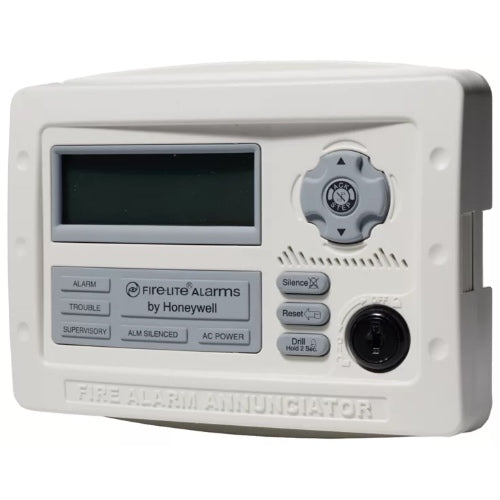

The Fire-Lite ANN-80-W is an 80-character LCD serial annunciator with a backlit white enclosure. It mimics the display and functions of the host fire alarm control panel, providing system indicators and control capabilities. Designed for flexible mounting, it offers remote monitoring and operation up to 6,000 feet from the panel.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Fire-Lite Alarms by Honeywell |
| Category | Fire Safety |
| Part Number | ANN-80-W |
| Subcategory | Annunciator |
| Display | Backlit 80-character LCD (20 x 4 lines) |
| Control Functions | Acknowledge, Signal Silence, Drill, Reset |
| Keyswitch | Locks control switches and enclosure |
| System Indicators | AC Power, Alarm, Trouble, Supervisory, Silenced |
| Communication | Two-wire ANN-BUS serial interface |
| Power Source | Host FACP or remote UL-listed power supply |
| Mounting Options | Surface or semi-flush (single, double, or 4" box) |
| Enclosure Supervision | Tamper-monitored |
| Distance from FACP | Up to 6,000 ft (1,800 m) |
| Max Units per Panel | Up to 8 ANN-80 annunciators |
| Backlight Behavior | Turns off during AC loss (returns in alarm) |
| Dimensions | Compact enclosure design |
| Weight | Approx. 1 lb |
Information About ANN-80-W
The ANN-80-W is part of Fire-Lite’s ANN-BUS line of serial annunciators, engineered for compatibility with Fire-Lite control panels. It provides clear English-language display of point, zone, and system status, including alarm, trouble, supervisory, and silenced conditions. Equipped with dedicated control switches and a secure keyswitch lockout, it ensures both accessibility and protection against unauthorized use. This model is housed in a compact white enclosure, suitable for surface or semi-flush mounting.
Key Features
- LCD Display: Backlit 80-character (20 x 4 lines) LCD replicates FACP information.
- System Indicators: Shows AC power, alarm, trouble, supervisory, and silence conditions.
- Control Switches: Supports acknowledge, signal silence, drill, and system reset.
- Keyswitch Security: Enables/disables controls and provides enclosure lockout.
- Flexible Mounting: Compatible with wall, single, double, or 4" square electrical boxes.
- Long-Distance Operation: Functions up to 6,000 ft (1,800 m) from the host panel.
- Tamper Supervision: Enclosure monitored for unauthorized access.
- Power Options: Powered from the host FACP or a UL-listed auxiliary supply.
The ANN-80-W delivers the reliability and precision required for remote fire alarm annunciation and system control.
