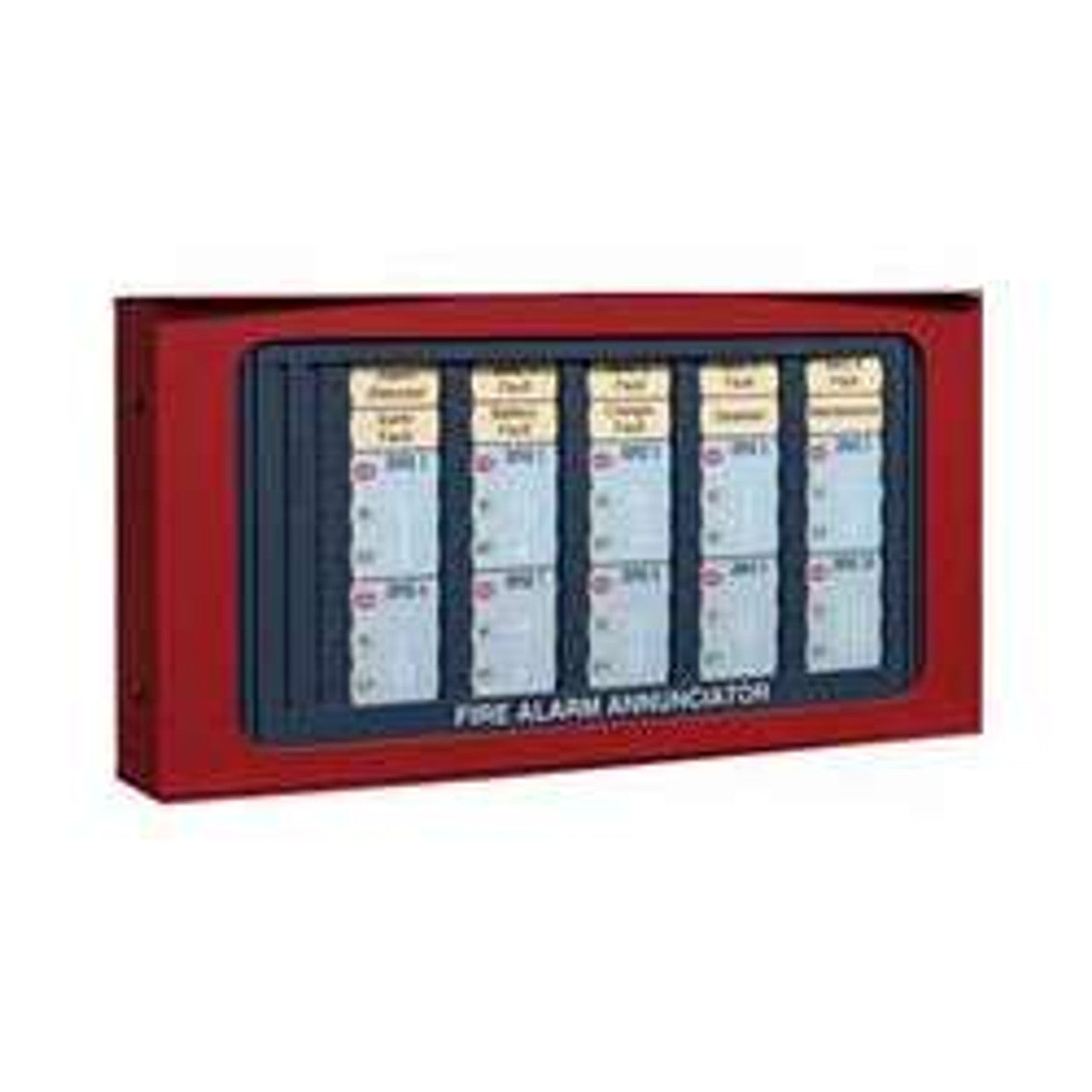

ANN-LED-W | Fire-Lite Annunciator with 3-LED Indicators for Zone Status
- Regular price
- $557.00
- Sale price
- $557.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: ANN-LED-W
Description
The Fire-Lite ANN-LED-W is a compact annunciator module designed to provide LED-based system status indication for Fire Alarm Control Panels (FACPs). Featuring three LEDs per zone—Alarm, Trouble, and Supervisory—it allows clear visual monitoring of up to ten input zones or addressable points. This white-finished module integrates easily with compatible Fire-Lite systems, offering dependable remote annunciation in fire alarm installations.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Fire-Lite |
| Category | Fire Safety |
| Part Number | ANN-LED-W |
| Subcategory | Annunciator |
| Operating Voltage | 24 VDC nominal |
| Current Draw | Panel dependent (powered by host FACP or remote 24 VDC supply) |
| Communication Protocol | ANN-Bus, two-wire serial interface |
| Indicators | Three LEDs per zone: Alarm (red), Trouble (yellow), Supervisory (yellow) |
| Supported Zones/Points | Up to 10 zones or addressable points |
| Max Distance from Panel | 6,000 ft (1,829 m) |
| Max Devices per ANN-Bus | 8 |
| Compatibility | ES-200X, ES-50X, MS-9600(UD)LS, MS-9200UDLS, MS-9050UD, MS-5UD, MS-10UD, MRP-2001, MRP-2002 |
| Listings & Approvals | UL, ULC, FM, CSFM, MEA |
| Enclosure Color | White |
| Dimensions | 1.77 × 10.04 × 5.16 in (45 × 255 × 131 mm) |
| Weight | 2 lbs (0.9 kg) |
Information About ANN-LED-W
The ANN-LED-W is part of Fire-Lite’s ANN-Bus series of remote annunciators. It connects directly to compatible FACPs through a two-wire serial communication interface and uses an additional two wires for 24 VDC power. The device supports up to eight ANN-Bus modules per panel and can be located up to 6,000 feet away, enabling flexible installation across large facilities. Its three-LED-per-zone design provides instant visibility of alarm, supervisory, and trouble conditions, ensuring compliance with ULC requirements and enhancing system diagnostics.
Key Features
- LED-Based Indication: Provides Alarm (red), Trouble (yellow), and Supervisory (yellow) LEDs for up to 10 input zones.
- ANN-Bus Communication: Connects to FACPs via two-wire serial interface with an additional two wires for power.
- Extended Distance: Can be installed up to 6,000 ft (1,829 m) away from the host panel.
- Wide Compatibility: Works with ES-200X, ES-50X, MS-9600LS, MS-9200UDLS, MS-9050UD, MS-5UD, MS-10UD, MRP-2001, and MRP-2002.
- Multiple Device Support: Up to eight ANN-Bus devices may be connected per panel.
- Compact Design: Lightweight and easy to mount for flexible integration.
- UL/ULC Listed: Meets regulatory standards for safety and reliability.
The ANN-LED-W delivers the reliability and precision required for remote annunciation of system status in commercial fire alarm systems.
