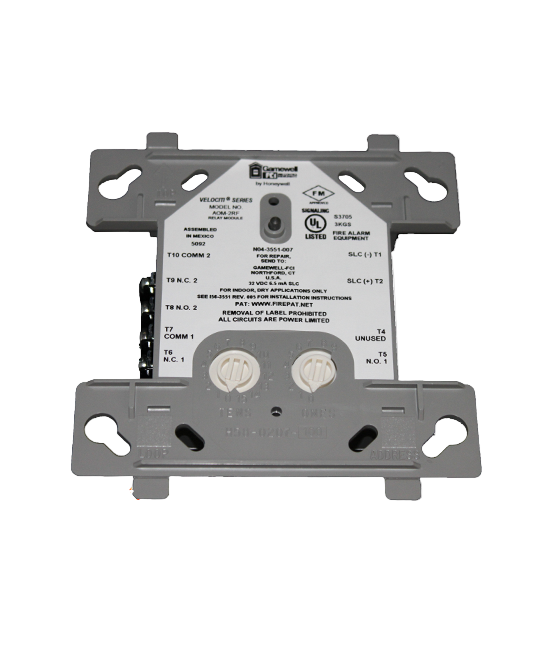

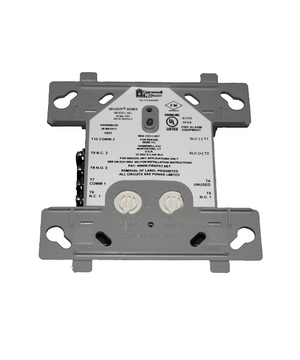

AOM-2RF-BP | Gamewell Velociti Relay Module (10-Pack, Dual Form-C Contacts)
- Regular price
- $1,125.00
- Sale price
- $1,125.00
- Regular price
-
$0.00
Couldn't load pickup availability
Product Description P/N: AOM-2RF-BP
Description
The Gamewell AOM-2RF-BP is a 10-pack of analog addressable relay modules from the Velociti® Series, designed for use with Gamewell-FCI fire alarm control panels. Each module provides two isolated sets of Form-C contacts for reliable switching of discrete circuits by coded panel commands.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Gamewell-FCI |
| Category | Flame Safety Products |
| Part Number | AOM-2RF-BP |
| Subcategory | Relay Module |
| Quantity | Pack of 10 units |
| Module Type | Addressable Relay Module |
| Contact Type | Two sets of Form-C contacts (simultaneous transfer) |
| Addressing | Rotary decimal switch (01–159) |
| Indicators | Bi-color LED (green = polling, red = alarm) |
| Operating Voltage | 15–32 VDC |
| Supervisory Current | 0.000375 A |
| Alarm Current | 0.0065 A |
| Operating Temp | 32°F to 120°F (0°C to 49°C) |
| Humidity Range | 10–93% non-condensing |
| Mounting | 4" square junction box, 2 1/8” deep |
| Protocol | Velociti® Series high-speed communication |
| Circuit Supervision | Relay contacts not supervised |
| Applications | Switching of external circuits by fire alarm control |
| Weight (per unit) | 0.25 lbs (approx.) |
| Total Weight (10-pack) | 2.5 lbs (approx.) |
Information About AOM-2RF-BP
The AOM-2RF-BP is part of Gamewell’s Velociti® Series, which utilizes a high-speed communication protocol for faster response between modules and control panels. Each relay module supports two sets of Form-C contacts that operate simultaneously, with panel-controlled LED indicators for status monitoring. Designed for easy installation, the AOM-2RF mounts in a standard 4-inch square junction box and allows rotary switch addressing from 01 to 159. This bulk pack of 10 modules is well-suited for large-scale fire alarm installations requiring multiple relay outputs.
Key Features:
- Dual Form-C Contacts: Provides two isolated sets of contacts for versatile circuit control.
- High-Speed Protocol: Velociti® Series communication increases system response time.
- Panel-Controlled LED: Flashes green during polling, steady red in alarm condition.
- Rotary Addressing: Decimal switches support addressing from 01 to 159.
- Compact Design: Fits easily into a 4" square junction box (2 1/8” deep).
- Low Current Draw: Supervisory current of only 0.000375 A.
- Wide Environmental Range: Operates from 32°F to 120°F with up to 93% RH.
- Bulk Packaging: Supplied as a 10-pack for cost-efficient multi-point installations.
The AOM-2RF-BP delivers the reliability and speed required for scalable fire alarm relay control.
