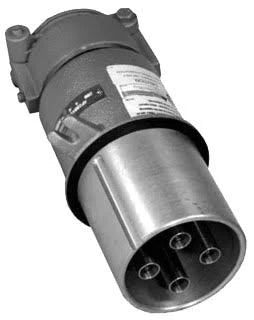

AP20044E | Appleton 200A AP Series 4-Pole 4-Wire 600VAC/250VDC Grounding Style 1 Industrial Plug
- Regular price
- $749.00
- Sale price
- $749.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: AP20044E
Description
The Appleton AP20044E is a heavy-duty 200A industrial plug from the AP Series, engineered for three-phase grounding applications requiring secure, high-capacity connections. Rated for 600 VAC and 250 VDC operation at 50–400 Hz, this 4-pole, 4-wire plug is constructed from copper-free aluminum to ensure durability in harsh environments. Designed for demanding industrial systems, it supports large wire sizes and reliable pressure-wire terminations.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Appleton |
| Category | Electrical Products |
| Part Number | AP20044E |
| Subcategory | Plug/Receptacle |
| Type | 3-Phase Grounding Style 1 |
| Series | AP Series |
| Voltage Rating | 250/600 VAC/VDC |
| Amperage Rating | 200 A |
| Frequency Rating | 50–400 Hz |
| Number of Poles | 4 |
| Number of Wires | 4 |
| Material | Copper-Free Aluminum |
| Terminal Type | Pressure Wire |
| Wire Size Compatibility | 2/0 AWG – 250 MCM |
| NEMA Rating | 3, 3R, 4, 4X |
| Temperature Rating | –40°F to 225°F |
| Phase | 3-Phase |
| Dimensions | 11.94 in L × 6.81 in W |
Information About AP20044E
The AP20044E belongs to Appleton’s AP Series of Powertite connectors, known for their rugged construction and suitability for industrial and hazardous environments. As a Grounding Style 1 plug, it provides a secure grounding path along with four-pole, four-wire connectivity suitable for three-phase applications. Its copper-free aluminum housing enhances corrosion resistance while maintaining mechanical strength, supporting safe operation in chemically aggressive or outdoor environments. With approvals for NEMA 3, 3R, 4, and 4X enclosures and a wide operational temperature range, the AP20044E integrates seamlessly into high-demand power distribution systems requiring reliability, environmental protection, and robust electrical performance.
Key Features:
- 200A high-capacity rating: Supports heavy industrial loads.
- 600 VAC / 250 VDC capability: Suitable for versatile AC and DC power systems.
- Grounding Style 1: Ensures a dedicated equipment grounding path.
- 4-pole, 4-wire configuration: Supports three-phase systems with an additional grounding conductor.
- Copper-free aluminum body: Superior corrosion resistance for harsh environments.
- Pressure-wire terminals: Provide secure and reliable conductor termination.
- Wide temperature range: Operates from –40°F to 225°F for extreme conditions.
- NEMA 3/3R/4/4X rated: Protects against dust, water, and corrosive exposure.
The AP20044E delivers the reliability and precision required for heavy-duty industrial and hazardous-location power connections.
