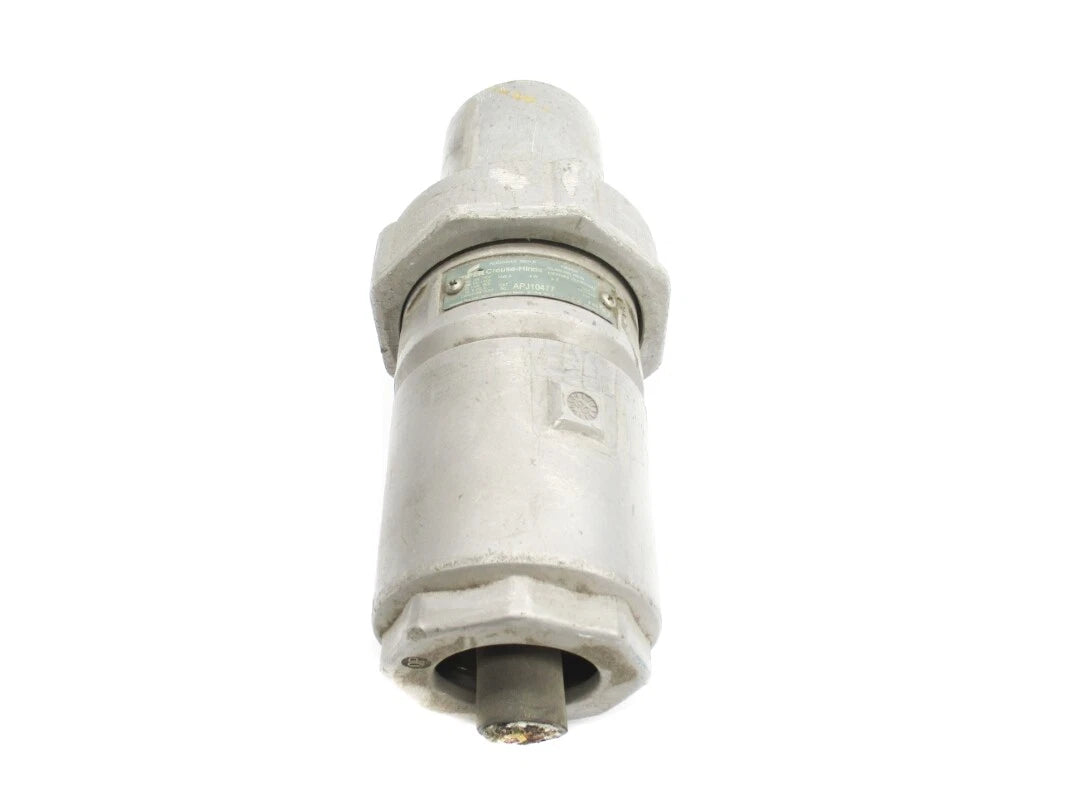

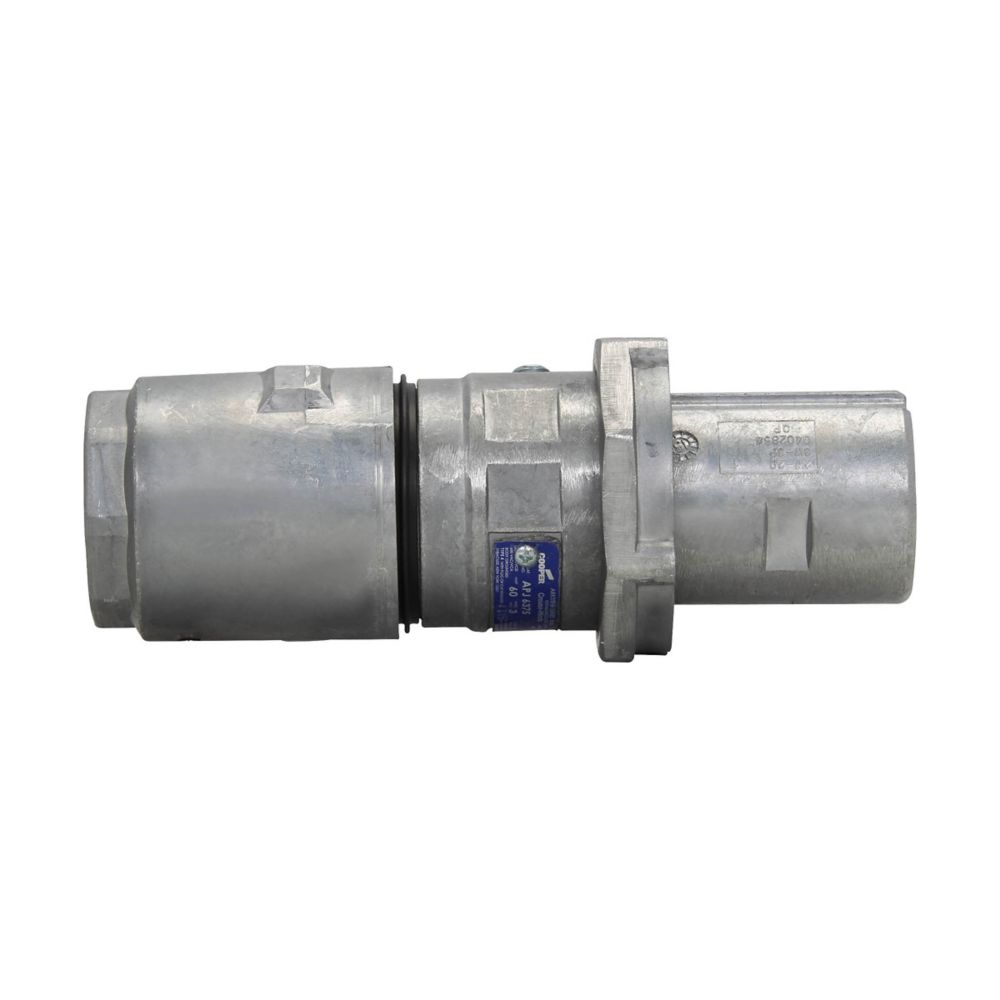

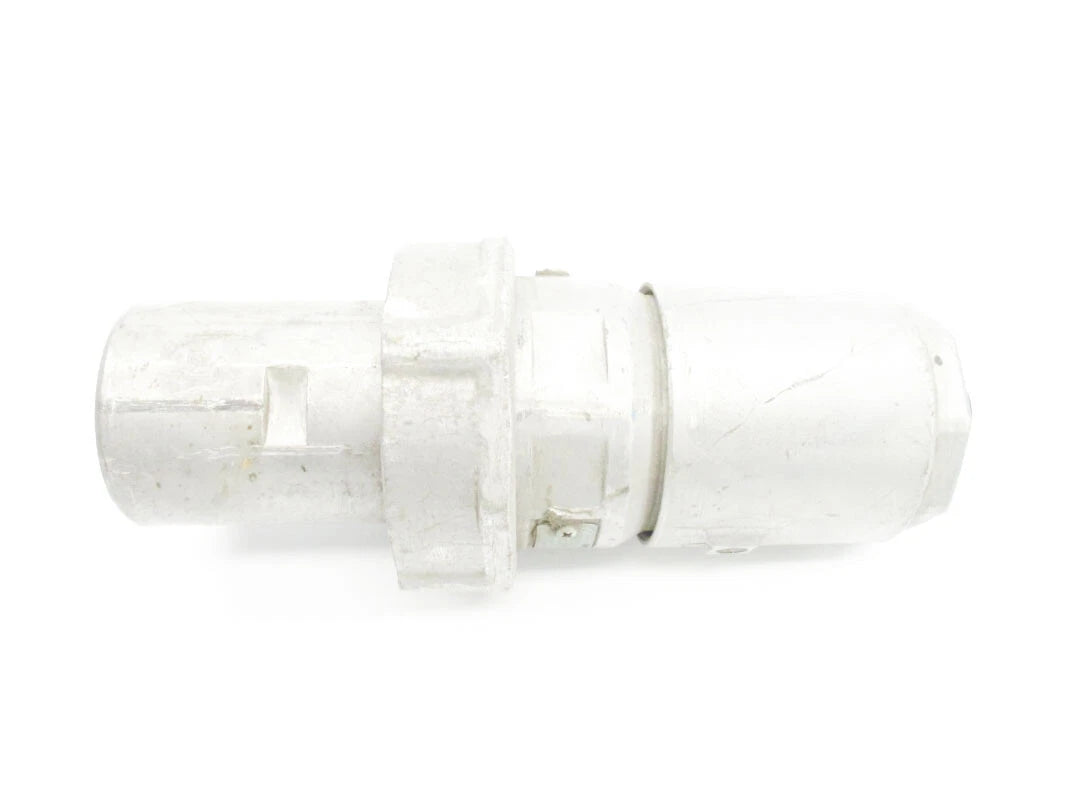

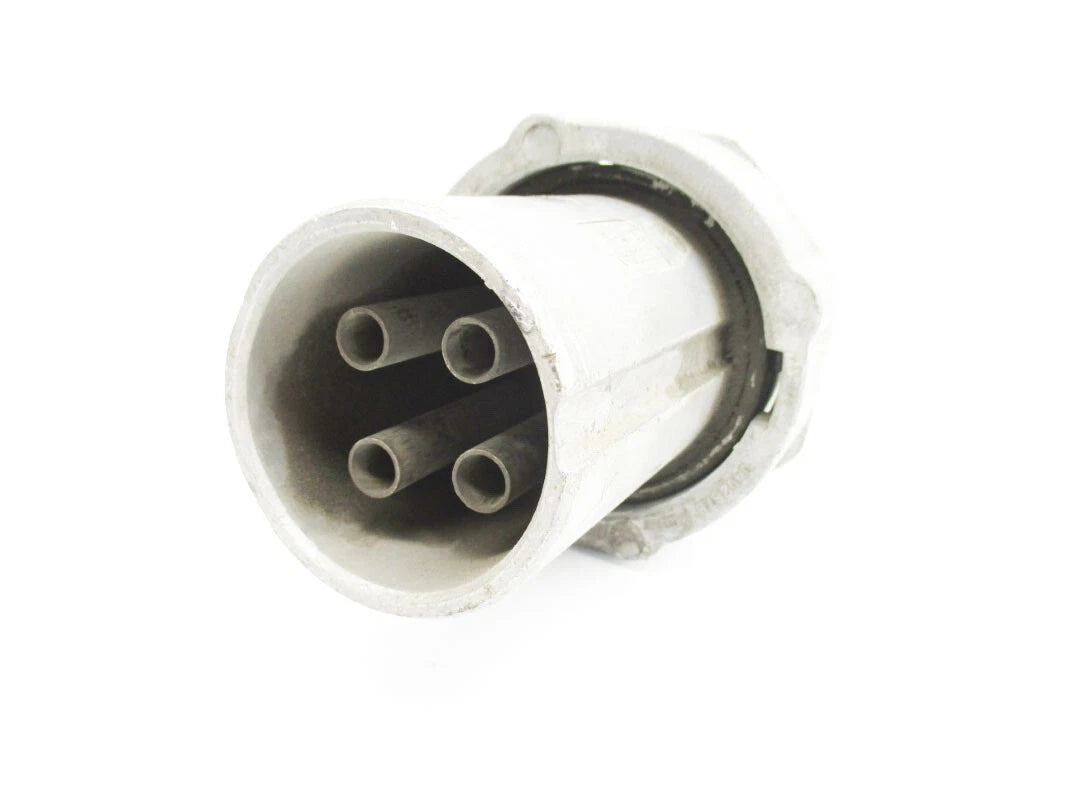

APJ10477 | Eaton 100A 600V Four-Pole NEMA 4 Arktite Pin And Sleeve Plug
- Regular price
- $499.00
- Sale price
- $499.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: APJ10477
Description
The Eaton APJ10477 is a heavy-duty four-pole Arktite plug designed for secure power connections in industrial applications requiring watertight and corrosion-resistant performance. Constructed from copper-free aluminum, it provides a polarized, grounded interface suitable for conveyor systems, motors, generator sets, and similar equipment.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Eaton |
| Category | Electrical Products |
| Part Number | APJ10477 |
| Subcategory | Plug / Receptacle |
| Family | ARKTITE |
| Type | APJ |
| Group | Plugs |
| Suitable For | AR1041, AR1047 |
| NEMA Rating | NEMA 4 |
| Grounding Style | Style 1 |
| Configuration | Four-Wire, Four-Pole |
| Device Type | Pin and Sleeve Plug |
| Frequency Rating | 50–400 Hz |
| Material | Copper-Free Aluminum |
| Area Classification | Ordinary / Non-Hazardous Locations |
| Standards Type | NEC / CEC |
| Amperage Rating | 100 A |
| Voltage Rating | 600 V |
| Cable Diameter Range | 0.875–1.70 in |
| Dimensions (H × W × L) | 4.125 × 4.125 × 10.125 in |
Information About APJ10477
The APJ10477 is part of Eaton’s Arktite APJ series, engineered for rugged industrial service where watertight, grounded power connections are required. With a four-wire, four-pole configuration, it supports polarized connections for motors, conveyors, welders, compressors, and generator sets. Its copper-free aluminum construction and NEMA 4 enclosure rating provide strong resistance to corrosion, moisture, and environmental exposure, making it suitable for both indoor and outdoor use. Designed to meet NEC and CEC requirements, the plug offers reliable performance at 100A and 600V for ordinary location electrical systems.
Key Features
- Four-pole configuration: Supports polarized industrial power connections for motors, conveyors, and generator sets.
- NEMA 4 enclosure: Provides watertight and corrosion-resistant protection for harsh indoor or outdoor applications.
- Copper-free aluminum body: Ensures durability and minimizes corrosion in demanding environments.
- Grounding Style 1 design: Delivers secure grounding for safe electrical operation.
- Compatible with AR1041 and AR1047: Integrates seamlessly with Eaton Arktite receptacles.
- Wide cable range: Accepts cables from 0.875 to 1.70 inches for installation flexibility.
- 100A, 600V rating: Suitable for high-capacity industrial power circuits.
- NEC/CEC compliant: Meets major safety standards for ordinary location installations.
The APJ10477 delivers the reliability and precision required for safe, watertight, and durable industrial plug connections in demanding environments.
