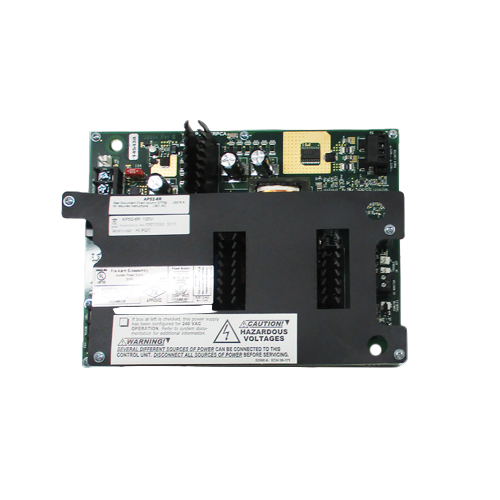

APS2-6R | Notifier 24VDC 150W Auxiliary Power Supply (6A Alarm / 4A Continuous)
- Regular price
- $562.00
- Sale price
- $562.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: APS2-6R
Description
The Notifier APS2-6R is a 150-watt auxiliary power supply designed to provide 24 VDC of filtered DC power for peripheral devices on ONYX Series fire alarm control panels. It delivers three output circuits rated for 6.0 amps in alarm and 4.0 amps continuous operation.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Notifier |
| Category | Flame Safety Products |
| Part Number | APS2-6R |
| Subcategory | Power Supply |
| Power Rating | 150 W |
| Output Voltage | 24 VDC filtered |
| Output Current | 6.0 A alarm, 4.0 A continuous |
| Number of Circuits | 3 output circuits |
| AC Input (APS2-6R) | 120 VAC, 50/60 Hz, 2.9 A |
| AC Input (APS2-6RE) | 220–240 VAC, 50/60 Hz, 1.5 A |
| DC Secondary Input | 24 VDC nominal |
| Relay Contacts | AC Fail supervision via SLC |
| Fuse Protection | 32 VDC, 10.0 A automotive minifuse |
| Indicators | Diagnostic trouble LED |
| Supervision | Battery voltage, low battery disconnect, trouble bus |
| Terminal Capacity | Up to 12 AWG (3.1 mm²) |
| Dimensions | 8.625" x 6.625" x 2.375" (21.91 x 16.83 x 6.03 cm) |
| Weight | 2 lbs (0.91 kg) |
| Certifications | UL Listed (S635), FM Approved, CSFM (7315-0028:248), FDNY COA #6028 |
| Mounting | CAB-3 and CAB-4 Series cabinets |
Information About APS2-6R
The APS2-6R is a compact, UL 864 Ninth Edition compliant auxiliary power supply built for fire alarm and life safety systems. It supports both 120 VAC and 220/240 VAC inputs and incorporates overload protection, brown-out circuitry, and diagnostic trouble LEDs. Designed to integrate seamlessly with Notifier’s ONYX Series, it shares the battery and charger circuits with the control panel, ensuring system reliability. The APS2-6R mounts in standard CAB-3 or CAB-4 Series enclosures and can also be used with legacy panels.
Key Features:
- High Output Capacity: 150-watt design with three 24 VDC outputs at 6.0 A alarm / 4.0 A continuous.
- AC Input Flexibility: Operates on 120 VAC or 220/240 VAC at 50/60 Hz.
- Built-in Protections: Overload and brown-out circuitry for system safety.
- Trouble Monitoring: Diagnostic LED and supervised trouble bus integration.
- Battery Supervision: Includes low battery disconnect and monitoring.
- Flexible Installation: Mounts in CAB-3 and CAB-4 series cabinets.
- Heavy-Duty Terminals: Accepts up to 12 AWG wiring for secure connections.
- Certified Compliance: UL, FM, CSFM, and FDNY approved for fire system use.
The APS2-6R delivers the reliable auxiliary power capacity required for scalable fire alarm control systems.
