AR3100 | Schneider Electric Panel Accessories

Description

Technical Specifications

Information About AR3100

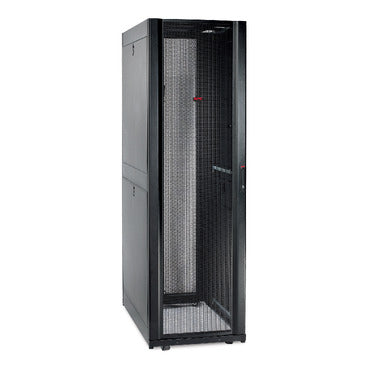

The AR3100 is an enclosure from the NETSHELTER SX series, designed to provide secure and organized housing for electrical and IT equipment. It falls under the category of Panel Accessories and is specifically classified as an enclosure. The AR3100 is engineered to meet the needs of various industrial, commercial, and data center environments, offering a robust and versatile solution for protecting critical equipment. The enclosure's design is focused on ensuring ease of installation, durability, and the ability to manage a range of devices while maintaining effective airflow and cable management.

Size and Dimensions
The AR3100 is a 42U enclosure, which provides ample space for housing various types of equipment, including servers, networking devices, and other rack-mounted hardware. The dimensions of the enclosure are 1991 mm in height, 600 mm in width, and 1070 mm in depth, making it suitable for applications where substantial rack space is required while still maintaining a manageable footprint. The 42U size allows for the accommodation of a large number of rack-mounted devices, providing flexibility for expanding infrastructure or consolidating multiple systems within a single enclosure.

Doors and Access Features

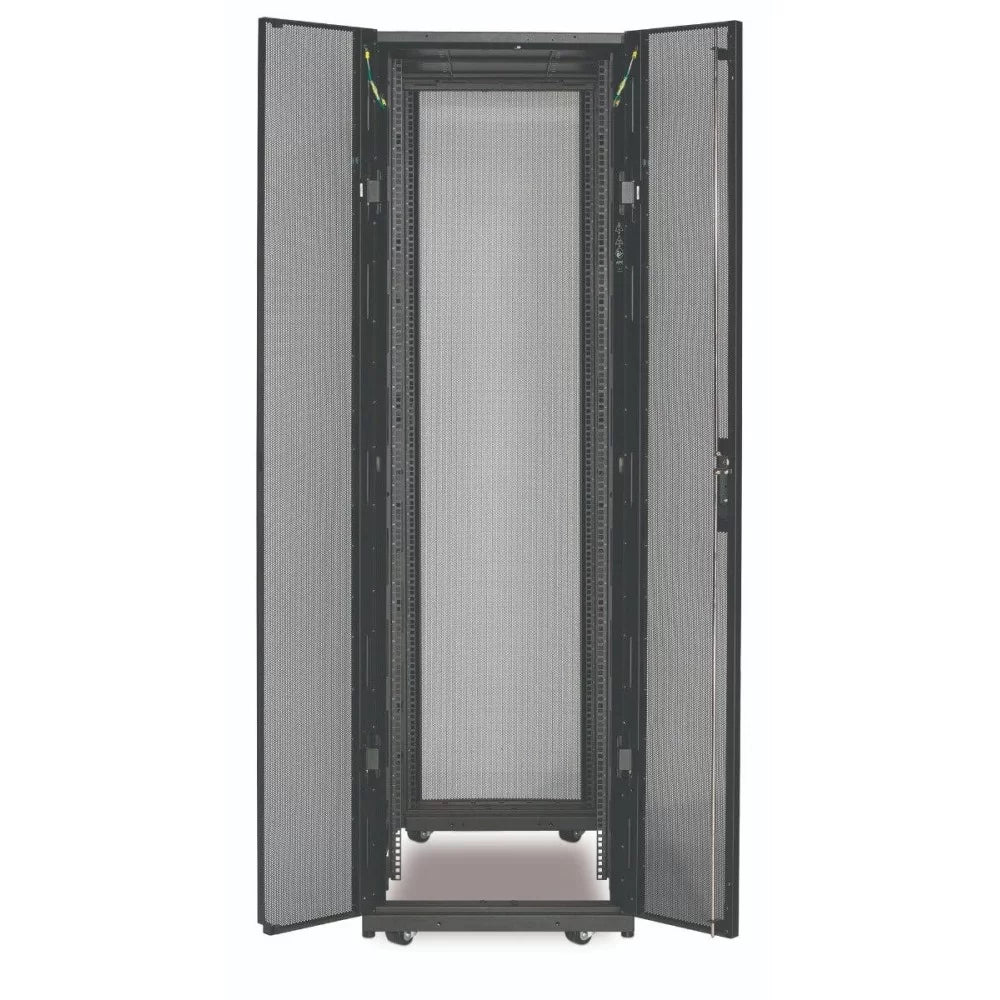

One of the key features of the AR3100 is its split rear door design. The split rear doors are engineered to provide convenient access to the rear of the enclosure while minimizing the amount of space required for door clearance. This is particularly useful in environments with limited space, where full-length doors would be impractical. The split design allows for easier cable management and access to rear-mounted equipment, improving overall system maintenance and organization.

In addition to the split rear doors, the AR3100 is designed with sides, which add to the enclosure's stability and security. The inclusion of sides helps to create a fully enclosed system, protecting the equipment from dust and other environmental factors that could affect performance. The side panels also contribute to improved airflow management, ensuring that the internal components remain cool and operate within their specified temperature ranges.

Durability and Construction
The AR3100 is constructed with a robust design that ensures long-term durability and reliability. It is designed to support the weight of heavy equipment while maintaining structural integrity, making it suitable for environments that require consistent performance under demanding conditions. The black color provides a neutral aesthetic, allowing the enclosure to blend into a variety of environments, from data centers to industrial control rooms.

The enclosure is built to withstand typical operational stresses, such as vibration and mechanical impact, ensuring that the equipment housed inside remains protected from external factors. Additionally, the enclosure’s construction supports the integration of cable management systems and power distribution units (PDUs), further enhancing its functionality and adaptability to different application requirements.
