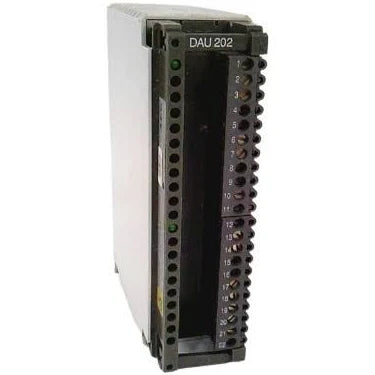

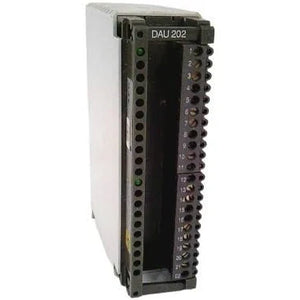

AS-BDAU-202 | Schneider Electric Analog Output Module For 984 Series PLC Systems
- Regular price
- $579.00
- Sale price
- $579.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: AS-BDAU-202
Description
The Schneider Electric AS-BDAU-202 is an analog output module designed to convert PLC digital signals into precise voltage or current outputs. It supports two output channels, enabling accurate control of external devices in industrial automation environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | PLCs/Machine Control |
| Part Number | AS-BDAU-202 |
| Subcategory | VDC Logic I/O Module |
| Product Type | Analog Output Module |
| Series | 984 Series |
| Function | Converts PLC digital signals to analog voltage or current outputs |
| Analog Output Type | Voltage and Current |
| Voltage Output Range | +10 VDC |
| Current Output Range | +20 mA |
| Number Of Channels | 2 |
| Resolution | 11 bits + sign (2048 steps) |
| Output Signal Form | Analog (Voltage/Current) |
| Application | External device control in automation systems |
| Interface Type | PLC-to-analog signal conversion |
Information About AS-BDAU-202
The AS-BDAU-202 is an analog output module from the Schneider Electric 984 Series engineered to provide accurate conversion of PLC-generated digital data into analog current or voltage signals. Its robust design supports integration into industrial control architectures requiring stable, noise-resistant analog outputs for coordinated equipment operation. The module connects directly to automation controllers, enabling seamless electrical interfacing through its two independent output channels. Typical applications include regulating actuators, drives, and other analog-driven devices where precise signal generation is essential for process accuracy.
Key Features:
- Dual Analog Output Channels: Allows simultaneous control of two external devices using independent voltage or current signals.
- Voltage And Current Output Capability: Supports +10 VDC and +20 mA ranges for broad compatibility across industrial actuators and controllers.
- High-Resolution Conversion: Provides 11-bit resolution plus sign (2048 steps) for accurate and stable analog output performance.
- Direct PLC Integration: Designed for seamless connection with 984 Series PLC systems to support reliable automation workflows.
- Signal Conversion Functionality: Converts digital PLC values into continuous analog signals for fine-tuned device regulation.
- Industrial-Grade Construction: Built to withstand demanding automation environments with consistent and predictable output behavior.
- Flexible Application Use: Ideal for controlling drives, meters, actuators, and instrumentation requiring analog input.
- Channel Independence: Each output channel operates individually, allowing differentiated control strategies within one module.
The AS-BDAU-202 delivers the reliability and precision required for stable analog control across advanced industrial automation systems.
