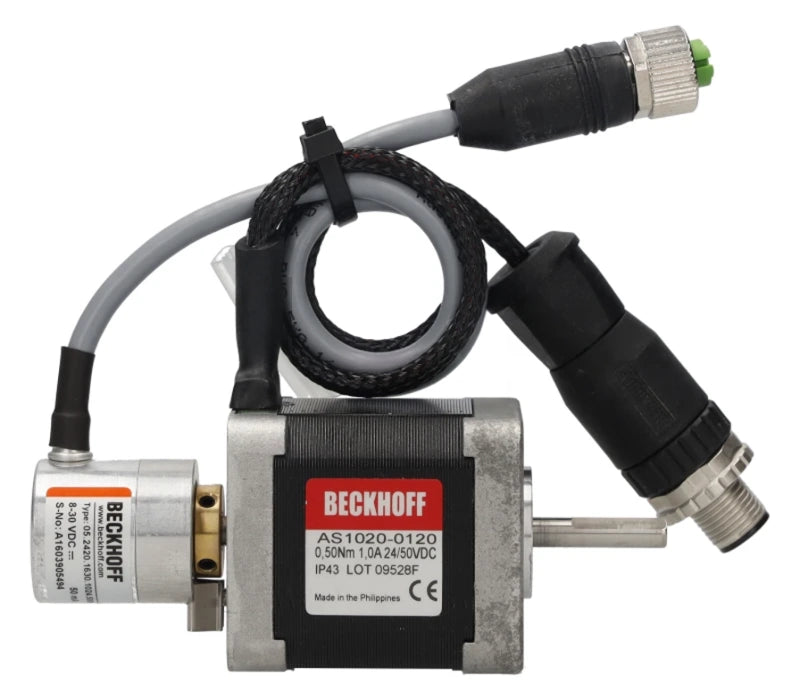

AS1020-0120 | Beckhoff 0.5 Nm Stepper Motor 24–48 VDC
- Regular price
- $599.00
- Sale price
- $599.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: AS1020-0120
Description
The Beckhoff AS1020-0120 is a compact stepper motor designed for precise positioning and motion control applications. Operating on 24–48 VDC, it provides a holding torque of 0.50 Nm and 1.0 A current, combining efficiency and reliability in a NEMA17-sized frame for industrial automation systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Beckhoff |
| Category | Industrial Automation |
| Part Number | AS1020-0120 |
| Subcategory | Stepper Motor |
| Voltage Range | 24…48 V DC |
| Holding Torque (MH) | 0.50 Nm |
| Rated Current (IO) | 1.0 A |
| Step Angle | 1.8° (200 steps per revolution) |
| Incremental Encoder | 1024 increments |
| Connection Method | M12 cable bundle |
| Flange × Length | 42 mm × 48 mm |
| Flange Size | NEMA17 |
| Operating Temperature | 0°C to +40°C |
| Approvals | CE |
| Construction Type | 2-phase hybrid stepper motor |
| Shaft Diameter | 5 mm |
| Mounting Dimensions (key values) | A: 22 mm, B: 5 mm, D: 24 mm, K: 48 mm, L: 31 mm, M: 33 mm, O: 24 mm, R: 42 mm |
| Protection Rating | IP20 |
| Product Dimensions (L × W × H) | 4.20 × 10.50 × 10.50 cm |
| Weight | 0.40 kg (0.88 lbs) |
Information About AS1020-0120
The AS1020-0120 is part of Beckhoff’s AS1000 series of stepper motors, developed for use in compact motion systems that require high positioning accuracy and repeatability. This 2-phase hybrid stepper motor operates with a voltage range of 24–48 VDC and provides a holding torque of 0.50 Nm, making it suitable for precise automation tasks. Its integrated 1024-increment encoder supports detailed feedback for closed-loop control, enhancing stability and precision during motion. The motor features an M12 cable bundle connection for reliable interfacing and a 42 mm NEMA17 flange that ensures compatibility with various mechanical mounting configurations.
Key Features:
- Compact Design: NEMA17-size stepper motor with a 42 mm flange and 48 mm length, suitable for space-limited installations.
- Precise Positioning: Step angle of 1.8° with 200 steps per revolution provides fine motion control for automation applications.
- Integrated Encoder: Equipped with a 1024-increment feedback encoder for enhanced positional accuracy and smooth operation.
- Wide Voltage Range: Operates between 24 and 48 VDC for flexibility across various control systems.
- Robust Performance: Delivers 0.50 Nm holding torque and 1.0 A current for reliable torque delivery in continuous duty cycles.
- Durable Construction: Designed with industrial-grade materials and M12 cable connection for secure operation.
- Temperature Tolerance: Operates safely in ambient conditions from 0°C to +40°C.
- Compliance and Certification: CE-marked, ensuring compliance with European safety and EMC standards.
The AS1020-0120 delivers the reliability and precision required for step-based motion control, automation positioning, and servo-assisted drive applications.
